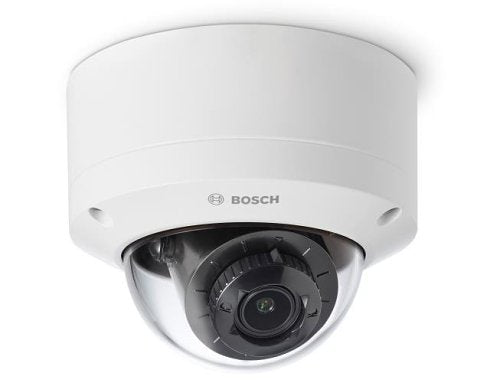

Bosch F.01U.394.559 ir dome camera, 2MP
Free Delivery
£
892
24
(Incl. VAT)
About this product
Bosch F.01U.394.559 is an ir dome camera from the outdoor 5100i IR range.
The camera is a versatile and professional surveillance camera for outdoor monitoring. It delivers exceptional image quality, starlight performance and High Dynamic Range at resolution HD 1080p for highly detailed image for demanding security and surveillance network requirements. Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts.
The camera offers a 1/2.8’’ sensor and HDR technology at HD 1080p resolution with a built-in active infrared illuminator that provides high performance in extreme low-light environments. The modular structure design uses a click and rotate mechanism on mounting plate or base that requires no hardware to secure the camera to housing for fast installation, including compatibility with various mounting options.
Key features
- 1080p60 for highly detailed images
- Starlight camera technology with excellent low-light performance
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in intelligent IR illuminator with up to 45 m (148 ft) viewing distance
£
892
24
Price
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.394.559
Product Series
outdoor 5100i IR
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/1.6
Maximum Frame Rate
60fps
Minimum Focal Length
3.20mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
3.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
45.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-40°C
Operating Humidity
100%
Exposure
Longest Shutter Speed
1/25 Second
Shortest Shutter Speed
1/15000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3.2-10.5mm
Lens Included
Yes
Maximum Focal Length
10.50mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Waterproof
Form Factor
Dome
Height
122.00mm
Weight
1.13kg
Power description
Input Voltage
12V DC, 24V AC
Product information
Diameter
148.00mm
Mount Type
Ceiling Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1920 x 1080
Miscellaneous
Environmental status
Yes
Features
Alarm Triggering, Audio Detection, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Electronic Image Stabilization, Human Detection, Mirror, SD Card Local Storage, Vehicle Detection
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
12V DC, 24V AC
Weight
1.13kg
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.394.559 |
| Product Series | outdoor 5100i IR |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 3.20mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 3.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 45.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 1/25 Second |
|---|---|
| Shortest Shutter Speed | 1/15000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.2-10.5mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 10.50mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Height | 122.00mm |
| Weight | 1.13kg |
Power description
| Input Voltage | 12V DC, 24V AC |
|---|
Product information
| Diameter | 148.00mm |
|---|---|
| Mount Type | Ceiling Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1920 x 1080 |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Alarm Triggering, Audio Detection, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Electronic Image Stabilization, Human Detection, Mirror, SD Card Local Storage, Vehicle Detection |
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC, 24V AC |
|---|---|
| Weight | 1.13kg |
Bosch F.01U.394.559 ir dome camera, 2MP
