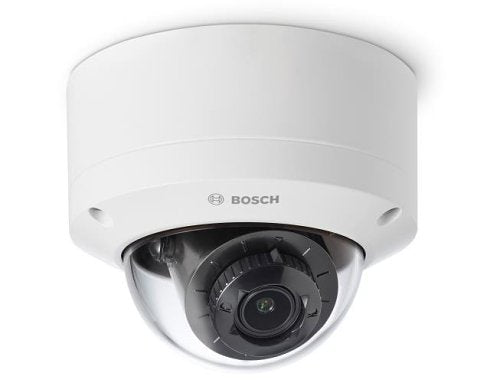

Bosch F.01U.394.561 ir dome camera, 5MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.394.561 is an ir dome camera from the outdoor 5100i IR range.
The camera is a versatile and professional surveillance camera for outdoor monitoring. It delivers exceptional image quality, starlight performance and High Dynamic Range at 5 MP resolution for highly detailed image for demanding security and surveillance network requirements. Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts.
The cameras offer a 1/2.7’’ sensor and HDR technology at 5 MP resolution with a built-in active infrared illuminator that provides high performance in extreme low-light environments. The modular structure design uses a click and rotate mechanism on mounting plate or base that requires no hardware to secure the camera to housing for fast installation, including compatibility with various mounting options.
Key features
- 5 MP for highly detailed images
- Starlight camera technology with excellent low-light performance
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in intelligent IR illuminator with up to 45 m (148 ft) viewing distance
-
Download
- F.01U.394.561 — User Manual
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.394.561 |
| Product Series | outdoor 5100i IR |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 5MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.20mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 3.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 45.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2592 x 1944 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 1/25 Second |
|---|---|
| Shortest Shutter Speed | 1/15000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.2-10.5mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 10.50mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Height | 122.00mm |
| Weight | 1.13kg |
Power description
| Input Voltage | 12V DC, 24V AC |
|---|
Product information
| Diameter | 148.00mm |
|---|---|
| Mount Type | Surface Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Alarm Triggering, Audio Detection, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Electronic Image Stabilization, Human Detection, Mirror, SD Card Local Storage, Vehicle Detection |
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC, 24V AC |
|---|---|
| Weight | 1.13kg |
