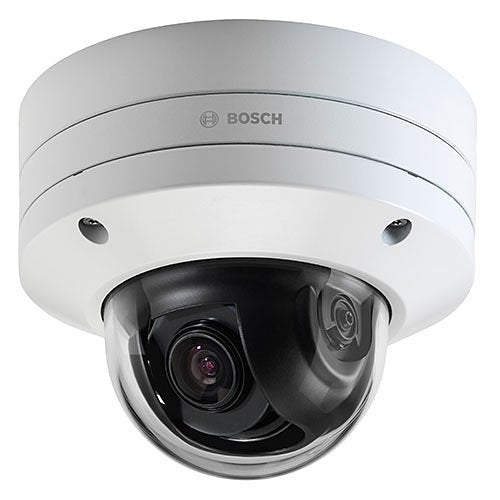

Bosch F.01U.396.604 network camera, 8MP
Free Delivery
£
1,599
56
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.396.604 is a network camera from the IP starlight 8000i range.
The FLEXIDOME IP starlight 8000i is a 2MP performance line camera with starlight performance and High Dynamic Range. It offers remote commissioning for easy installation and configuration via a PC or mobile device. The camera provides fast performance with 60 frames per second, exceptional low-light sensitivity, and high dynamic range mode.
It also features nine scene modes for optimized image settings in various applications.
Key features
- Wireless or remote configuration and commissioning with the Project Assistant app. Pan, Tilt, Roll and Zoom (PTRZ) to set the camera to the required field of view, without having to touch the camera or lens
- 1/1.8 4K UHD sensor and starlight technology to provide highly detailed images even in extreme low-light situations
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in Intelligent Video Analytics with object detection to trigger alerts and quickly retrieve data with the highest levels of reliability
- Camera Trainer to train the camera to recognize user-specified target objects for both moving and non-moving objects
£
1,599
56
Price
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.396.604
Product Series
IP starlight 8000i
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
8MP
Field of View
Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
3.90mm
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
3.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
3840 x 2160
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP66, IP6K9K
Display & graphics
Maximum video resolution
3840 x 2160
Environmental conditions
Maximum Operating Temperature
74°C
Minimum Operating Temperature
-50°C
Operating Humidity
100%
Exposure
Longest Shutter Speed
1/30 Second
Shortest Shutter Speed
1/15000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
12-40mm
Lens Included
Yes
Maximum Focal Length
10.00mm
Minimum Aperture
f/2.7
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Waterproof
Form Factor
Dome
Height
148.00mm
Weight
2.30kg
Power description
Input Voltage
12-26V DC, 24V AC
Product information
Diameter
175.00mm
Mount Type
Ceiling Mount, Corner Mount, Parapet Mount, Pendant Mount, Pole Mount, Surface Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Miscellaneous
Environmental status
Yes
Features
Auto Tracking, Automatic Defog, Automatic White Balance, Cross Line Detection, Day/Night, Dynamic Noise Reduction, Enter/Exit Detector, Region of Interest, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact protection
IK10
Attributes
Indoor or outdoor use
Outdoor
Input Voltage
12-26V DC, 24V AC
Weight
2.30kg
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.396.604 |
| Product Series | IP starlight 8000i |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.90mm |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 3.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 3840 x 2160 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66, IP6K9K |
|---|
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|
Environmental conditions
| Maximum Operating Temperature | 74°C |
|---|---|
| Minimum Operating Temperature | -50°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 1/30 Second |
|---|---|
| Shortest Shutter Speed | 1/15000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 12-40mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 10.00mm |
| Minimum Aperture | f/2.7 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Waterproof |
| Form Factor | Dome |
| Height | 148.00mm |
| Weight | 2.30kg |
Power description
| Input Voltage | 12-26V DC, 24V AC |
|---|
Product information
| Diameter | 175.00mm |
|---|---|
| Mount Type | Ceiling Mount, Corner Mount, Parapet Mount, Pendant Mount, Pole Mount, Surface Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Auto Tracking, Automatic Defog, Automatic White Balance, Cross Line Detection, Day/Night, Dynamic Noise Reduction, Enter/Exit Detector, Region of Interest, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
| Impact protection | IK10 |
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Input Voltage | 12-26V DC, 24V AC |
| Weight | 2.30kg |
