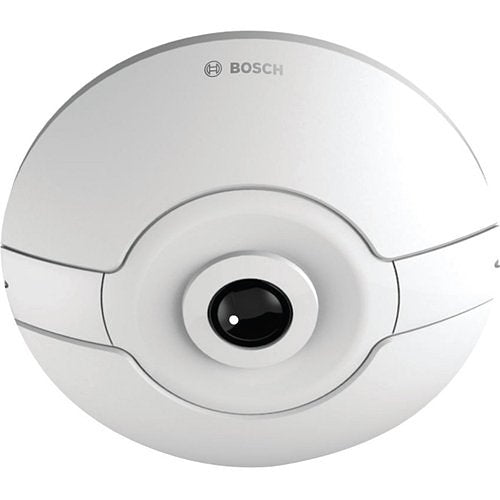

Bosch F.01U.310.885 panoramic camera, 12MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.310.885 is a panoramic camera from the 7000 range.
The FLEXIDOME IP panoramic 7000 MP is a discreet, aesthetic, low-profile camera for indoor use. The 12MP sensor operating at 30 fps provides full panoramic surveillance with complete area coverage, fine details and high speeds. The camera offers full situational awareness and simultaneous E-PTZ views in high resolution.
Lens versions
The 360° version of the camera, when mounted centrally on a ceiling, gives complete wall-to-wall coverage. The 180° version has a higher effective resolution and is ideal for wall mounting or for ceiling mounting in corridors. Dewarping
The lens captures a circular image. Our dewarping software transforms this circular image into several different distortion-free rectangular views. To facilitate system integration, you can choose edge dewarping inside the camera or client-side dewarping on an external platform.
The freely available Video Security Client from Bosch provides advanced client-side dewarping features. Advantages of panoramic surveillance
Panoramic surveillance offers full 180° or 360° coverage of the designated area. Because our panoramic cameras cover the full area, they provide complete situational awareness and are ideally suited to following movement in one continuous sweep.
Key features
- Up to 3640 x 2160 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
Specifications
General information
Technical information
Camera
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.310.885 |
| Product Series | 7000 |
| Product Type | Panoramic Cameras |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 12MP |
| Field of View | Horizontal |
| Lens Type | Fixed |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 1.60mm |
| Night Vision Type | NIR Active Illumination |
| Video Formats | H.264 / AVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|
Environmental conditions
| Maximum Operating Temperature | 40°C |
|---|---|
| Minimum Operating Temperature | -20°C |
| Operating Humidity | 20-93% |
Exposure
| Minimum Illumination | 0.1500lux |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.1mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 1.60mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 158.00mm |
| Form Factor | Dome |
| Height | 33.00mm |
| Weight | 445.00g |
Power description
| Input Voltage | 48V DC |
|---|
Product information
| Diameter | 158.00mm |
|---|---|
| Mount Type | Surface Mount |
Storage
| Recording Formats | H.264 |
|---|---|
| Storage Type | RAM (Volatile Memory), SD Card |
Miscellaneous
| Environmental status | Yes |
|---|---|
| Indoor or outdoor use | Indoor |
Attributes
| Input Voltage | 48V DC |
|---|---|
| Package Contents | 2 x Washers (M4 x 14) for Mounting to 4s Box; Surface Mount Box with 4 x M5 Screws (Delivered Separately With SMB Versions of The Camera) , FLEXIDOME IP Network Camera; Quick Install Instructions; Identification Labels; Mounting Ring; 2 x Allen Keys (T10 and 1.5); 4 x Screws (4.5 x 40); 4 x Plugs |
| Weight | 445.00g |
Bosch F.01U.310.885 panoramic camera, 12MP
