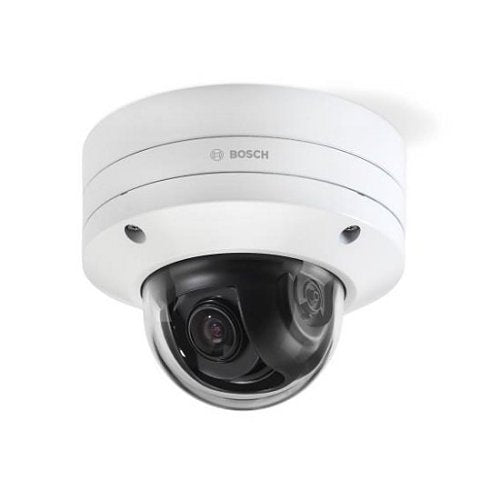

Bosch F.01U.404.122 ptrz dome camera, 2MP
Free Delivery
£
1,460
87
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.404.122 is a ptrz dome camera from the IP starlight 8000i range.
The FLEXIDOME IP starlight 8000i, 2MP performance line camera offers starlight performance and High Dynamic Range with 1080p resolution to provide crisp and highly detailed images even in extreme low-light situations. The camera’s remote commissioning functionality makes sure installation and commissioning can be done in very little time.
Key features
- Motorized Pan, Tilt, Roll, and Zoom (PTRZ) to set the required field of view, without having to touch the camera or lens allows for remote configuration and commissioning
- Starlight technology provides highly detailed images in extreme low-light situations
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in Intelligent Video Analytics with object detection to trigger alerts and quickly retrieve data with the highest levels of reliability
- Camera Trainer to train the camera to recognize user-specified target objects for both moving and non-moving objects
-
Download
- F.01U.404.122 — Product Manual
£
1,460
87
Price
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.404.122
Product Series
IP starlight 8000i
Product Type
Network Camera
General information
Packaged Quantity
1
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/1.6
Maximum Frame Rate
60fps
Minimum Focal Length
10.00mm
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
2.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP66, IP6K9K
Display & graphics
Maximum Illumination
0.0179lux
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-50°C
Operating Humidity
100%
Exposure
Longest Shutter Speed
1/25 Second
Shortest Shutter Speed
1/15000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Lens Included
Yes
Maximum Focal Length
23.00mm
Minimum Aperture
f/2.6
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dust Resistant, Impact Resistant, Vandal Resistant, Water Resistant, Weather Resistant
Form Factor
Dome
Height
148.00mm
Weight
2.20kg
Power description
Input Voltage
12V DC, 24V AC, 26V DC
Product information
Diameter
175.00mm
Mount Type
In-ceiling Mount, Surface Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Miscellaneous
Environmental status
Yes
Features
Alarm Triggering, Audio Compression, Audio Detection, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Multi-view Stream, Privacy Masking, White Balance, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
12V DC, 24V AC, 26V DC
Package Contents
1 x Quick Installation Guide; 1 x Safety information , 1 x Washer for cable conduit; 1 x Adapter plate for cable conduit (Ø 3/4" / M25); 1 x Adapter plate for cable conduit (Ø 1/2" / M20); 3 x Identification label; 1 x T-20 security Torx bit , Fixed dome 2MP HDR 10-23mm PTRZ IP66; 2 x Rubber grommet for the Ethernet cable; 1 x Network patch cable 50 cm; 1 x 10-pin I/O connector; 1 x 2-pin power connector; 1 x Cable conduit for side entry
Weight
2.20kg
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.404.122 |
| Product Series | IP starlight 8000i |
| Product Type | Network Camera |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 10.00mm |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 2.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66, IP6K9K |
|---|
Display & graphics
| Maximum Illumination | 0.0179lux |
|---|---|
| Maximum video resolution | 1920 x 1080 |
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -50°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 1/25 Second |
|---|---|
| Shortest Shutter Speed | 1/15000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Lens Included | Yes |
|---|---|
| Maximum Focal Length | 23.00mm |
| Minimum Aperture | f/2.6 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dust Resistant, Impact Resistant, Vandal Resistant, Water Resistant, Weather Resistant |
| Form Factor | Dome |
| Height | 148.00mm |
| Weight | 2.20kg |
Power description
| Input Voltage | 12V DC, 24V AC, 26V DC |
|---|
Product information
| Diameter | 175.00mm |
|---|---|
| Mount Type | In-ceiling Mount, Surface Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Alarm Triggering, Audio Compression, Audio Detection, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Multi-view Stream, Privacy Masking, White Balance, Wide Dynamic Range |
| Impact protection | IK10 |
| Indoor or outdoor use | Indoor, Outdoor |
Attributes
| Input Voltage | 12V DC, 24V AC, 26V DC |
|---|---|
| Package Contents | 1 x Quick Installation Guide; 1 x Safety information , 1 x Washer for cable conduit; 1 x Adapter plate for cable conduit (Ø 3/4" / M25); 1 x Adapter plate for cable conduit (Ø 1/2" / M20); 3 x Identification label; 1 x T-20 security Torx bit , Fixed dome 2MP HDR 10-23mm PTRZ IP66; 2 x Rubber grommet for the Ethernet cable; 1 x Network patch cable 50 cm; 1 x 10-pin I/O connector; 1 x 2-pin power connector; 1 x Cable conduit for side entry |
| Weight | 2.20kg |
