Bosch F.01U.404.126 ptrz dome camera, 8MP
Free Delivery
£
1,673
53
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)

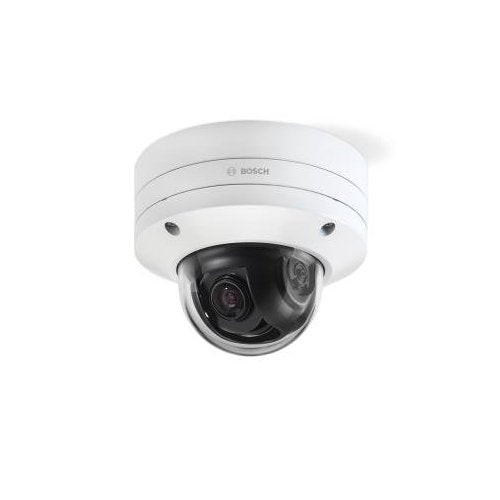

Bosch F.01U.404.126 is a ptrz dome camera from the IP starlight 8000i range.
Fixed dome with tele lens.NDAA compliant
Key features
- Motorized Pan, Tilt, Roll, and Zoom (PTRZ) to set the required field of view, without having to touch the camera or lens allows for remote configuration and commissioning
- 1/1.8 4K UHD sensor and starlight technology to provide highly detailed images even in extreme low-light situations
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in Intelligent Video Analytics with object detection to trigger alerts and quickly retrieve data with the highest levels of reliability
- Camera Trainer to train the camera to recognize user-specified target objects for both moving and non-moving objects
£
1,673
53
Price
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.404.126
Product Series
IP starlight 8000i
Product Type
Dome
General information
Packaged Quantity
1
Technical information
Connectivity Technology
Wired
Effective resolution
8MP
Field of View
Horizontal, Vertical
Lens Type
Telephoto
Maximum Aperture
f/2.3
Maximum Frame Rate
30fps
Minimum Focal Length
12.00mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Optical Zoom
3.3x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Certifications
CE marking
Yes
Ingress protection
IP66
Display & graphics
Maximum Illumination
0.1251lux
Maximum video resolution
3840 x 2160
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-50°C
Operating Humidity
5-93%
Exposure
Longest Shutter Speed
1/25 Minute
Minimum Illumination
0.0165lux
Shortest Shutter Speed
1/15000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
12-40mm
Lens Included
Yes
Maximum Focal Length
40.00mm
Minimum Aperture
f/2.3
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dust Resistant, Impact Resistant, Rain Resistant, Snow Resistant, Waterproof, Wind Resistant
Form Factor
Dome
Height
148.00mm
Power description
Input Voltage
12-26V DC, 24V AC
Product information
Diameter
175.00mm
Mount Type
Surface Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Environmental status
Yes
Features
Auto Tracking, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Defog, Digital Noise Reduction, Enter/Exit Detector, Face Detection, Region of Interest, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
12-26V DC, 24V AC
Package Contents
Cable duct for side entry; Washer for cable duct; Adapter plate for cable duct (Ø 3/4"/M25); Adapter plate for cable duct (Ø 1/2"/M20); Label set , FLEXIDOME IP 8000i Camera; T-20 Torx security bit; Quick start guide; Safety information; Rubber gasket for Ethernet cable; Network patch cable; 10-pin I/O connector; 2-pin power conn
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.404.126 |
| Product Series | IP starlight 8000i |
| Product Type | Dome |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Telephoto |
| Maximum Aperture | f/2.3 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 12.00mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 3.3x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP66 |
Display & graphics
| Maximum Illumination | 0.1251lux |
|---|---|
| Maximum video resolution | 3840 x 2160 |
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -50°C |
| Operating Humidity | 5-93% |
Exposure
| Longest Shutter Speed | 1/25 Minute |
|---|---|
| Minimum Illumination | 0.0165lux |
| Shortest Shutter Speed | 1/15000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 12-40mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 40.00mm |
| Minimum Aperture | f/2.3 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dust Resistant, Impact Resistant, Rain Resistant, Snow Resistant, Waterproof, Wind Resistant |
| Form Factor | Dome |
| Height | 148.00mm |
Power description
| Input Voltage | 12-26V DC, 24V AC |
|---|
Product information
| Diameter | 175.00mm |
|---|---|
| Mount Type | Surface Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Auto Tracking, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Defog, Digital Noise Reduction, Enter/Exit Detector, Face Detection, Region of Interest, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12-26V DC, 24V AC |
|---|---|
| Package Contents | Cable duct for side entry; Washer for cable duct; Adapter plate for cable duct (Ø 3/4"/M25); Adapter plate for cable duct (Ø 1/2"/M20); Label set , FLEXIDOME IP 8000i Camera; T-20 Torx security bit; Quick start guide; Safety information; Rubber gasket for Ethernet cable; Network patch cable; 10-pin I/O connector; 2-pin power conn |
Bosch F.01U.404.126 ptrz dome camera, 8MP
