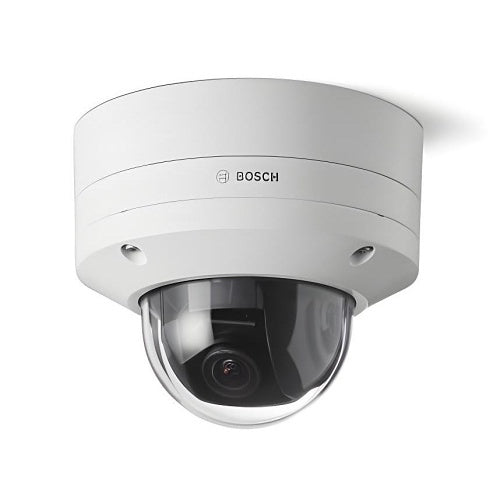

Bosch F.01U.411.089 ptrz dome camera, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.411.089 is a ptrz dome camera from the X Series range.
The FLEXIDOME 8100i 2MP - X series camera has a 1/1.8" sensor, Starlight X and HDR X technology at HD 1080p resolution. Starlight X technology provides extreme low-light sensitivity ensuring highly detailed images even in the most challenging situations. HDR X enables the camera to capture video across different light levels and without motion blur and artefacts on moving objects.
The camera's remote commissioning functionality ensures installation and commissioning in the minimum amount of time. Using a PC or a mobile device with the Project Assistant app, you can pan, tilt, roll and zoom (PTRZ) and point the camera to the required field of view with a single click, without ever having to touch the camera or lens. The latest CPP14 platform provides powerful processing capabilities and built-in neural processing engine to enable deep learning based IVA Pro video analytics, bringing highly reliable detection of persons and vehicles, even in crowded scenes.
Key features
- Pan, Tilt, Roll and Zoom (PTRZ) remotely to set the camera to the required field of view, without having to touch the camera or lens
- Starlight X technology with 1/1.8" HD 1080p sensor for next level low-light performance with maximum detail
- High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile to crowded and congested zones
- Electronic image stabilization (EIS) measures the frequency and amplitude of the device’s vibrations to offset their impact on the image
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Lens
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.411.089 |
| Product Series | X Series |
| Product Type | Dome Camera |
General information
| Package Type | Box |
|---|---|
| Packaged Quantity | 11 |
Technical information
| Effective resolution | 2MP |
|---|---|
| Field of View | Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/2.3 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 12.00mm |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -50°C |
| Operating Humidity | 5-93% (Non-condensing) |
Lens
| Focal Length | 12-38mm |
|---|---|
| Maximum Focal Length | 38.00mm |
Physical characteristics
| Colour | White |
|---|---|
| Height | 148.00mm |
| Weight | 2.30kg |
Power description
| Input Voltage | 12-26V DC, 24V AC |
|---|
Product information
| Diameter | 175.00mm |
|---|---|
| Mount Type | Surface Mount |
Miscellaneous
| Environmental status | Yes |
|---|---|
| Impact protection | IK11 |
| Indoor or outdoor use | Indoor, Outdoor |
| Package Contents | (1) FLEXIDOME 8100i IR 2MP - X series camera (1) T-20 security Torx bit (1) Mini screwdriver (1) IP66 rubber grommet (1) IP67 grommet (1) Network patch cable 50 cm (3) Identification l, (1) Quick installation guide (1) Safety and security information |
Attributes
| Input Voltage | 12-26V DC, 24V AC |
|---|---|
| Package Contents | (1) FLEXIDOME 8100i IR 2MP - X series camera (1) T-20 security Torx bit (1) Mini screwdriver (1) IP66 rubber grommet (1) IP67 grommet (1) Network patch cable 50 cm (3) Identification l, (1) Quick installation guide (1) Safety and security information |
| Weight | 2.30kg |
