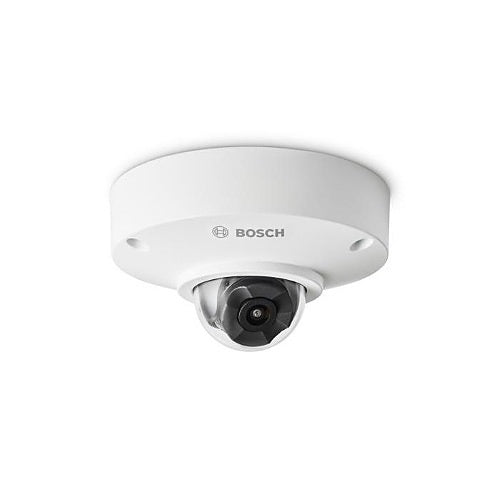

Bosch F.01U.408.372 surveillance camera, 2MP
Free Delivery
£
332
86
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Bosch F.01U.408.372 is a surveillance camera from the 3100i range.
The FLEXIDOME micro 3100i is discreet and compact by design, offering high-quality imaging for 24/7 surveillance. It includes IVA Pro Buildings deep-learning-based video analytics for reliable detection in and around buildings and a built-in Secure Element for the highest level of data security. This environmental variant leverages IK10 and IP66 ratings, making the housing durable for outdoor and vandal-prone indoor applications.
Unique corner and L-shape wall mounts enable discreet mounting. Additionally, the cameras are compatible with the Bosch Modular Mounts.
Key features
- Compact and robust design for discreet use with quick and easy installation and set-up
- 1080p HD resolution
- IVA Pro Buildings brings reliable deep-learning based detection of persons and vehicles
- High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
- Built-in Secure Element with Trusted Platform Module (TPM) to ensure the highest level of security for device access and data transport
-
Download
- F.01U.408.372 — Product Manual
£
332
86
Price
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.408.372
Product Series
3100i
Product Type
Dome
General information
Packaged Quantity
1
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1.9
Maximum Frame Rate
30fps
Minimum Focal Length
6.00mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
50°C
Minimum Operating Temperature
-30°C
Operating Humidity
5-100%
Exposure
Longest Shutter Speed
2.4s
Minimum Illumination
0.1000lux
Shortest Shutter Speed
1/15000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
6mm
Lens Included
Yes
Maximum Focal Length
6.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor
Dome
Height
69.20mm
Width
123.00mm
Product information
Diameter
123.00mm
Mount Type
Surface Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1920 x 1080
Miscellaneous
Environmental status
Yes
Features
Alarm Triggering, Back Light Compensation (BLC), Day/Night, Human Detection, Privacy Masking, Privacy Protection, Vehicle Detection, Video Content Analytics, White Balance
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Package Contents
1 FLEXIDOME micro 3100i device; 1 TR15 key; 1 Mounting sticker; 1 Quick installation guide; 1 Safety and security information; 3 Installer UX label; 1 RJ45 guider
Specifications
| Brand Name | Bosch |
|---|---|
| Manufacturer Part Number | F.01U.408.372 |
| Product Series | 3100i |
| Product Type | Dome |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/1.9 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 6.00mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 50°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 5-100% |
Exposure
| Longest Shutter Speed | 2.4s |
|---|---|
| Minimum Illumination | 0.1000lux |
| Shortest Shutter Speed | 1/15000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 6mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 6.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof |
| Form Factor | Dome |
| Height | 69.20mm |
| Width | 123.00mm |
Product information
| Diameter | 123.00mm |
|---|---|
| Mount Type | Surface Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1920 x 1080 |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Alarm Triggering, Back Light Compensation (BLC), Day/Night, Human Detection, Privacy Masking, Privacy Protection, Vehicle Detection, Video Content Analytics, White Balance |
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Package Contents | 1 FLEXIDOME micro 3100i device; 1 TR15 key; 1 Mounting sticker; 1 Quick installation guide; 1 Safety and security information; 3 Installer UX label; 1 RJ45 guider |
|---|
