BPT OPALE WHITE handset free monitor, 4"
About this product
Please note: this is a non-returnable item (excluding faulty goods)

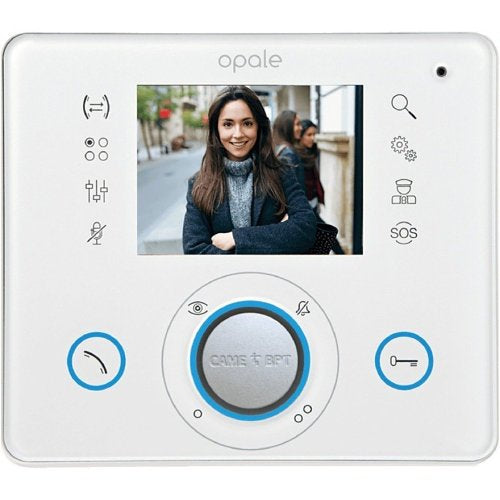

BPT OPALE WHITE is a handset free monitor.
Video intercom with 3.5" LCD display, with up to 10 programmable AUXs - white. Surface mounted monitor with 3.5 ? LCD touch-screen display with graphical interface.
On the left side there are the intercom function-access buttons, access to additional auxiliary controls, access to video adjustments and deactivating the incoming call audio, while on the right side there are the buttons for zooming, device setup, porter-message displaying and the "Panic" button for emergency calls to the porter. The main keys are clearly visible and backlit, allowing activation of communication and door opening, while the central dial is for managing 2 auxiliary commands, self-insertion of entry panel videos, and alarm exclusion (with LED signaling when excluded). It is equipped with a Master/Slave function and a video relaying between extensions function for simultaneous calls.
Bus or local power supply (16 to 18 V DC) via selector switch. For surface mount installationto be finished with the OPALEKP wall bracket. For recess-mounted installation to be finished with the OPALSIS recess-mounted box.
Compatible with the X1 and XIP systems.
Key features
- Lock release button
- 3.5" LCD display and soft touch buttons
- Up to 8 intercom calls
- Image zooming during conversation
- Activate/exclude audio during conversation
- Two keys for activating the auxiliary/porter call functions
- Up to 10 auxiliary controls
- Call forwarding function
- Automatic door-opener function with weekly scheduling
- "Panic" button for emergency calls to the porter
If you are matching this to an existing installation, work from the OPALE WHITE part number rather than the description.
Specifications
General information
Technical information
Display & graphics
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | BPT |
|---|---|
| Manufacturer Part Number | OPALE WHITE |
| Product Type | Video Door Phone |
General information
| Application/Usage | Door Entry |
|---|
Technical information
| Communication Mode | Half-Duplex |
|---|---|
| Wiring Type | 2-wire |
Display & graphics
| Screen Size | 4" |
|---|---|
| Touchscreen | Yes |
Physical characteristics
| Colour | Silver |
|---|
Product information
| Display Screen Type | TFT LCD (Thin Film Transistor) |
|---|
Miscellaneous
| Compatibility | BPT Products: X1 System XIP System |
|---|
Attributes
| Compatibility | BPT Products: X1 System; XIP System |
|---|
