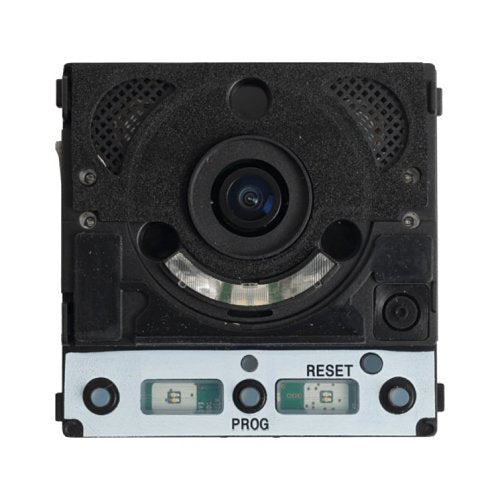

BPT MTMV/01 video module, White
About this product
BPT MTMV/01 is a video module.
Discover the BPT MTMV-01 Video Module, a perfect addition to your MTM Panel for the X1 System. This module features two call buttons and on-board controls for electric lock and auxiliary functions. Its 'Wide-eye' lens offers a broad 100° horizontal and 82° vertical view, ensuring comprehensive coverage.
Enjoy enhanced visibility with its high-efficiency illuminator and anti-glare diffuser, along with LED pictograms that indicate various status alerts like door opening and active communication. The module also includes adjustable settings for the speaker, microphone, and electric lock, and dual backlit name tags in blue or white. It boasts an IP54 rating for water and dust resistance, and a MiniUSB port for easy firmware updates and programming.
Key features
- 2 call buttons
- 2 on-board controls: electric lock and auxiliary control (1A, 30V max)
- " Wide-eye" lens, aperture 100° horizontally and 82° vertically
- High efficiency illuminator (adjustable brightness) with anti-glare diffuser
- LED pictograms for status alerts: door opening, active communication, call in progress and system busy
- Adjustable speaker, microphone and electric lock
- Dual blue or white backlit name tags with brightness settings
- Water and dust protection rating IP54
- MiniUSB front panel for firmware updating and programming.
If you are matching this to an existing installation, work from the MTMV/01 part number rather than the description.
Specifications
General information
Technical information
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | BPT |
|---|---|
| Manufacturer Part Number | MTMV/01 |
| Product Type | Door Panel Camera Module |
General information
| Application/Usage | Door |
|---|
Technical information
| Device Supported | Intercom System |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 35.00mm |
| Durability | Dustproof, Waterproof |
| Height | 85.00mm |
| Weight | 0.25kg |
| Width | 85.00mm |
Miscellaneous
| Compatibility | Came X1 Systems |
|---|
Attributes
| Compatibility | Came X1 Systems |
|---|---|
| Device Supported | Intercom System |
| Features | Adjustable Brightness, Anti-glare, LED Indicator, Microphone, Speaker |
| Weight | 0.25kg |
