Knightsbridge: BTEVEM, Adjustable Wattage Emergency LED Bulkhead, CCT 3000K/4000K/5700K, Polycarbonate, IP65, IK10, 9W/14W/18W
About this product
The BT EVO bulkhead offers superior illumination for commercial and industrial applications, both indoors and outdoors. This adjustable model allows settings for colour temperature (3000K/4000K/5700K) and wattage (9W/14W/18W) within a sleek design.
- IP65 weatherproof and IK10 impact rated construction for durability.
- UV-stabilised body ensures longevity outdoors.
- Easy installation with push-fit terminals, hinged gear tray, twist lock diffuser.
- Choices for emergency operation and sensor integration available.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
| Class | II |
|---|---|
| Finish | White |
| IP Rating | IP65 |
| Construction | Polycarbonate |
| Primary Voltage | 230V 50Hz |

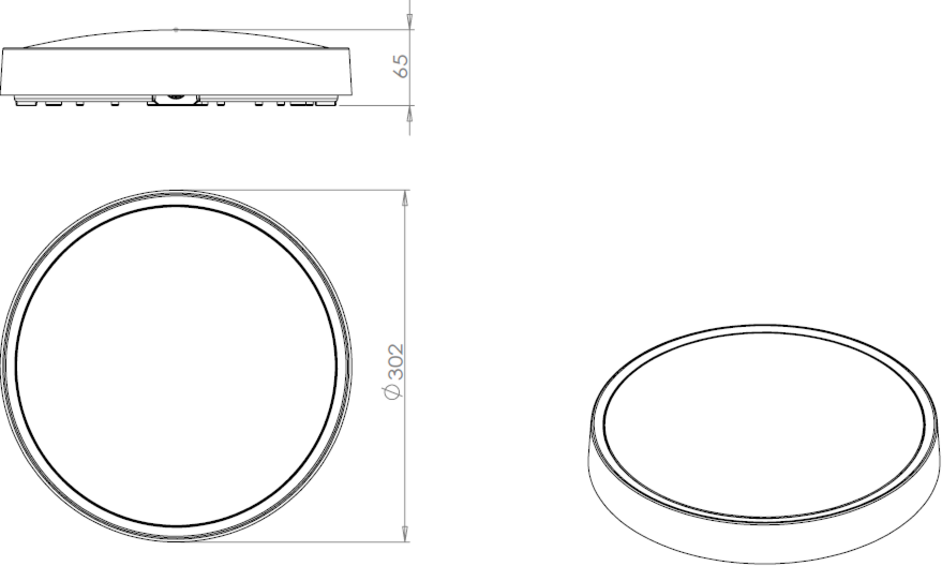

Dimensions
| Diameter | 300 mm |
|---|---|
| Projection | 65 mm |
Lamp
| L70B50 | 50,000 |
|---|---|
| Dimmable | No |
| Beam Angle | 120 |
| Lamp Technology | SMD LED |
| Energy Rating (Class) post 2021 SLR | D |
Driver
| Driver Type | Constant Current |
|---|
Luminaire
| Diffuser | Opal |
|---|---|
| Emergency | Maintained / Non-maintained / Switched |
Photometric
| CCT | 3000/4000/5700 K |
|---|---|
| CRI | >85 |
| Lumens | 890/930/915,1295/1400/1330,1520/1750/1585 lm |
| Wattage | 9/14/18 |
| Light Colour | CCT |
| Lumens (Em. mode) | 120 lm |
| Efficacy (Light source) | 136/136/134 lm/W |
| Lumens (Light source only) | 1215/1900/2300 lm |
BT EVO CCT Adjustable LED Bulkhead features
Knightsbridge: BTEVEM, Adjustable Wattage Emergency LED Bulkhead, CCT 3000K/4000K/5700K, Polycarbonate, IP65, IK10, 9W/14W/18W
