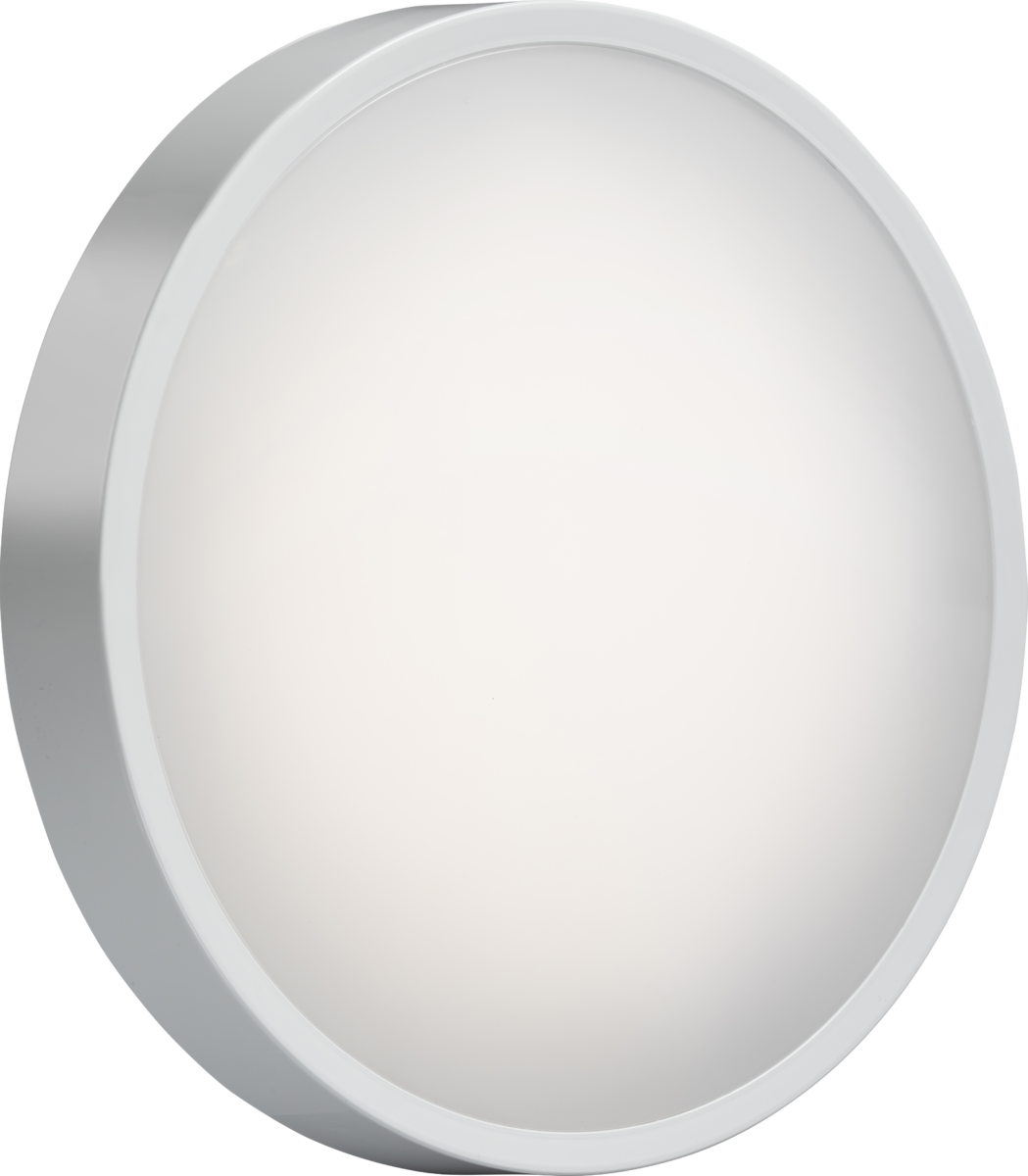

Knightsbridge: BTEVMWEM, Emergency LED Bulkhead Light, 230V, Adjustable Wattage 9W/14W/18W, IP65, Microwave Sensor, IK10
About this product
BT Evo offers superior commercial, industrial, indoor and outdoor illumination, reducing complexity by combining triple wattage and colour adjustments into a single slimline housing.
- Adjustable Colour Temperature: 3000K/ 4000K/ 5700K
- Adjustable Wattage: 9W/ 14W/ 18W
- Fully adjustable microwave sensor
- Slave Live terminal enables the powering of additional non-sensor luminaires
- Lithium LiFePO4 battery for reliable emergency performance
- Weatherproof with IP65 and impact resistant with IK10 rating
- UV-stabilised body ensuring long life outdoors
- Push-fit terminals for easy installation
- 20mm conduit entry points on four sides plus rear BESA mounting points
Options available: standard, emergency, microwave sensor, emergency with a microwave sensor, corridor function, corridor function with emergency, daylight sensor, daylight sensor with emergency.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
| Class | II |
|---|---|
| Finish | White |
| IP Rating | IP65 |
| Construction | Polycarbonate |
| Primary Voltage | 230V 50Hz |

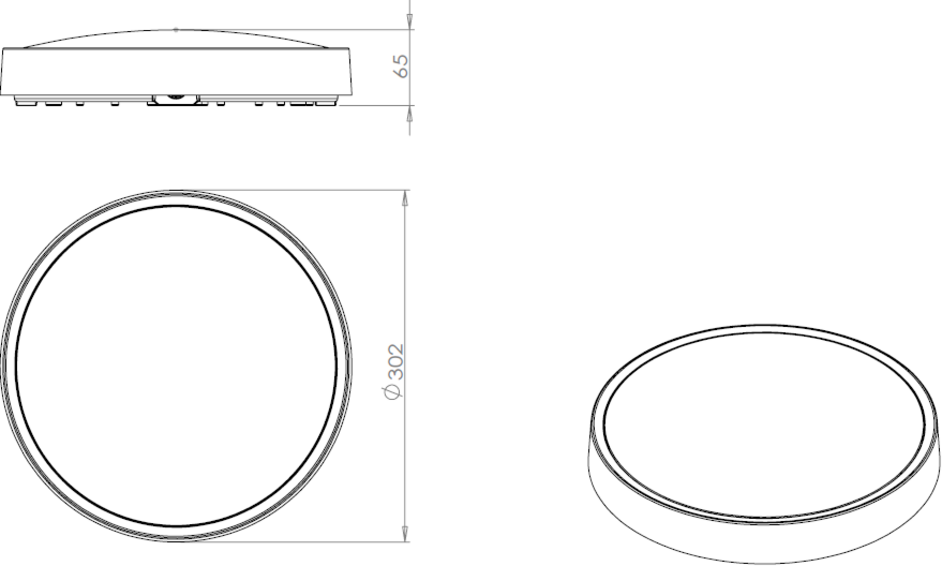

Dimensions
| Diameter | 300 mm |
|---|---|
| Projection | 65 mm |
Lamp
| L70B50 | 50,000 |
|---|---|
| Dimmable | No |
| Beam Angle | 120 |
| Lamp Technology | SMD LED |
| Energy Rating (Class) post 2021 SLR | D |
Driver
| Driver Type | Constant Current |
|---|
Luminaire
| Diffuser | Opal |
|---|---|
| Emergency | Maintained / Non-maintained (not Switched) |
Photometric
| CCT | 3000/4000/5700 K |
|---|---|
| CRI | >85 |
| Lumens | 890/930/915,1295/1400/1330,1520/1750/1585 lm |
| Wattage | 9/14/18 |
| Light Colour | CCT |
| Lumens (Em. mode) | 120 lm |
| Efficacy (Light source) | 136/136/134 lm/W |
| Lumens (Light source only) | 1215/1900/2300 lm |
BT EVO Adjustable Wattage CCT LED Bulkhead features
