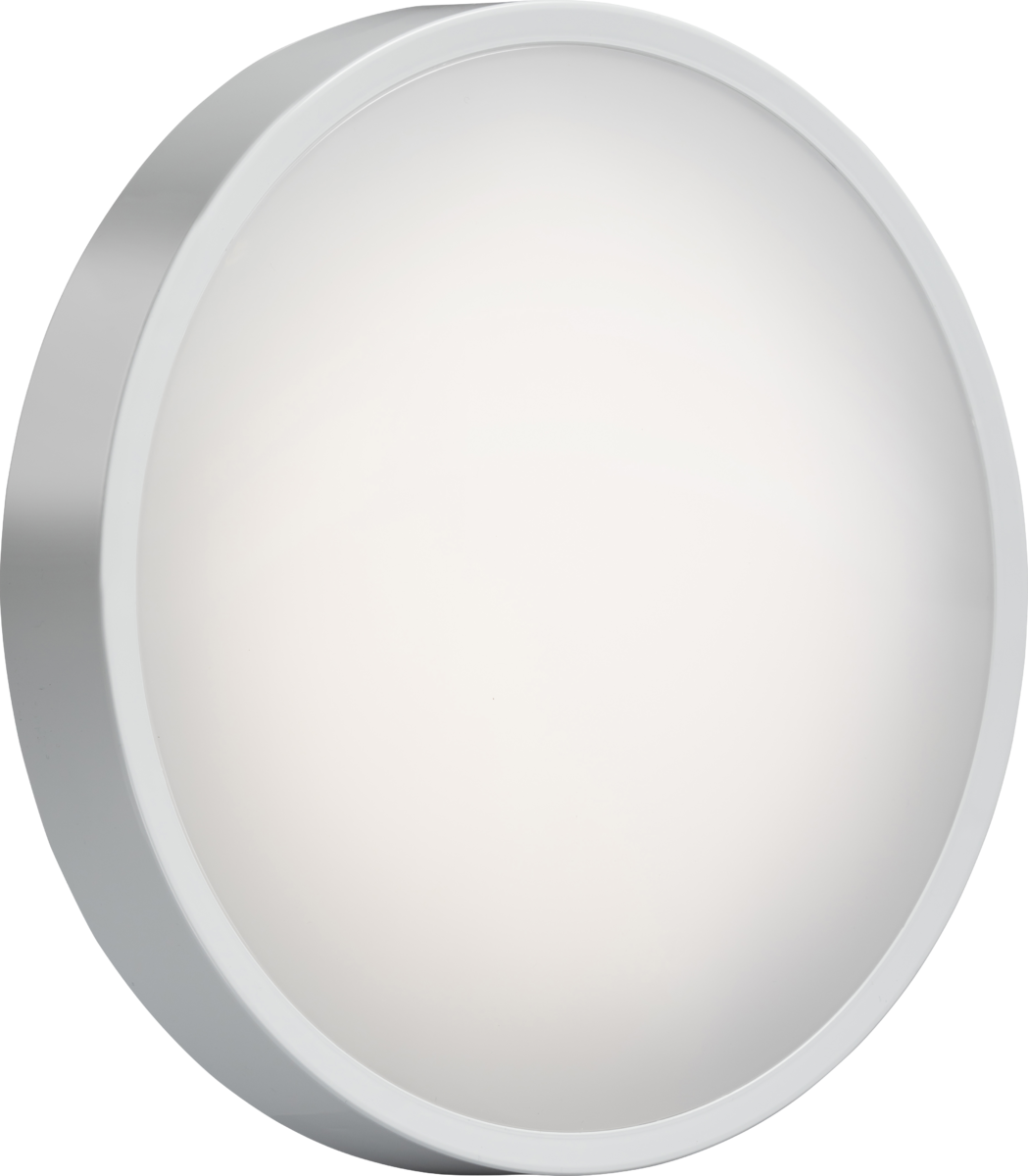

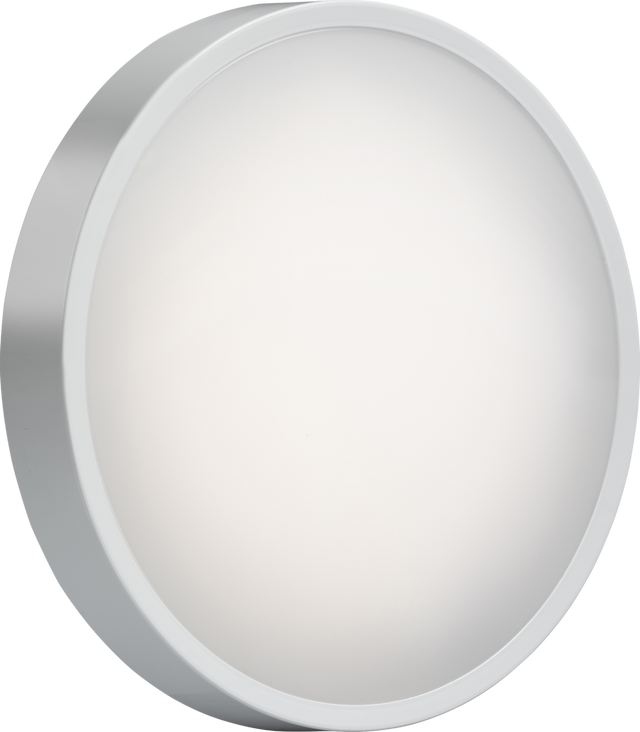

BT EVO Adjustable Wattage & CCT LED Bulkhead (Sold in packs of 5)
The BT EVO delivers superior illumination for commercial, industrial, indoor, and outdoor settings, combined into a single slimline housing for ease of use.
- Triple wattage settings of 9W, 14W, and 18W.
- Colour temperature adjustable between 3000K, 4000K, and 5700K.
- Constructed from anti-corrosive material with an IP65 weatherproof and IK10 impact rating.
- Easy installation with push-fit terminals, hinged gear tray, and twist lock diffuser.
- Multiple options available: standard, emergency, microwave sensor, daylight sensor, and more.
- 9W delivers 930lm, 14W outputs 1,400lm, and 18W gives 1,750lm at 4000K.
Please ensure compliance with UK regulations and installation is carried out correctly.
Specifications
II
White
IP65
Polycarbonate
230V 50Hz
Dimensions
300 mm
65 mm
Lamp
50,000
No
120
SMD LED
D
Driver
Constant Current
Luminaire
Opal
Photometric
3000/4000/5700 K
>85
890/930/915,1295/1400/1330,1520/1750/1585 lm
9/14/18
CCT
136/136/134 lm/W
1215/1900/2300 lm
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP65 |
Construction | Polycarbonate |
Primary Voltage | 230V 50Hz |

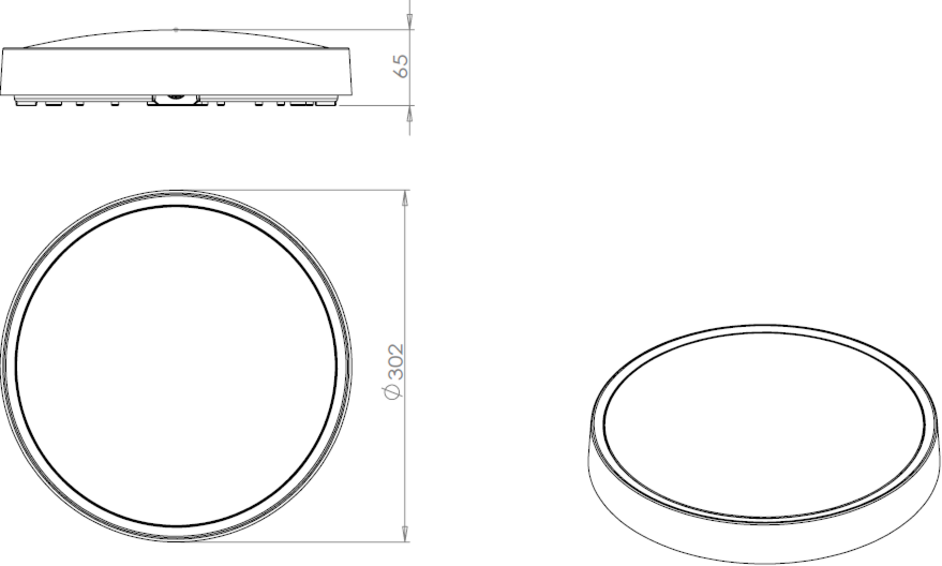

Dimensions
Diameter | 300 mm |
---|---|
Projection | 65 mm |
Lamp
L70B50 | 50,000 |
---|---|
Dimmable | No |
Beam Angle | 120 |
Lamp Technology | SMD LED |
Energy Rating (Class) post 2021 SLR | D |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Opal |
---|
Photometric
CCT | 3000/4000/5700 K |
---|---|
CRI | >85 |
Lumens | 890/930/915,1295/1400/1330,1520/1750/1585 lm |
Wattage | 9/14/18 |
Light Colour | CCT |
Efficacy (Light source) | 136/136/134 lm/W |
Lumens (Light source only) | 1215/1900/2300 lm |
BT EVO Adjustable Wattage & CCT LED Bulkhead (Sold in packs of 5) features

BT EVO Adjustable Wattage & CCT LED Bulkhead, 230V, IP65, IK10, 9W-18W, 930-1750lm, BTEV (Sold in packs of 5)
