Knightsbridge: BTEVP, Adjustable Wattage & CCT LED Bulkhead, Daylight Sensor, IP65, IK10, 230V, 9W/14W/18W
About this product
The BT EVO 230V IP65 IK10 Adjustable Wattage and CCT LED Bulkhead with a Daylight Sensor offers a versatile lighting solution for both commercial and industrial use.
- Adjustable colour temperatures: 3000K, 4000K, and 5700K
- Selectable wattage: 9W, 14W, or 18W
- Features an integral natural daylight photocell sensor for exterior use
- Constructed from durable anti-corrosive material
- IP65 weatherproof and IK10 impact rating ensures long-lasting quality
- Easy installation with push-fit terminals and hinged gear tray
Options available for all your lighting requirements including emergency configurations and microwave sensor functions.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
| Class | II |
|---|---|
| Finish | White |
| IP Rating | IP65 |
| Construction | Polycarbonate |
| Primary Voltage | 230V 50Hz |

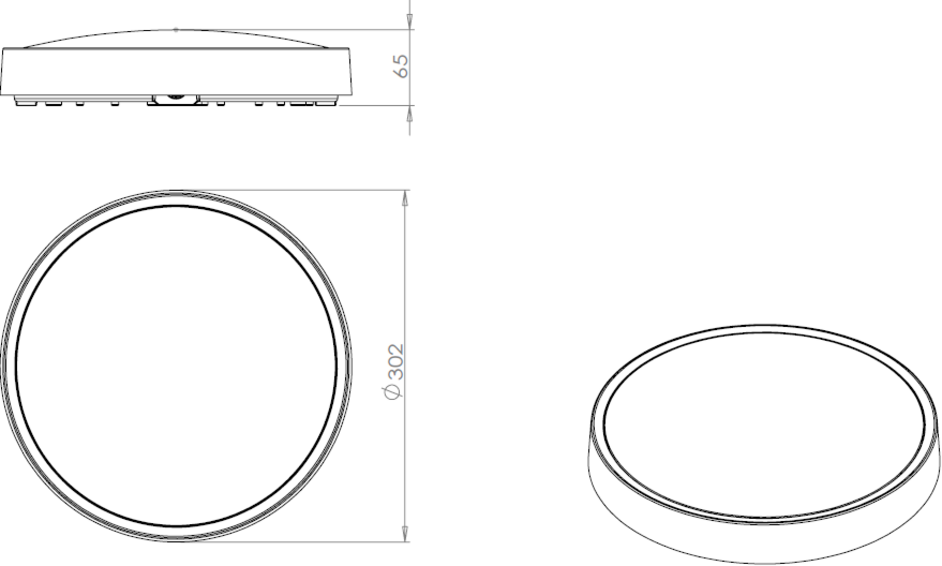

Dimensions
| Diameter | 300 mm |
|---|---|
| Projection | 65 mm |
Lamp
| L70B50 | 50,000 |
|---|---|
| Dimmable | No |
| Beam Angle | 120 |
| Lamp Technology | SMD LED |
| Energy Rating (Class) post 2021 SLR | D |
Driver
| Driver Type | Constant Current |
|---|
Luminaire
| Diffuser | Opal |
|---|
Photometric
| CCT | 3000/4000/5700 K |
|---|---|
| CRI | >85 |
| Lumens | 890/930/915,1295/1400/1330,1520/1750/1585 lm |
| Wattage | 9/14/18 |
| Light Colour | CCT |
| Efficacy (Light source) | 136/136/134 lm/W |
| Lumens (Light source only) | 1215/1900/2300 lm |
BT EVO LED Bulkhead (Adjustable) 230V features
