Bull CYG1 fire alarm control panel
About this product
Please note: this is a non-returnable item (excluding faulty goods)

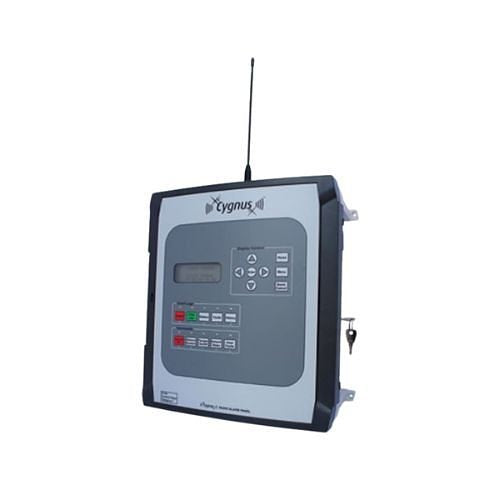

Bull CYG1 is a fire alarm control panel.
The control panel is an optional element of any Cygnus system, used to capture data from up to 480 devices situated around a site. This data includes active alarms and faults and all events are recorded into a file which can be viewed or downloaded. The control panel is mains powered but has its own internal rechargeable battery power source, which fully charged, will last 4 weeks.
The panel has other features including an evacuate site function which can be used in case of emergency and is also used to switch intruder sensors on or off.
Key features
- 65dB sounder integrated
- Mains power with battery backup
- 6V 12Ah lead acid rechargable battery
- Exterior mount aerial type
- 868MHz frequency
- Dimensions (h x w x d) 320 x 285 x 135mm
If you are matching this to an existing installation, work from the CYG1 part number rather than the description.
-
Download
- CYG1 — Manufacturer Brochure
Specifications
Technical information
Certifications
Specifications
| Brand Name | Bull |
|---|---|
| Manufacturer Part Number | CYG1 |
| Product Type | Fire Alarm Control Panel |
Technical information
| Connectivity Technology | Wireless |
|---|
Certifications
| CE marking | Yes |
|---|---|
| RoHS compliance | Out of Scope |
| WEEE compliance | Compliant |
