Citronic: 178.123UK, CASA Passive Sub Cabinets, 12", 400W, 700W Max
About this product
CASA Passive Sub Cabinets

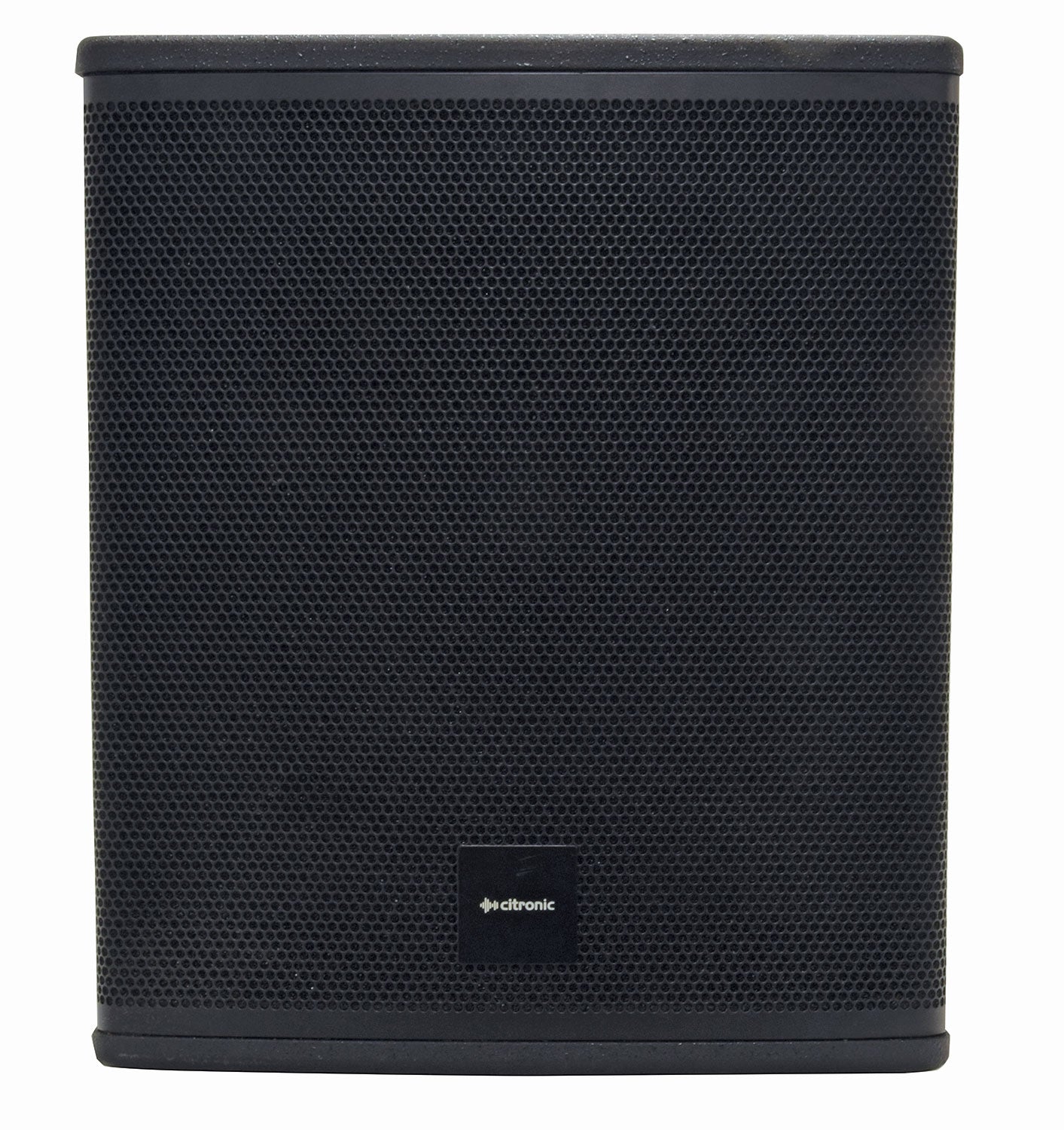

Lightweight subwoofer cabinets with minimal footprint and very capable power handling. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and a 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. Output from a power amplifier is via Speakon leads to sockets on the rear panel. Designed as a perfect match for the CASA range of PA cabinets and equally at home as part of any high energy sound reinforcement setup.

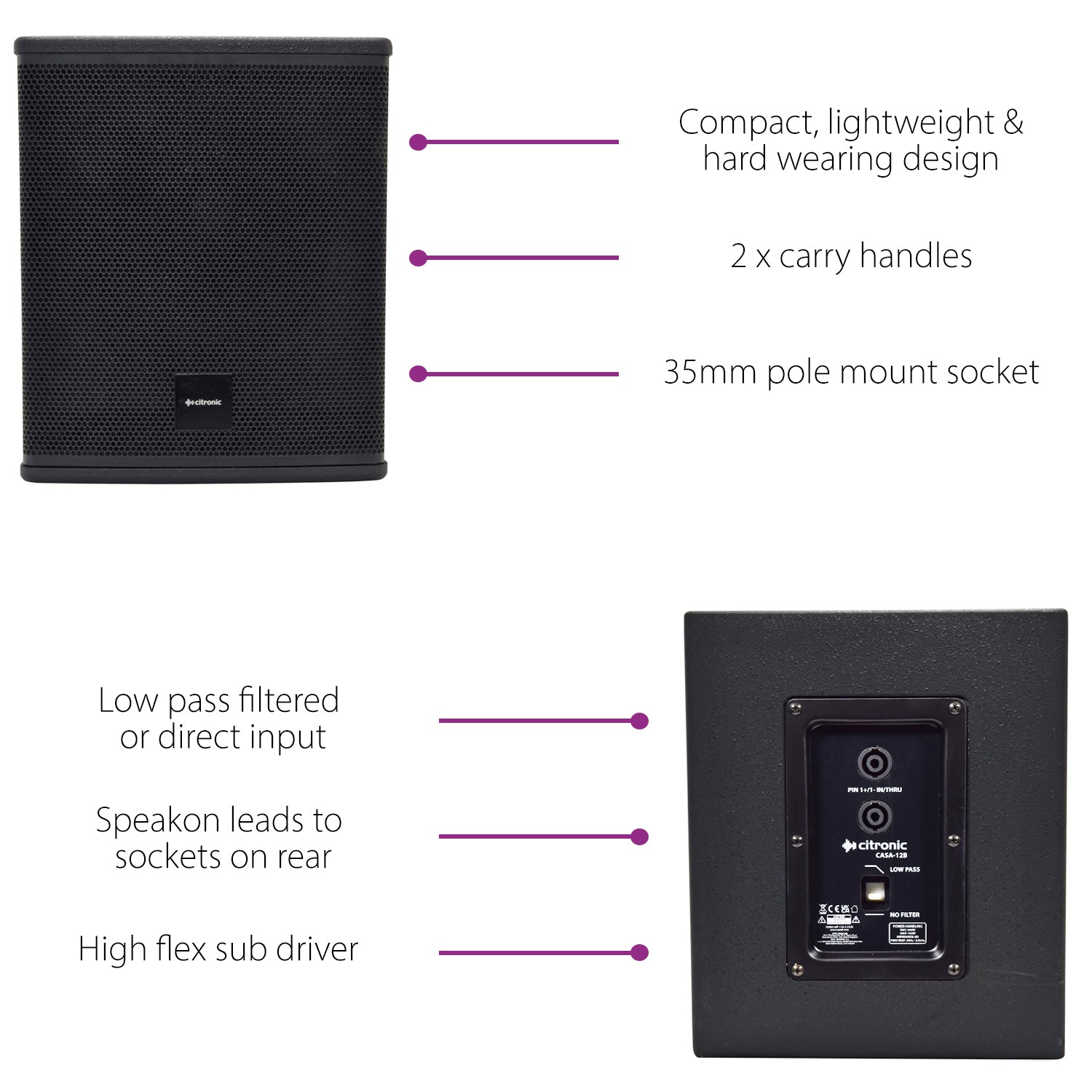

- Compact and lightweight design
- 15mm MDF cabinets with hard-wearing paint finish

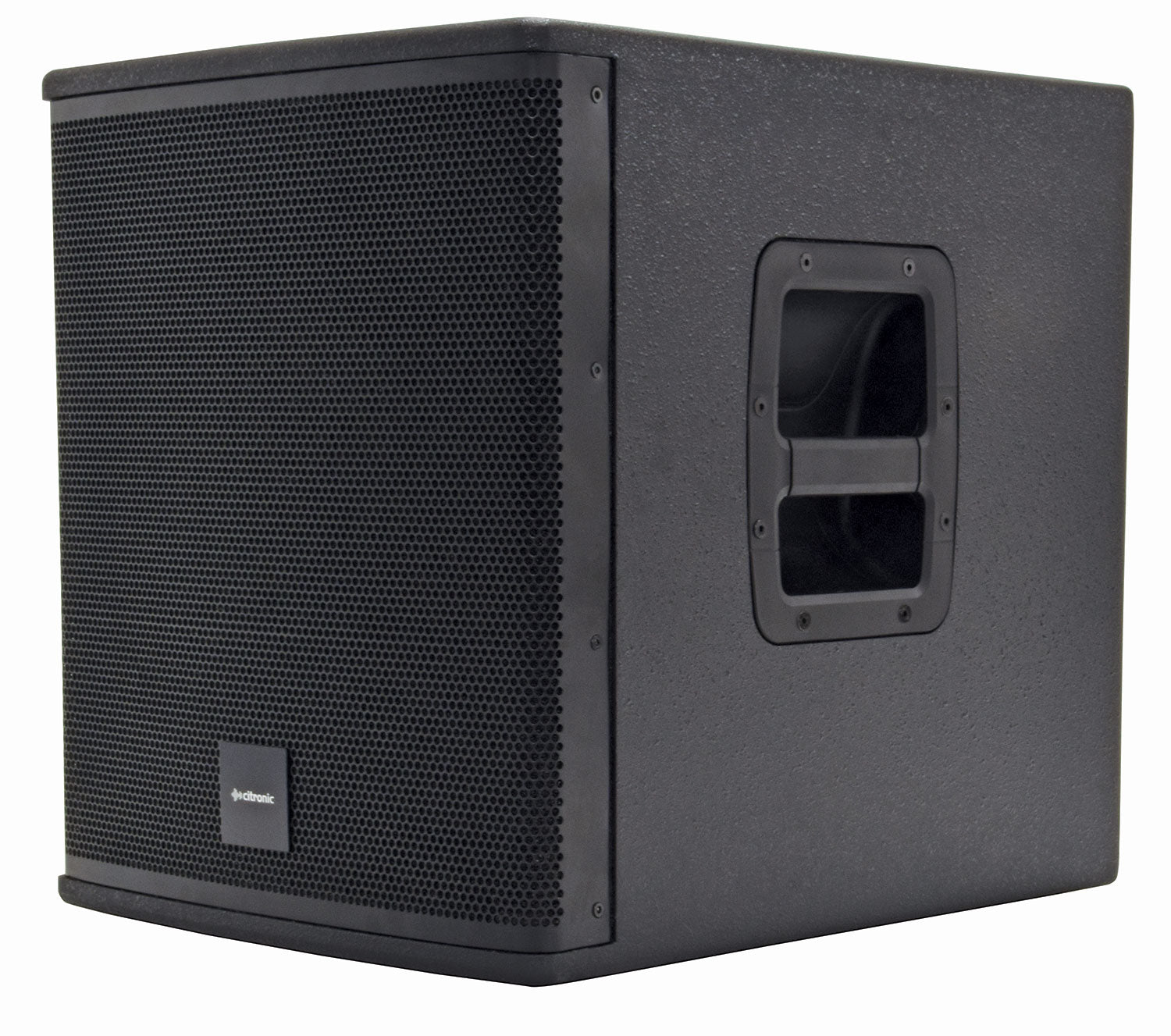

- 2 x side carry handles

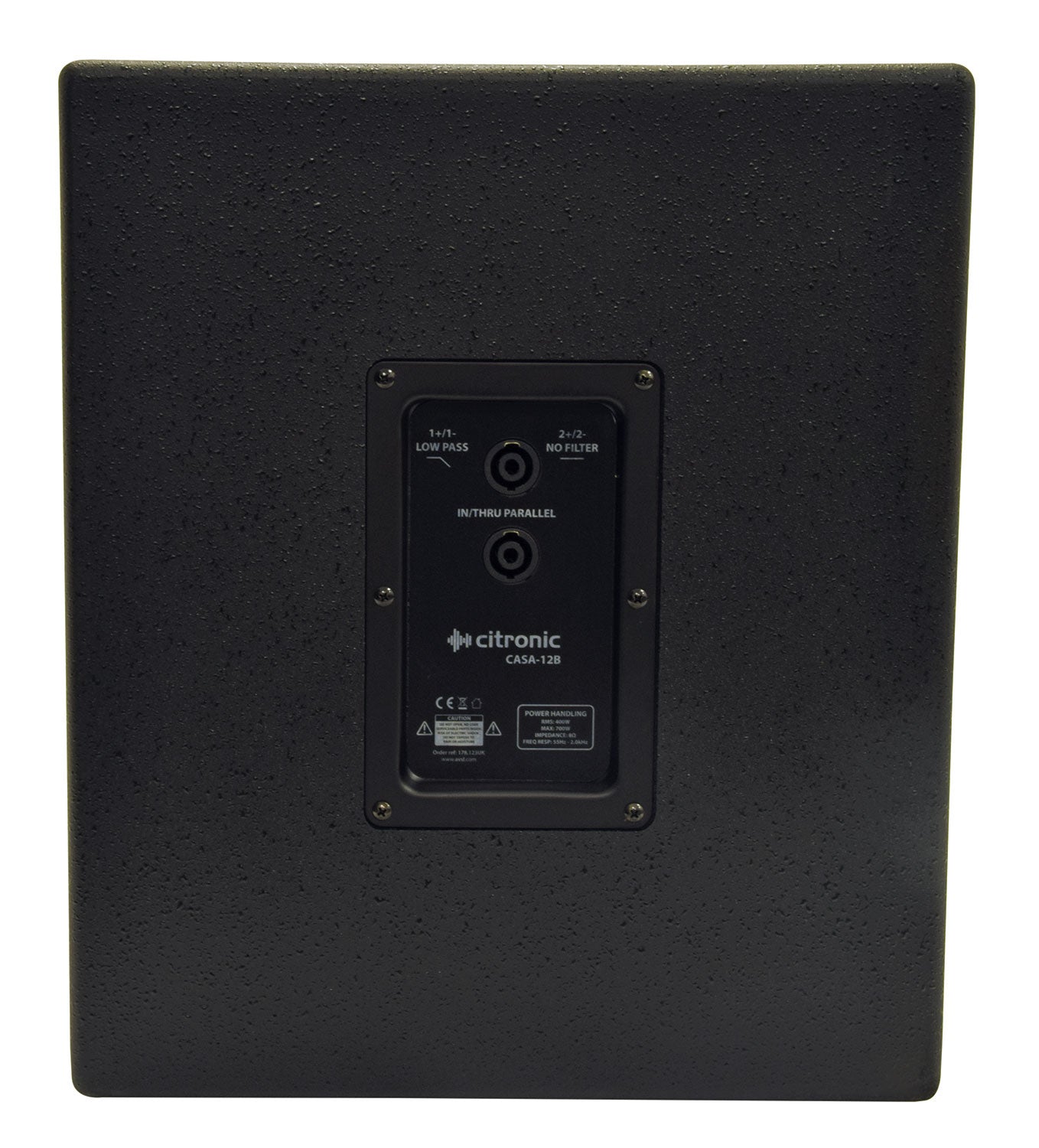

- Low pass filtered or direct input

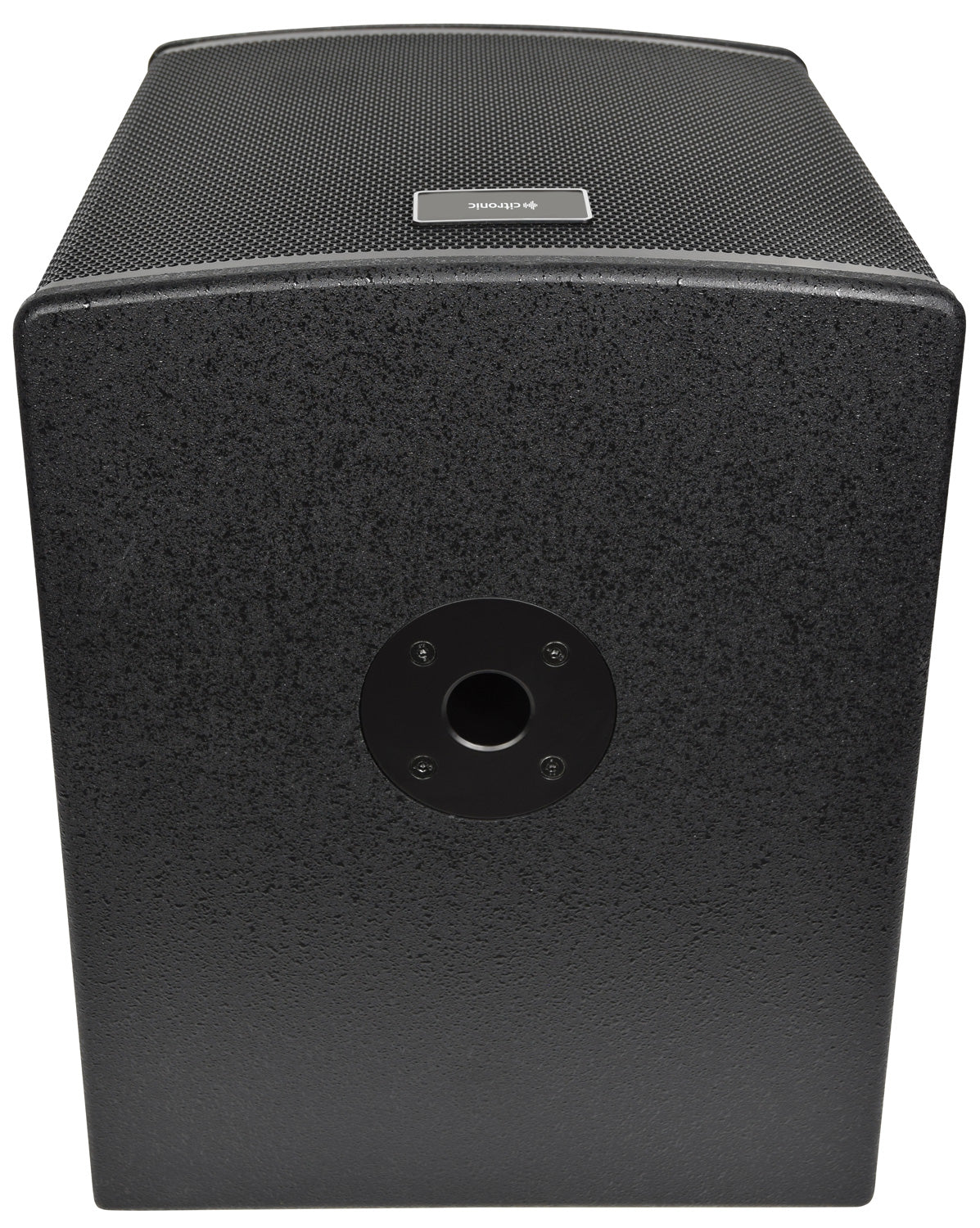

- 35mm pole mount socket
Specifications
Specifications
| Weight | 14 kg |
|---|---|
| SPL max. | 122.0 dB |
| Impedance | 8 Ohms |
| Connection | 2 x SPK socket |
| Sub driver | 300 mm (12") |
| Voice coil | 62 mm (2.5") |
| Filter type | 120 Hz low pass 12 dB/oct |
| Construction | 15 mm MDF with durable texture paint finish |
| Frequency response | 55 Hz - 2.0 kHz |
| Power handling (max) | 700 W |
| Power handling (rms) | 400 W |
Lightweight 12" Passive Subwoofer Cabinet features
