Introduction: Meet the Cat5e Armoured Outdoor Ethernet Cable

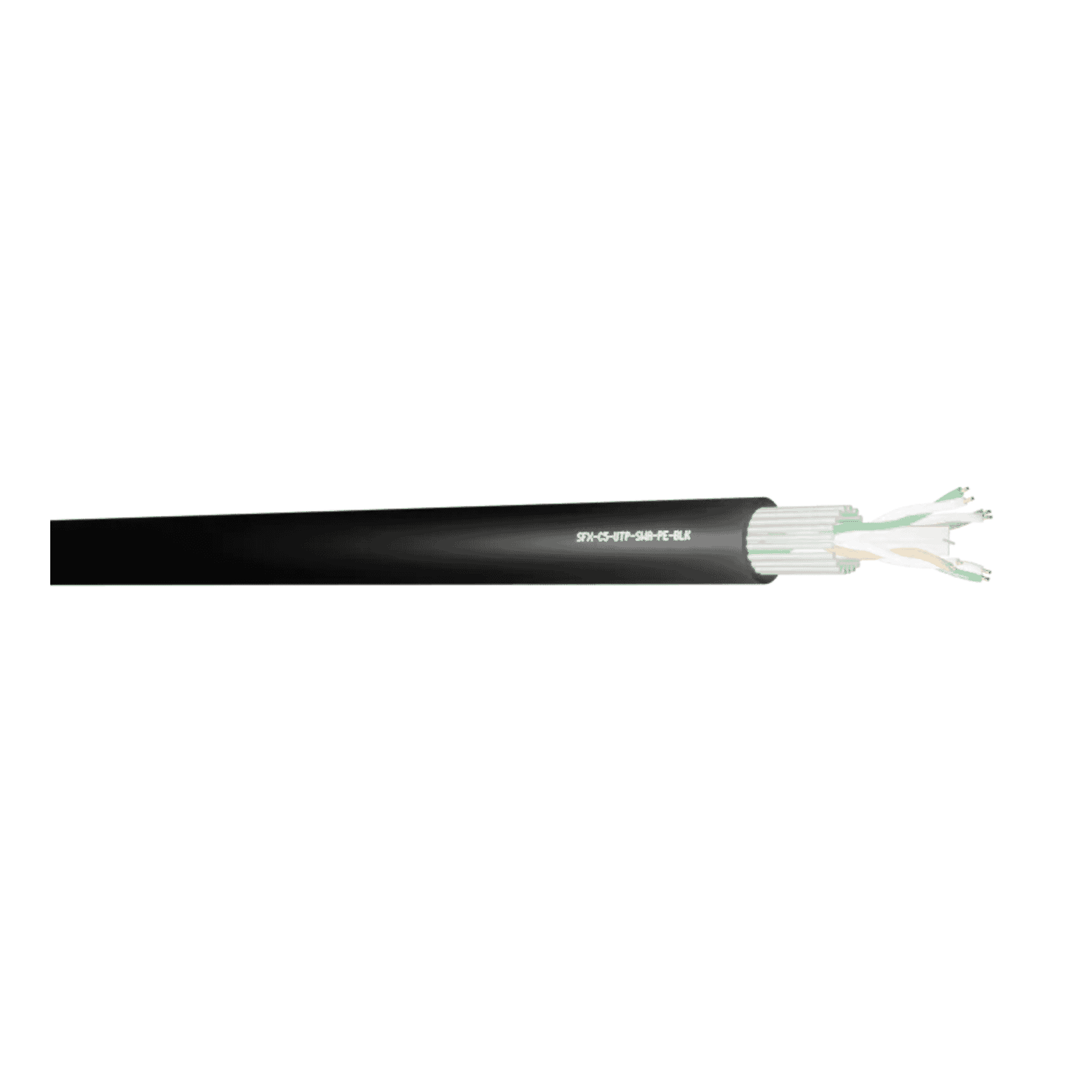

If you need a rugged, weatherproof cable for outdoor networking, theSFX C5-UTP-SWA-PE-BLK-1is built for the task. This product is a Cat5e, 4-pair unshielded (UTP) Ethernet cable with steel-wire armour (SWA) and a black polyethylene (PE) outer jacket. Supplied per metre, it is aimed at installers and system designers who require mechanical protection, UV resistance and reliable copper conductors for external Ethernet, CCTV or PoE runs.
Key selling points include solid bare copper conductors (0.47 mm), a robust SWA layer for crush and rodent protection, and a UV-resistant PE jacket for prolonged outdoor exposure. Rated for operation between −20 °C and +80 °C and classified under CPR as Fca, this cable balances performance, durability and cost — available at a suggested price of 1.79 per metre (cost price 1.49/m where applicable).
Detailed specifications and benefits
- Product code:SFX/C5-UTP-SWA-PE-BLK-1
- Category:Cat5e (100 MHz)
- Pairs:4 pairs, unshielded (UTP)
- Armour:Steel-wire armour (SWA) for mechanical protection
- Outer jacket:Black PE (RAL 9005), UV resistant
- Inner jacket:PVC, grey (RAL 7004); Ø ≈ 5.80 ± 0.20 mm; thickness 0.8 mm
- Conductor:Solid bare copper, Ø 0.47 ± 0.02 mm
- Insulation:HDPE; insulation thickness ≈ 0.24 mm
- Overall diameter:≈ 9.30 ± 0.20 mm
- DC resistance:< 102.40 Ω/km @ 20 °C
- Rated temperature:−20 °C to +80 °C
- CPR rating:Fca
- Ripcord:Included
- Sold:Per metre
- Typical applications:External Ethernet, CCTV, PoE to outbuildings
- Mechanical protection:The steel-wire armour protects the cable core from crushing, impact and rodent damage, making it ideal for environments where the cable may be exposed to physical stress or buried without heavy conduit.
- Outdoor and UV resistance:The black PE outer jacket is formulated to resist UV degradation and weathering, extending service life when routed outdoors, across roofs, or exposed to sunlight.
- Reliable conductivity:Solid bare copper conductors provide low DC resistance and stable signal propagation — a dependable choice for Ethernet, CCTV and many PoE applications within the Cat5e performance envelope.
- Easy handling:The included ripcord and per-metre sales model let installers cut to the exact length needed, reducing waste and simplifying field preparation.
- Temperature rating:Rated from −20 °C to +80 °C, this cable can operate in a broad range of climates and industrial settings.
Use cases and scenarios where this cable excels
The SFX Cat5e armoured cable is targeted at installations that require a blend of standard Cat5e performance and enhanced mechanical protection. Typical scenarios include:
- External CCTV networks:Connecting cameras around building exteriors, car parks or perimeter fencing where cables are often exposed and vulnerable to tampering, animals or weather.
- PoE feeds to outbuildings and remote equipment:Powering access points, VoIP devices, small switches or sensors in sheds, garages, kiosks or agricultural buildings where conduits are limited or impractical.
- Industrial and utility sites:Plant areas, substations and depots where cables may be routed across floors or near machinery and require extra mechanical robustness.
- Direct-burial or shallow burial applications:Where budget or site conditions favor armoured cables over extensive conduit systems. Note: correct bedding and installation practices should still be followed for buried runs.
- Temporary or permanent external links:Site-to-site Ethernet runs, security links and perimeter networking where weather resistance and toughness are priorities.
Important installation note: SWA must be correctly terminated and bonded/earthing practices followed. Ensure a competent electrician or qualified installer completes or certifies the installation in line with local regulations.
Comparisons with similar products in the market
Unarmoured Cat5e cable is lighter, more flexible and usually cheaper per metre than its armoured equivalent, making it preferable for indoor or protected runs. However, unarmoured cable is vulnerable to mechanical damage outdoors or where rodents, impact or theft are a concern. The SFX armoured cable trades a degree of flexibility and higher cost for the peace of mind of physical protection and suitability for outdoor exposure.
Steel-wire armour delivers superior crush resistance and is often chosen for direct burial or high-abrasion environments. Aluminium armour can be lighter and easier to terminate in some circumstances but typically offers less mechanical robustness. Corrugated steel or aluminium armouring types differ in flexibility and protection; the solid SWA used in this product favours strength and rodent resistance over maximum flexibility.
If you need higher bandwidth or future-proofing for 10 Gigabit Ethernet over short distances, armoured Cat6 is the technically superior option. However, for standard Ethernet up to 1 Gbps, PoE feeding of cameras and general CCTV or access network links, Cat5e remains cost-effective and fully adequate. Choosing between Cat5e and Cat6 armoured cables comes down to performance needs, budget and the physical routing constraints of your site.
Polyethylene (PE) jackets are excellent for outdoor use because of UV and moisture resistance. By contrast, LSZH (low smoke zero halogen) jackets are specified for indoor spaces where fire safety and low toxic smoke are priorities. The SFX cable is PE-jacketed and CPR classified Fca, so check local fire and building regulations before using it in enclosed public spaces where LSZH may be mandated.
Customer feedback and installer observations
There are no formal customer testimonials supplied with this product listing, but common feedback from installers and site technicians working with armoured Cat5e cables typically includes:
- "Durability praised" many installers report that armoured cable holds up well on long outdoor runs and in spaces where mechanical stress is likely.
- "Termination requires care" competent termination and correct earthing of the armour is highlighted as essential; improper bonding undermines the protection benefits and can create safety issues.
- "Good value for outdoor CCTV/PoE" for routine camera and sensor feeds, users appreciate the balance between cost and robustness compared with conduit-heavy solutions.
- "Less flexible than unarmoured cable" the added rigidity and weight are noted, so planning for bends, catenary spans or conduit runs is important during design.
If you would like real customer quotes or project case studies, we can collect or format reviews from recent installations on request.
Conclusion: Why choose the SFX Cat5e Armoured Outdoor Ethernet Cable?
TheSFX C5-UTP-SWA-PE-BLK-1is a practical, cost-conscious choice when you need a Cat5e-rated cable that will survive outdoor exposure and mechanical hazard. It combines solid bare copper conductors, steel-wire armour and a UV-resistant PE jacket to deliver dependable performance for CCTV, PoE to remote structures, and general external Ethernet runs. While it is not a replacement for higher-spec Cat6 or fibre where greater bandwidth is required, it provides excellent value for many common applications.
Before specifying this cable, remember to confirm CPR and fire-safety requirements for your site and ensure SWA earthing/bonding is correctly implemented by a qualified person. Sold per metre for flexible ordering, and priced competitively, it is a strong option for installers seeking a robust outdoor network cable that balances performance, protection and price.
