Cat6 4pr UTP LSZH Pink 305 m Reel SFX/C6-UTP-LSZH-D-PNK-305

Introduction to Cat6 4pr UTP LSZH Pink 305 m Reel — SFX/C6-UTP-LSZH-D-PNK-305

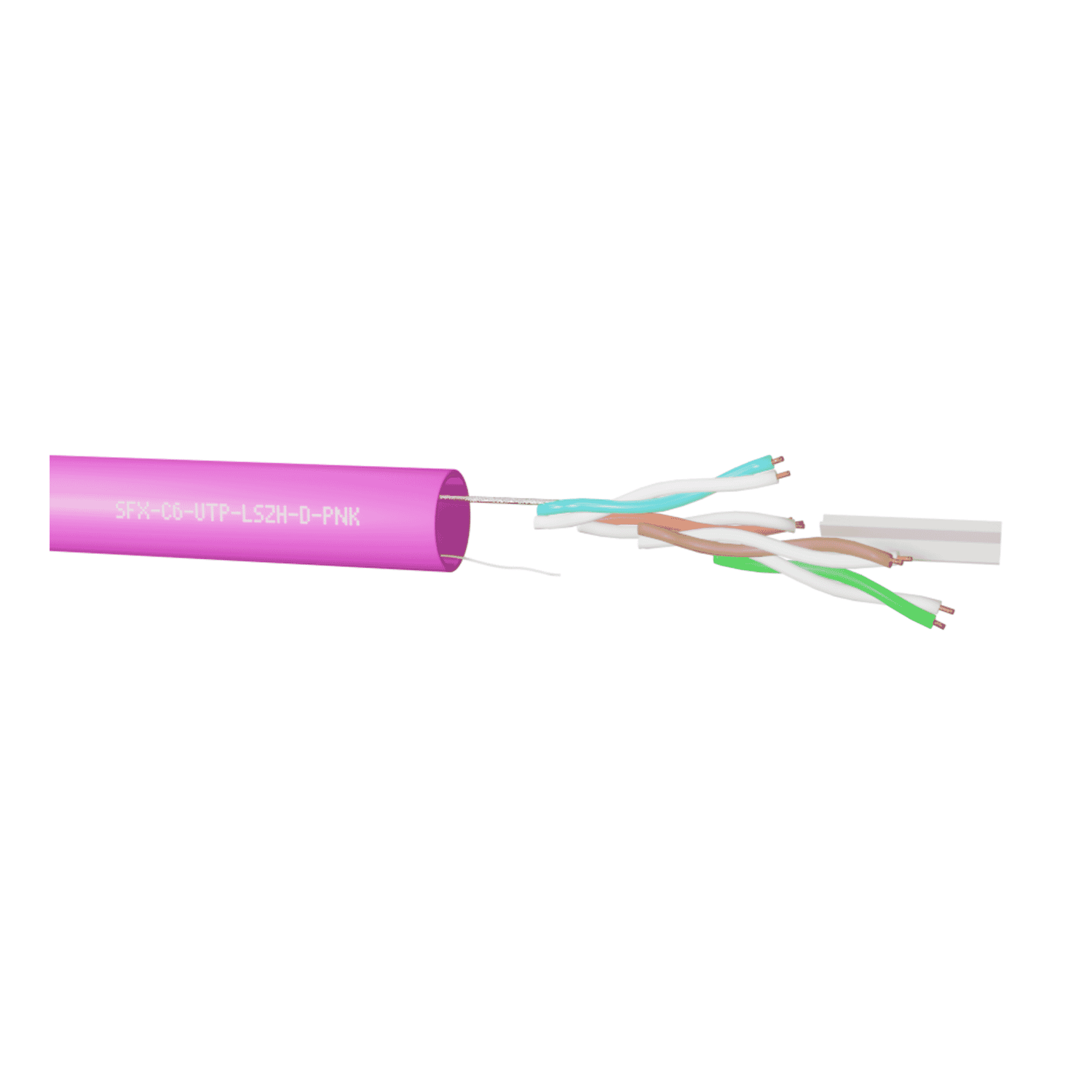

Product:Cat6 4pr UTP LSZH Pink 305 m Reel (SFX/C6-UTP-LSZH-D-PNK-305). This Category 6 bulk network cable comes on a 305 metre reel and features a low-smoke zero-halogen (LSZH) pink outer jacket (RAL 3015), solid bare copper conductors, HDPE insulation and a nylon rip-cord for fast jacket removal. Designed for structured cabling projects, colour-coded runs and gigabit Ethernet deployments, this cable combines reliable performance with safety-minded construction.

Key features at a glance

• Category 6 performance suitable for Gigabit Ethernet and standard networking.
• 4-pair unshielded twisted pair (UTP) with solid bare copper conductors (0.53 mm nominal).
• LSZH (Low-Smoke Zero-Halogen) jacket in Pink (RAL 3015) with CPR classification Dca-s2,a1,d2 for improved safety in enclosed spaces.
• 305 m reel format for convenient bulk deployment on site; nylon rip-cord included for rapid termination prep.
• Wide temperature rating (-40°C to +70°C) and low conductor DC resistance (<95 Ω/km @ 20°C).
• Supplied for horizontal/campus structured cabling, colour-coded network runs, CCTV and other gigabit Ethernet uses.

Detailed specifications and benefits

Understanding the construction and specifications of the SFX/C6-UTP-LSZH-D-PNK-305 helps explain why it is a practical choice for many installations:

• Pairs: 4-pair UTP — standard for Ethernet cabling and compatible with RJ45 terminations.
• Conductor: Solid bare copper, providing stable signal transmission over typical horizontal distances and long-term reliability where cables remain stationary.
• Conductor diameter: 0.53 ± 0.01 mm — a robust gauge that helps keep DC resistance low and supports Category 6 electrical performance.
• Insulation: HDPE (high-density polyethylene) with approximately 0.18 mm thickness — offers stable dielectric properties for consistent pair performance.
• Pair colours: Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown — standard colour coding to ease termination and troubleshooting.
• Rip-cord: Nylon rip-cord included beneath the jacket for fast and safe jacket removal without damaging inner pairs.

• Jacket material: LSZH (Low-Smoke Zero-Halogen) — reduces toxic and corrosive gas emissions in the event of fire, making it suitable for enclosed public spaces, data centres, and locations with strict fire-safety requirements.
• Jacket thickness: 0.55 ± 0.03 mm — balances mechanical protection with flexibility for routing and pulling.
• Overall diameter: 6.10 ± 0.03 mm — compatible with common cable management hardware and ducts used in structured cabling.
• Colour: Pink (RAL 3015) — ideal for colour-coded installations where rapid identification of specific networks or services is important.
• CPR classification: Dca-s2,a1,d2 — indicates a cable with limited contribution to fire spread and reduced smoke production under the Construction Products Regulation (CPR) framework.

• Category: Category 6 (Cat6) — supports Gigabit Ethernet (1000BASE-T) and other applications within Cat6 performance parameters.
• Max DC resistance: <95 Ω/km @ 20°C — helps ensure low loss across horizontal runs.
• Temperature rating: -40°C to +70°C — suitable for a wide range of indoor and some protected outdoor environments.
• Length and supply: 305 m reel — convenient bulk length for horizontal runs and rack-to-closet deployments without frequent joins.

Benefits for installers and end users

• Safety-first design: LSZH jacket plus CPR Dca rating make this cable a better choice in schools, hospitals, public buildings and other spaces where minimizing smoke and toxic gases is a priority.
• Colour-coded management: Pink jacket simplifies identification of specific circuits (for example, VoIP, CCTV, or guest networks) and reduces human error during maintenance.
• Time-saving features: Supplied on a 305 m reel with a nylon rip-cord speeds up deployment and termination prep, reducing labour time on site.
• Reliable electrical performance: Solid copper conductors and controlled insulation dimensions maintain Cat6 performance over standard horizontal distances.
• Long service life: Robust construction and compatible temperature rating help ensure sustained performance in many installation scenarios.

Use cases and scenarios where this cable excels

The specific combination of Cat6 performance, LSZH jacket and pink colour makes this cable suited to several distinct scenarios:

When running multiple services in shared conduits or distribution areas, using LSZH cabling prevents excessive smoke or corrosive gases in case of fire. The pink colour helps identify a particular service group (for example, building management, AV distribution or a dedicated CCTV network) at a glance.

In high-density environments where cable labelling and safe fire behaviour are critical, Cat6 performance supports many gigabit access links while the LSZH jacket reduces risks associated with combustion and smoke spread in enclosed areas.

Standard Cat6 cabling reliably carries PoE and PoE+ for cameras and access points. The solid conductor format is especially appropriate for fixed in-wall or ceiling runs feeding networked CCTV and security devices.

Where network segmentation is managed visually — for example separating voice, guest Wi-Fi, security systems and core data connections — coloured jacket options like pink make identification and maintenance quicker and safer.

How it compares with similar products

Choosing the right cable means balancing performance, safety, cost and installation practicality. Here are key comparisons with alternatives:

• Performance: Cat6 exceeds Cat5e in terms of crosstalk and frequency handling, making it a better choice for future-proofing and for networks that demand gigabit speeds across multiple runs.
• Cost: Cat6 typically costs more than Cat5e, but the incremental cost is often justified by improved headroom and longer relevance as bandwidth needs grow.

• Bandwidth and shielding: Cat6a offers higher frequency support and better alien crosstalk characteristics than Cat6, which is useful for 10GbE at longer distances. However, Cat6a cables are thicker, heavier and more expensive. For many horizontal runs and gigabit Ethernet needs, Cat6 is a practical compromise.
• Installability: Cat6 (6.10 mm overall diameter in this product) is easier to handle in tight pathways than many Cat6a designs.

• Safety: LSZH emits far less corrosive gas and smoke during combustion than PVC, which is important for enclosed spaces and critical infrastructure.
• Cost and flexibility: PVC can be slightly cheaper and sometimes more flexible; LSZH may be marginally stiffer. The safety benefits frequently outweigh the small trade-offs in environments where people or sensitive electronics are present.

• UTP advantages: Lighter, less costly and simpler to terminate. In many typical office or campus environments where electromagnetic interference (EMI) is manageable, UTP provides excellent performance.
• Shielding considerations: If the installation runs adjacent to heavy machinery or high EMI sources, shielded cabling (FTP or STP) can reduce interference risks. For general structured cabling and indoor networking, UTP is often the preferred choice.

Customer feedback and common installer observations

No verified third-party customer testimonials are provided here, but installers and integrators commonly report the following observations about cables with these characteristics:

• "The LSZH jacket gives us confidence in meeting fire-safety requirements for public buildings; it’s a standard spec on jobs where we serve schools and healthcare clients."
• "Colour-coded reels like this one make cable management and documentation much simpler — reduces troubleshooting time later."
• "Solid conductors on a 305 m reel are ideal for long horizontal runs and in-wall installations; the rip-cord is a small feature that saves a lot of time."
• "For standard gigabit deployments the Cat6 performance is excellent; for 10GbE uplinks we might choose Cat6a, but for most access and PoE runs this is a cost-effective option."

Practical considerations before purchase

• Length and logistics: 305 m reels are convenient for covering multiple horizontal drops from a wiring closet; plan reel storage and pull routing to avoid kinks or damage.
• Termination: Use certified Cat6 compliant keystone jacks and patch panels to preserve performance. Follow the manufacturer’s datasheet and local wiring standards when terminating and testing runs.
• Safety and code: Confirm CPR/LSZH requirements for your jurisdiction and building type. This cable’s Dca-s2,a1,d2 rating typically meets many construction and safety policies, but always verify local code compliance.
• Warranty: This product is supplied without a manufacturer warranty in the provided details; confirm warranty and return policies with your supplier if that is a requirement for your project.
• Price indication: Retail reference pricing for this product is commonly in the range of mid-hundreds per reel depending on supplier and order quantity; check current pricing for accurate budgeting.

Conclusion

The SFX/C6-UTP-LSZH-D-PNK-305 Cat6 4-pair UTP cable on a 305 m reel is a versatile, safety-conscious and installer-friendly choice for many structured cabling projects. It combines Category 6 electrical performance with solid bare copper conductors, an LSZH pink jacket for easy identification and improved fire-safety characteristics, and practical installation features such as a nylon rip-cord and a convenient reel length. Whether you are deploying gigabit Ethernet in an office, installing CCTV and PoE devices, or implementing colour-coded network segmentation in a public building, this cable offers a balance of performance, safety and manageability that makes it a compelling option for professional installations.
