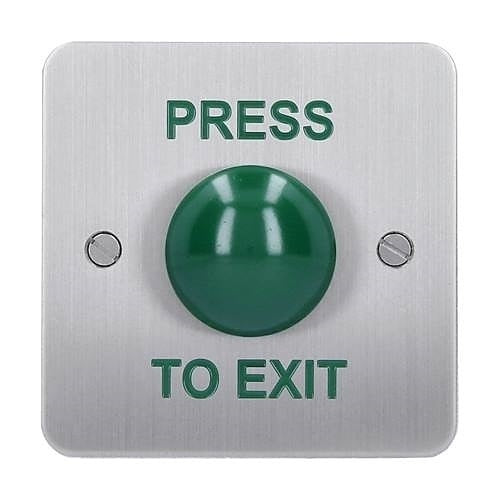

CDVI RTE-SSD exit button, IP67

CDVI RTE-SSD is an exit button from the RTE range.

This page covers CDVI part RTE-SSD. Everything below is recorded against that exact part number rather than against the wider range it belongs to.

The figures held against it cover application/usage, packaged quantity, gang type among others. Anything not listed we have not stated.

Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.

Key features

• Application/Usage: College, Commercial, Door, Industrial, Public Building, School. This is the figure the record carries for this exact part number.
• Packaged Quantity: 1. Parts in the same family can differ here, so check the code rather than the family.
• Gang Type: Single Gang. It is listed for this part number, not for the range as a whole.
• Number of Buttons: 1. Where your specification names a figure, compare it against this one before ordering.
• Ingress protection: Rated IP67, which under the rating scale means dust-tight and rated against temporary immersion. Parts in the same family can differ here, so check the code rather than the family.
• RoHS compliance: Recorded as compliant with the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. This is the figure the record carries for this exact part number.
• WEEE compliance: Recorded as compliant with the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. Where your specification names a figure, compare it against this one before ordering.
• Colour: Silver. It is listed for this part number, not for the range as a whole.
• Depth: 29.00mm. This is the figure the record carries for this exact part number.
• Height: 85.00mm. Parts in the same family can differ here, so check the code rather than the family.
• Material: Stainless Steel. It is listed for this part number, not for the range as a whole.
• Weight: 0.33kg. Where your specification names a figure, compare it against this one before ordering.
• Width: 85.00mm. Parts in the same family can differ here, so check the code rather than the family.
• Finishing: Stainless Steel. This is the figure the record carries for this exact part number.

Use cases

Specify this part where the exit button role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.

• Where it goes: Recorded for indoor, outdoor use.
• Mounting: Recorded as surface mount.
• Typical application: College, Commercial, Door, Industrial, Public Building, School.
• Exposure: Rated IP67, which under the rating scale means dust-tight and rated against temporary immersion.

If you are matching this to an existing installation, work from the RTE-SSD part number rather than the description.
