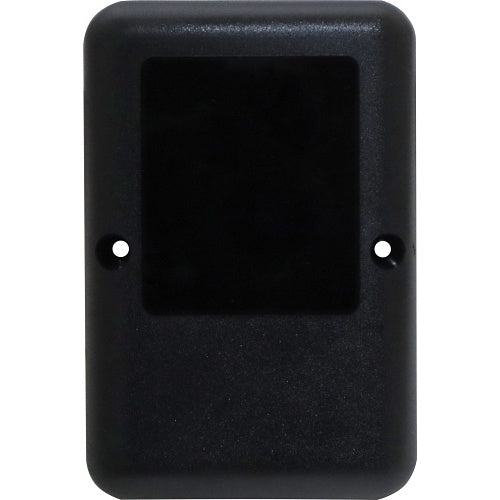

CDVI SEF2410 gate transmitter, Black
About this product
Please note: this is a non-returnable item (excluding faulty goods)
CDVI SEF2410 is a gate transmitter.
This infrared photocell is ideal for protecting the active zone on automatic swing/sliding doors and gates. By triggering the moving unit to automatically stop if a person or obstacle is detected in the zone, injuries and accidental damage can be prevented. This model has a 10m range between the transmitter producing the infrared beam, and the receiver picking it up at the other end.
If the beam is interrupted, the desired action (such as halting machinery) is triggered.
Key features
- Active infrared photocell
- Ideal for protecting active machinery zones such as automatic doors
- Trigger immediate stoppage of machinery when a person is detected
- Flat models for discreet mounting
- Up to 10m range between beam transmitter and receiver
If you are matching this to an existing installation, work from the SEF2410 part number rather than the description.
Specifications
General information
Technical information
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | CDVI |
|---|---|
| Manufacturer Part Number | SEF2410 |
| Product Type | Gate Transmitter |
General information
| Application/Usage | Door, Gate |
|---|
Technical information
| Wireless Technology | Infrared |
|---|
Physical characteristics
| Colour | Black |
|---|---|
| Depth | 61.00mm |
| Height | 25.40mm |
| Material | Polycarbonate |
| Weight | 190.00g |
| Width | 88.90mm |
Power description
| Input Voltage | 12V AC, 12V DC, 24V AC, 24V DC |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 12V AC, 12V DC, 24V AC, 24V DC |
| Weight | 190.00g |
