CDVI MOONARWB Flush Proximity Reader (125 kHz, Wiegand 26/30/44)

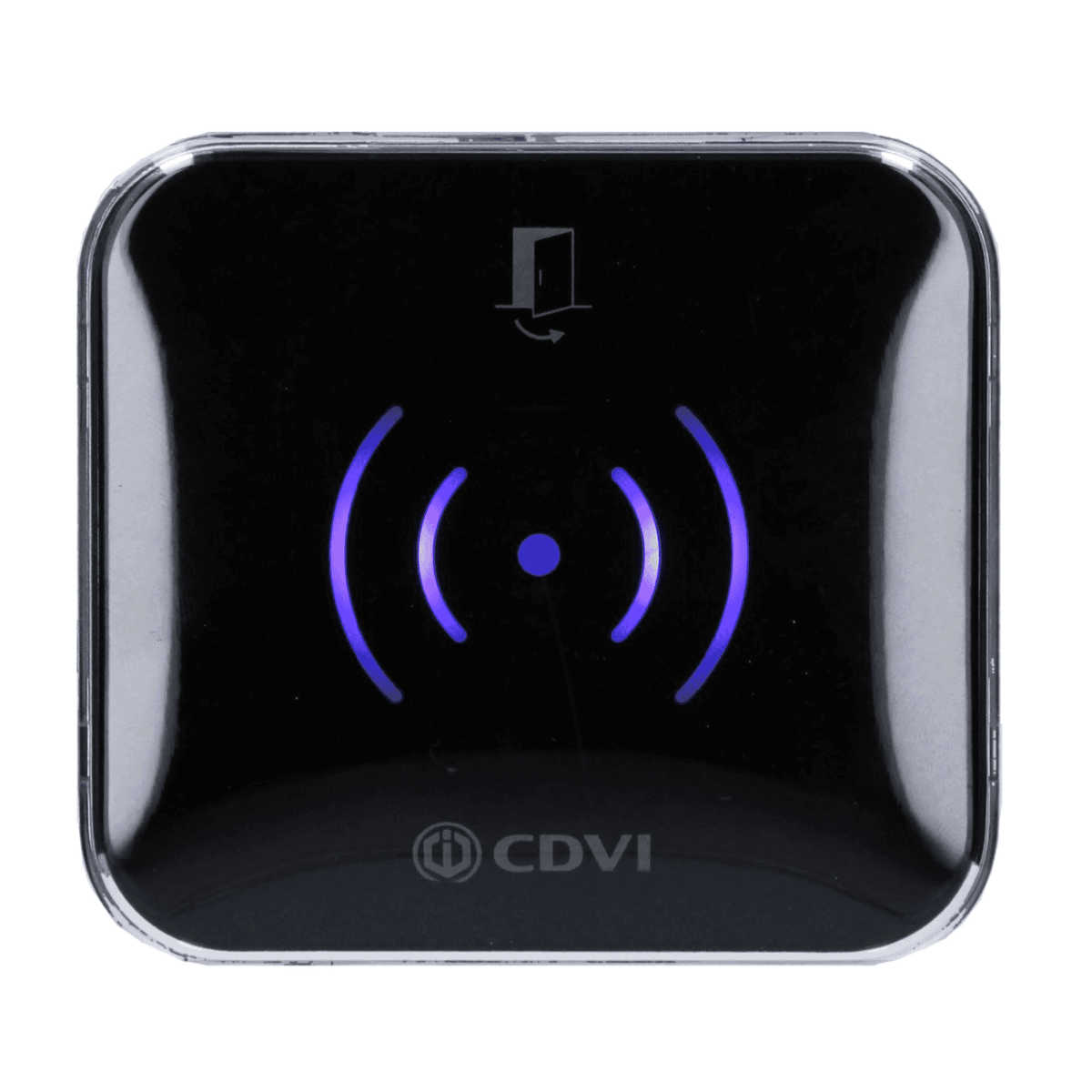

Introduction: Meet the CDVI MOONARWB Flush Proximity Reader

With Wiegand output (selectable 26 / 30 / 44 bits), multi‑colour LED backlight, audible feedback and supplied black and white covers, the MOONARWB targets installers and integrators who need a simple, reliable reader that blends into commercial or residential interiors.

Key Features at a Glance

• Flush/recessed mounting for a discreet installation; black and white covers included.
• 125 kHz proximity technology with Wiegand output (26 / 30 / 44 bits) for broad controller compatibility.
• Multi‑colour LED backlight and audible feedback for clear user status indications (standby, accepted, denied).
• Low power consumption and resin‑potted electronics for enhanced durability in demanding environments.
• Compact dimensions (92 × 84 × 12.5 mm) and polycarbonate construction for easy flush installation.
• Distributor‑listed warranty of up to 10 years (verify region-specific warranty and certifications).

Detailed Specifications and Practical Benefits

• Technology:125 kHz proximity; compatible with standard prox cards and fobs.
• Read range:Approximately 4–10 cm (varies with credential type and orientation).
• Output / Protocol:Wiegand selectable 26 / 30 / 44 bits, enabling integration with many access control panels and third‑party controllers.
• User capacity:Up to 10,000 users when paired with compatible controller systems such as the CDVI ATRIUM A22 (controller‑dependent).

• Supply voltage:12 V DC nominal.

• Dimensions:92 × 84 × 12.5 mm — slim profile for neat recessed installation.
• Material & finish:Polycarbonate housing; supplied black and white covers allow the reader to match many interior aesthetics.
• Mounting:Designed for flush/recessed mounting; keeps the reader unobtrusive and less prone to accidental knocks.
• Durability:Resin‑potted electronics for moisture and vibration resistance; listed IP52 rating for limited exterior exposure and IK10 (reported on one CDVI page — verify for your region).
• Operating temperature:−25 °C to +70 °C, covering most indoor and sheltered outdoor environments.

• Discreet aesthetics:Flush installation and interchangeable covers make the reader a good choice where visual impact must be minimal — lobbies, high‑end residential doors, corporate meeting rooms.
• Broad compatibility:Wiegand outputs (26/30/44) mean the reader will work with a wide range of existing access control systems without custom protocol converters.
• User experience:Colour LED cues and audible feedback reduce user confusion and speed throughput at entry points.
• Durability:Resin potting and robust polycarbonate construction increase longevity; low current draw reduces power demands on the system.

Use Cases and Scenarios Where the MOONARWB Excels

• Commercial offices and coworking spaces:Flush mounting keeps finishes clean and professional while the LED/sound feedback aids staff and visitors.
• Residential blocks and managed apartment entrances:Suitable for communal entry points where a neat, built‑in reader is preferred.
• Retail and hospitality back‑of‑house doors:Discreet placement behind counters or within service corridors helps maintain aesthetics without sacrificing functionality.
• Integration projects with legacy controllers:Many buildings still use Wiegand‑based access controllers; the MOONARWB’s selectable Wiegand formats simplify upgrades or phased rollouts.
• Installations with limited exterior exposure:IP52 rating allows use in sheltered outdoor entrances or covered walkways — confirm if exposure to heavy weather is expected and select a higher-rated reader if needed.

Comparisons with Similar Products on the Market

When choosing a proximity reader, consider the balance of form, compatibility and durability. The MOONARWB sits in a category of compact, flush‑mount 125 kHz readers. Here’s how it compares to typical alternatives:

• Surface‑mount proximity readers:Surface models are easier to install on many substrates and may offer higher IP ratings for exposed locations. MOONARWB’s advantage is a cleaner, recessed finish for polished interiors.
• Higher frequency / smart card readers (13.56 MHz like MIFARE):HF readers support encrypted credentials and more advanced features. The MOONARWB operates at 125 kHz and is aimed at legacy prox systems; if you need contactless smart card security and encryption, choose a 13.56 MHz reader instead.
• Wiegand vs networked readers (TCP/IP or OSDP):Wiegand remains common and simple; the MOONARWB’s Wiegand 26/30/44 support ensures broad compatibility. For projects seeking encrypted communications and device management over a network, OSDP or IP readers offer advantages but may require more complex controllers.
• Flush readers from other brands:Many manufacturers offer recessed readers with similar aesthetics. The MOONARWB stands out for its included covers in both colours and distributor‑listed long warranty, though buyers should confirm regional certification and stock status before committing.

Conclusion: Why Choose the CDVI MOONARWB?

The CDVI MOONARWB Flush Proximity Reader is a practical choice when you need a low‑profile, Wiegand‑compatible 125 kHz reader that blends into interiors. Its compact recessed design, included black and white covers, multi‑colour LED and audible feedback make it particularly well suited for commercial and residential environments where aesthetics and straightforward user interaction matter.

Key reasons to consider the MOONARWB include its broad controller compatibility via selectable Wiegand formats, resin‑potted durability, modest power draw and the option of a distributor‑listed 10‑year warranty (verify region‑specific terms).
