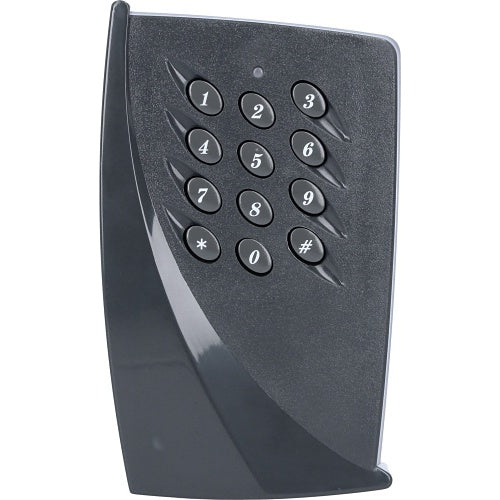

CDVI PROMI-ECO mount polycarbonate keypad, Silver

£ 74 53
(Incl. VAT) RRP: £89.44
Save £14.91

About this product

CDVI PROMI-ECO is a mount polycarbonate keypad.

The PROMI ECO from CDVI offers a good value, entry level keypad ideally suited for securing non-harsh environments where a simplified control of access is required. Manufactured in sturdy polycarbonate, the keypad offers 100 user codes - the adding and deleting of codes, along with door release time etc, is carried out at the keypad via a master programming code. A timed relay takes care of all forms of locking device, and an exit button input completes the product to provide access control for a single door.

The unit operates at 12V ac or dc, consuming 20mA in standby and 80mA when active. Programming of the unit is very simple. A master code is entered which allows access to the programming menu - from there, codes can be added or deleted, code lengths can be determined (3-8 digits in length) and the lock relay can be set as timed between 1 and 99 seconds or as latched (toggle between on & off).

Programming is also assisted with visual and audible feedback.

Key features

  • Cost-effective, reliable keypad for simple access control projects
  • Constructed in sturdy polycarbonate
  • Up to 100 user codes
  • Compact design with low-rise surface mount
  • PIN-protected programming mode
  • PIN protected programming
  • Internal or external use
  • Exit button input
  • Simple surface mount

If you are matching this to an existing installation, work from the PROMI-ECO part number rather than the description.

£ 74 53
RRP: £89.44 Save £14.91
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£74.53 Incl. VAT £89.44
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
CDVI
Manufacturer Part Number
PROMI-ECO
Product Type
Keypad
General information
Application/Usage
Access Control System, Commercial, Public Building, Small Business
Packaged Quantity
1
Technical information
Identification Method
PIN/Passcode
Number of Doors
1
Number of Users
100
Certifications
CE marking
Yes
Physical characteristics
Colour
Silver
Depth
28.00mm
Height
145.00mm
Weight
0.20kg
Width
80.00mm
Power description
Input Voltage
12V DC
Product information
Mount Type
Surface Mount
Miscellaneous
Environmental status
Yes
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
12V DC
Weight
0.20kg

Specifications

Brand Name CDVI
Manufacturer Part Number PROMI-ECO
Product Type Keypad

General information

Application/Usage Access Control System, Commercial, Public Building, Small Business
Packaged Quantity 1

Technical information

Identification Method PIN/Passcode
Number of Doors 1
Number of Users 100

Certifications

CE marking Yes

Physical characteristics

Colour Silver
Depth 28.00mm
Height 145.00mm
Weight 0.20kg
Width 80.00mm

Power description

Input Voltage 12V DC

Product information

Mount Type Surface Mount

Miscellaneous

Environmental status Yes
Indoor or outdoor use Indoor, Outdoor

Attributes

Input Voltage 12V DC
Weight 0.20kg

CDVI PROMI-ECO mount polycarbonate keypad

CDVI PROMI-ECO mount polycarbonate keypad, Silver

Who this is for

For the installer — this is the mount polycarbonate keypad supplied under CDVI part number PROMI-ECO. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a mount polycarbonate keypad made by CDVI. The part number PROMI-ECO is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this mount polycarbonate keypad is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact mount polycarbonate keypad I have been quoted? Check the manufacturer part number PROMI-ECO against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against PROMI-ECO answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
