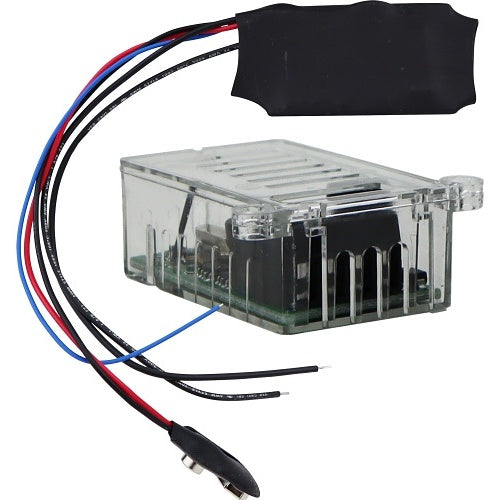

CDVI OPR-KIT nano receiver kit, 1
About this product
CDVI OPR-KIT is a nano receiver kit.
The OPR-KIT allows you to create your own wireless device. Especially useful where it is difficult to install cables, this kit is ideal for remotely located disabled buttons, etc. – in fact, anything that operates a switch can be converted into a radio control. Simple installation of the pre-wired transmitter into a switching device, and “learning” the switching device into the receiver creates very fast communication between devices in challenging site environments.
The receiver can memorise up to 85 CDVI radio transmitters, increasing the kit’s flexibility. The transmitter uses a 9V battery, which typically lasts 2 years before replacement.
Key features
- Includes a universal transmitter and RX26-NANO receiver
- Converts any switch to a radio device
- Up to 200m range in open field
- Ideal for use where wiring is impractical
- Ideal for use where wiring is impractical
If you are matching this to an existing installation, work from the OPR-KIT part number rather than the description.
-
Download
- OPR-KIT — Product Manual
Specifications
General information
Technical information
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | CDVI |
|---|---|
| Manufacturer Part Number | OPR-KIT |
| Product Type | Gate Transmitter |
General information
| Application/Usage | Commercial, Garage Door, Gate, Industrial, Public Building, Roller Shutter |
|---|---|
| Packaged Quantity | 1 |
Technical information
| Channel Frequency | 433.92MHz |
|---|---|
| Connectivity Technology | Wired |
| Maximum Operating Distance | 200m |
| Number of Channels | 1 |
| Wireless Technology | RF |
Physical characteristics
| Colour | Clear |
|---|---|
| Depth | 20.00mm |
| Height | 50.00mm |
| Width | 32.00mm |
Power description
| Input Voltage | 24V AC, 9V DC |
|---|---|
| Power Source | AC Power, DC Power |
Miscellaneous
| Compatibility | CDVI radio transmitters |
|---|---|
| Environmental status | Yes |
| Features | Battery-powered transmitter, Convert any switch to wireless, Discreet mini receiver, Ideal for listed buildings or glass walls |
Attributes
| Compatibility | CDVI radio transmitters |
|---|---|
| Input Voltage | 24V AC, 9V DC |
| Package Contents | NANO receiver; Universal transmitter |
| Power Source | AC Power, DC Power |
