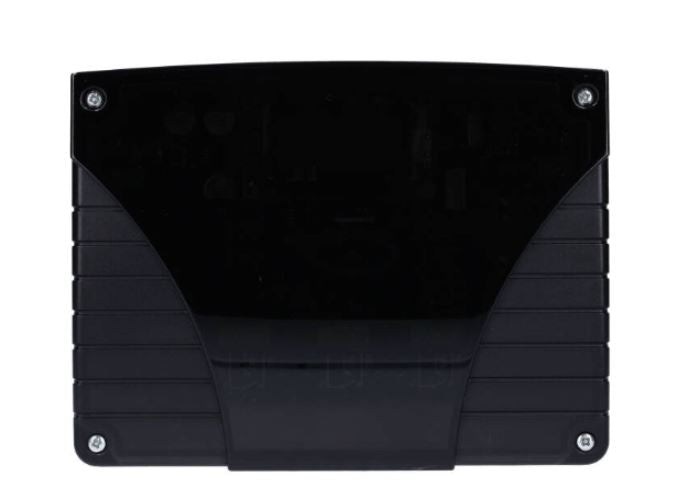

CDVI RX26-XPL4P receiver, Polycarbonate
About this product
Please note: this is a non-returnable item (excluding faulty goods)
CDVI RX26-XPL4P is a receiver.
The RX26-XPL4P allows the easy operation and programming of the RX26-XPL whilst increasing the memory to 500 transmitters. The internal data can be saved and restored to/from an external memory (MEM-XPL). Each relay can be separately configured for pulse, timed or latch modes, with a maximum contact rating of 24VA at 60V.
Security is upheld by the use of Keeloq rolling code decryption. The RX26-XPL4 also comes in 230 Vac version (RX26-XPL4V). An input is available for the SEA433 tuned aerial.
Key features
- 4-relay radio frequency receiver
- Memory for up to 500 transmitters
- Transmissions protected by KeeLoq® hopping code
- IP55 rated polycarbonate enclosure
- Can have reception range enhanced by SEA433 tuned aerial
- Also available in 230Vac version
If you are matching this to an existing installation, work from the RX26-XPL4P part number rather than the description.
Specifications
Physical characteristics
Attributes
Specifications
| Brand Name | CDVI |
|---|---|
| Manufacturer Part Number | RX26-XPL4P |
| Product Type | Relay |
Physical characteristics
| Height | 155.00mm |
|---|---|
| Material | Polycarbonate |
| Weight | 0.13kg |
Attributes
| Environmental status | Yes |
|---|---|
| Weight | 0.13kg |
CDVI RX26-XPL4P receiver, Polycarbonate
