CDVI RTE-WIR Touchless Infrared Exit Switch, Brushed Stainless, 12-24 V, E0931000366

Introduction to the CDVI RTE-WIR Touchless Infrared Exit Switch

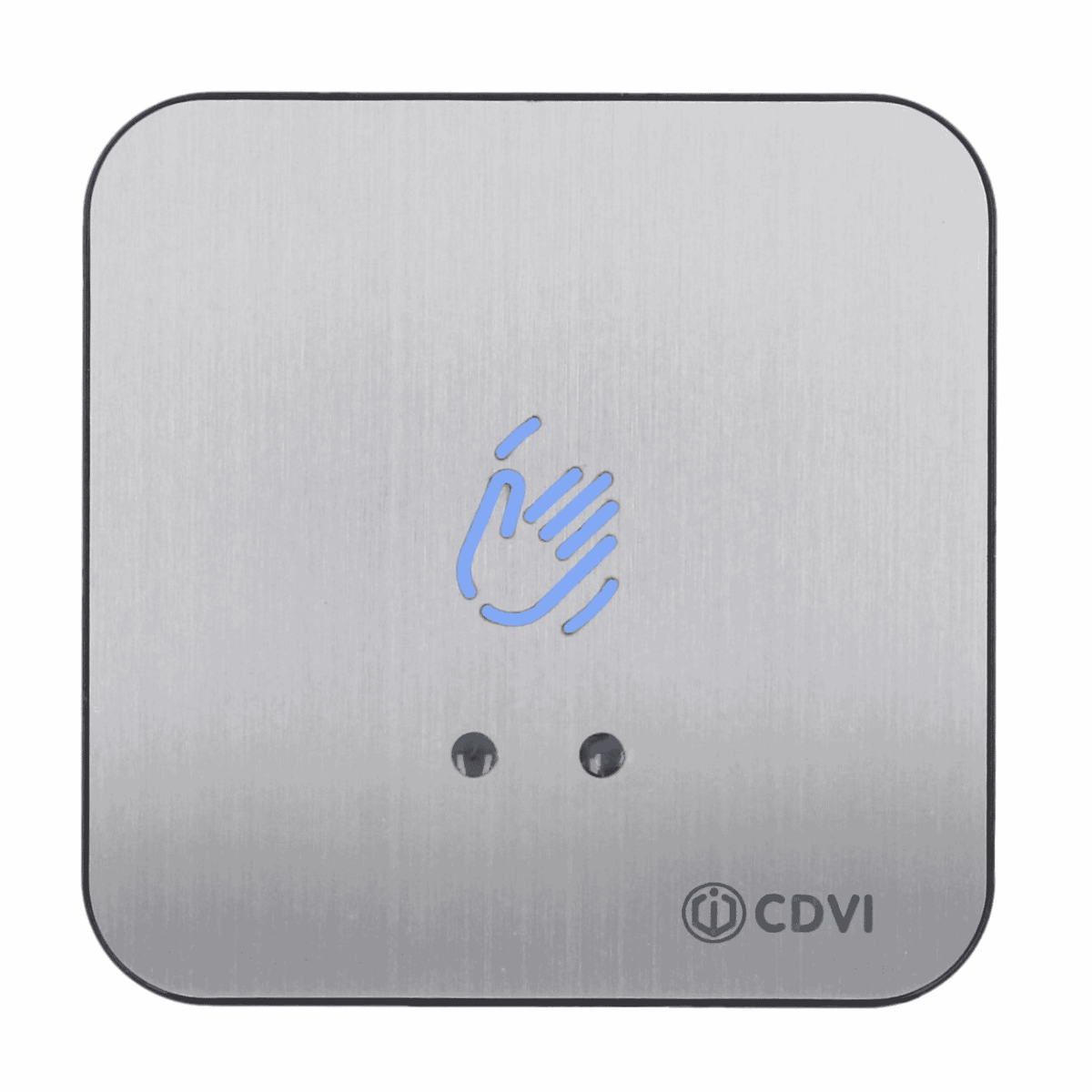

CDVI RTE-WIR Touchless Infrared Exit Switch, E0931000366is a surface‑mount, wave‑to‑exit sensor designed for hygienic, high‑traffic access control applications. Housed behind a brushed stainless‑steel faceplate with a black ABS back box, the unit offers touchless infrared activation, an adjustable detection range and a timed relay output for direct connection to access control systems or door release inputs. Rated for 12–24 Vdc operation, compact dimensions (approx. 86 × 86 × 14 mm) and a bi‑colour LED for status feedback make the RTE-WIR a practical choice where cleanliness, reliability and tidy retrofit installation matter.

Key features at a glance

• Touchless activation:Infrared wave‑to‑exit sensor — simply wave a hand to trigger the relay.
• Adjustable detection:Range approximately 3–15 cm, configurable for sensitivity and to avoid false triggers.
• Timed relay:Single SPDT output (NO/NC/COM) with adjustable timer from 0.1–30 s.
• Robust finish:Brushed stainless‑steel faceplate with black ABS surface‑mount back box for tidy, vandal‑resistant installation.
• Compact and efficient:Low current consumption (~45 mA operating; ~13 mA standby) and mechanical life of around 500,000 cycles.

Detailed specifications and the benefits they deliver

Understanding the RTE-WIR’s technical details clarifies why it is a good fit for many access control situations. Below are the main specifications and the practical benefits each provides.

• Model / Ref: RTE-WIR (CDVI ref E0931000366)
• Mounting: Surface mount (fits standard UK back box format)
• Sensor technology: Infrared (touchless)
• Detection range: Approx. 3–15 cm (adjustable)
• Relay output: 1 × SPDT (NO/NC/COM), timed 0.1–30 s
• Contact rating: 2 A @ 24 Vdc
• Supply voltage: 12–24 Vdc
• Current consumption: ≈ 45 mA (operating); ≈ 13 mA (standby reported)
• Mechanical life: ~500,000 cycles
• Operating temperature: −20 °C to +55 °C
• Dimensions: 86 × 86 × 14 mm (approx.)
• Finish: Brushed stainless‑steel faceplate, black ABS back box
• Documentation: CDVI product page and manual (datasheet/quick start available)

• Hygiene:Infrared touchless activation eliminates touch points, reducing cross‑contamination in hospitals, clinics, food service areas and other sensitive environments.
• Retrofit friendly:Surface‑mount format and standard back‑box footprint make it quick to install in existing doorways without major cutting or wall work.
• Flexible integration:Single SPDT relay with NO/NC/COM terminals and adjustable timer makes the RTE-WIR compatible with most access control panels, magnetic locks and electric strike inputs.
• Robust everyday use:Stainless finish and an estimated mechanical life of ~500,000 cycles provide long service life even in busy doors.
• Visual feedback:Bi‑colour LED gives installers and users instant confirmation of sensor state — helpful during commissioning and daily use.
• Power flexibility:12–24 Vdc operation suits a wide range of security power supplies commonly used on access control systems.

Use cases and scenarios where the RTE-WIR excels

The RTE-WIR has been designed with hygiene and retrofit simplicity in mind. Typical scenarios where it outperforms standard mechanical devices include:

• In hospitals and clinics, handwashing and contamination control are priorities. A touchless exit reduces the number of surfaces staff and patients must touch, lowering infection risk.
• Operating theatres, isolation wards and clean rooms benefit from non‑contact exit control to maintain sanitary conditions.

• Schools, colleges and municipal buildings experience heavy footfall and need reliable, vandal‑resistant exit controls that are easy to maintain.
• Surface mounting keeps installation fast and tidy in older buildings where flush wiring may be difficult.

• Back‑of‑house doors in retail and hospitality benefit from quick, contactless exit for staff carrying items or wearing gloves.
• The brushed stainless finish provides a clean, professional look that fits modern interiors.

• Food safe environments require minimized contact with door hardware. The RTE-WIR reduces contamination risk while allowing staff to pass items through quickly.

Comparisons with similar products on the market

When considering a touchless exit switch, buyers often compare infrared wave sensors like the RTE-WIR with other solutions such as mechanical push buttons, capacitive touch switches, and presence detectors (PIR). Here’s how the RTE-WIR stacks up in practical terms:

• Versus mechanical push buttons:Mechanical buttons are inexpensive and simple but require physical contact, increasing contamination risk and wear. The RTE-WIR eliminates contact and offers comparable durability with reduced maintenance.
• Versus capacitive touch switches:Capacitive switches can be touchless or touch‑sensitive and look sleek, but can be affected by gloves or moisture. Infrared detection is generally more consistent when users wear gloves or work in wet conditions.
• Versus PIR presence sensors:PIR presence sensors detect movement over a broader area and are ideal for automated doors, but they can be triggered unintentionally and may not provide the clear intentional activation that a wave‑to‑exit sensor affords. The RTE-WIR’s adjustable short range (3–15 cm) reduces false activations while still being convenient.
• Versus competitors’ wave sensors:Many manufacturers offer wave‑to‑exit devices with similar functionality. The RTE-WIR’s strengths lie in its compact stainless finish, straightforward relay wiring compatible with standard access control, and focused adjustment of range and timer. Buyers should compare contact ratings, IP/vandal ratings and certifications when choosing between brands.

When budgeting, account for installation labor, any required access control integration, conduit or cabling work, and potential additional back‑box or mounting hardware if the surface mount requires modifications.

Conclusion: Why the CDVI RTE-WIR is a solid choice

The CDVI RTE-WIR Touchless Infrared Exit Switch combines hygienic, contactless activation with straightforward access control integration. Its adjustable detection range and timer, compact stainless‑steel finish, low power draw and SPDT relay output make it an adaptable option for healthcare, education, retail and public environments. For retrofit projects where a tidy surface mount and vandal‑resistant appearance are important, the RTE-WIR offers a practical balance of features, reliability and ease of installation.

With correct setup and tuning, the RTE-WIR can help reduce contact points, improve user experience and provide reliable exit control in demanding, high‑traffic locations.
