Adastra: 952.347UK, Ceiling Boundary Microphone, Omnidirectional, Phantom Powered, 20mm Cutout Size, 76g

Product Overview & Key Benefits

The Ceiling Boundary Microphone is a low-profile audio solution designed for mounting in a ceiling or panel setting. With its omnidirectional pick-up pattern, this microphone is ideal for applications requiring discreet audio surveillance or amplification. It excels in various environments, making it perfect for businesses, lecture halls, or any setting where clear audio capture is critical.

Key benefits include:

• Discreet and unobtrusive design
• High-quality audio pickup suitable for CCTV and audio monitoring
• Easy installation with phantom power requirements

Technical Specifications & Product Details

The following specifications highlight the remarkable features of the Ceiling Boundary Microphone:

• Model:CBM20
• Weight:76g
• Dimensions:72mm diameter, 32mm depth
• Cutout Size:20mm diameter
• Impedance:200 Ohms ±30% (at 1 kHz)

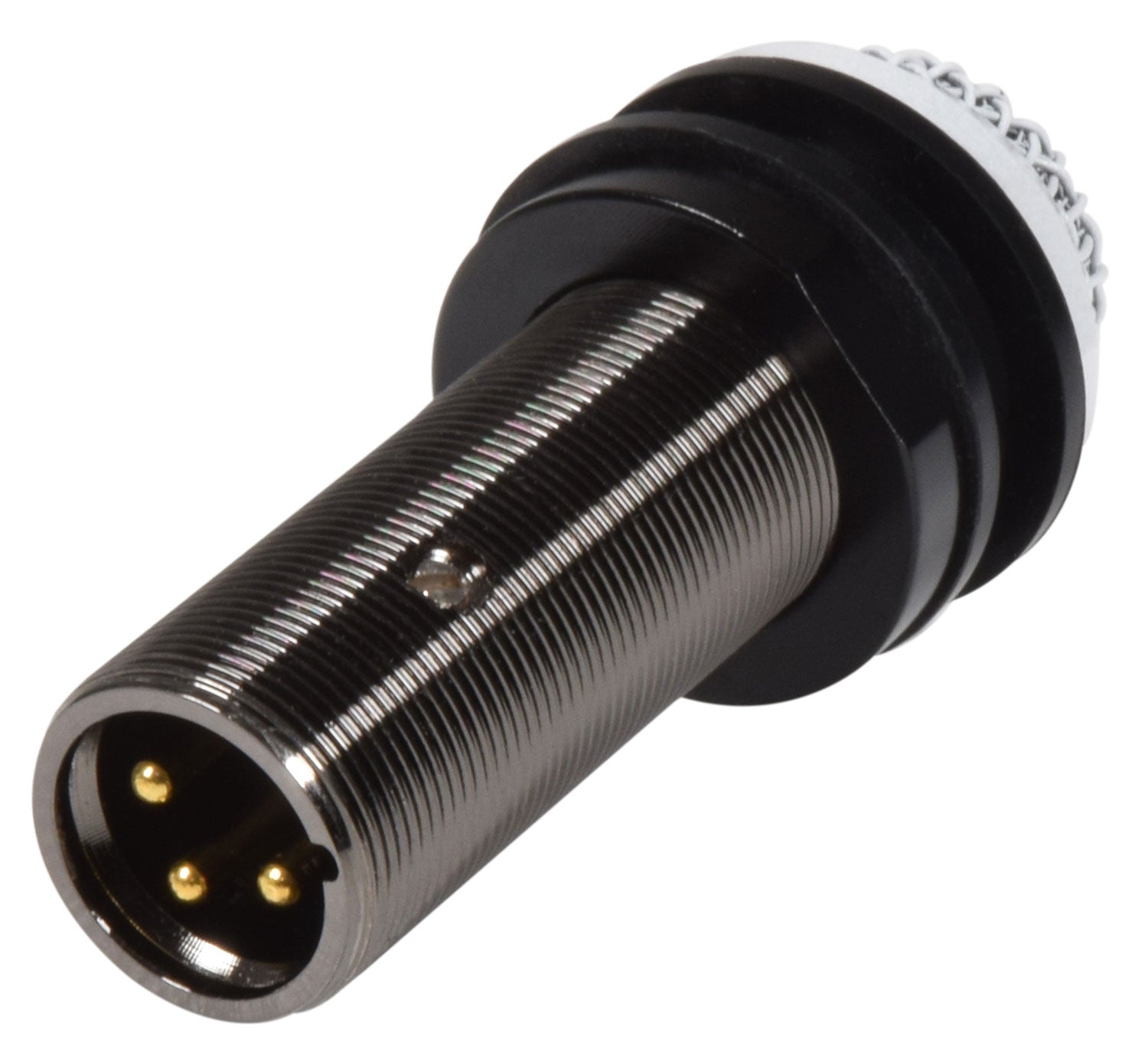

• Connection Type:XLR male
• Sensitivity:-39dB ±3dB (0dB=1V/Pa at 1kHz)
• Power Supply:9-52Vdc phantom power
• Max. Input SPL:140dB @ 1kHz (≤1% THD)
• Frequency Response:50Hz-17kHz
• Materials:Durable construction for longevity
• Colour Options:Available in standard finishes to match various environments

Ideal Uses & Applications

The versatility of the Ceiling Boundary Microphone makes it suitable for a wide range of applications, including:

• Commercial Buildings:Ideal for conference rooms and meeting spaces where ambient noise control is crucial.
• Educational Settings:Perfect for classrooms and lecture halls requiring discreet and effective audio capture during lessons.
• Hospitality Industry:Utilised in restaurants and hotels for ambient sound capture and audio monitoring.
• Broadcasting:Serves well in studios for professional audio recordings and live broadcasting scenarios.
• Security Systems:Works effectively with induction loop systems and CCTV setups to provide clear audio monitoring.

Energy Efficiency & Cost Savings

This microphone is designed with eco-friendliness in mind, operating using phantom power within a modest voltage range of 9-52Vdc. By selecting this innovative technology, users can save on energy consumption compared to traditional powered microphones. Ideal for sustainable practices, the Ceiling Boundary Microphone allows users to maintain a low environmental impact while achieving high-quality audio performance.

By integrating this microphone into your audio systems, you contribute to energy efficiency and potentially reduce operational costs associated with audio capture and surveillance.

Choose the Ceiling Boundary Microphone for a professional, energy-efficient audio solution that meets the demands of modern environments.
