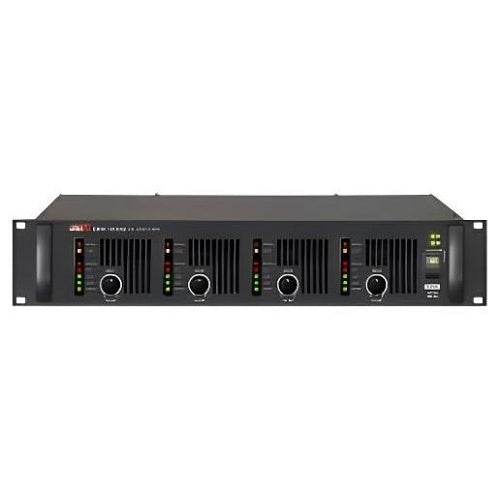

CIE Group DPA300Q power amplifier
About this product
Please note: this is a non-returnable item (excluding faulty goods)
CIE Group DPA300Q is a power amplifier from the DPA-SERIES range.
The Inter-M DPA300Q is a Quad-Channel (4 x 300W) 100v Line Class D Power Amplifier for professional, zoned PA, AV and background music installations and rackbuilds. Housed in a discreet and compact 2U casing, this 4 x 300W, 100v line, four-Channel Power Amplifier offers both size and weight reduction benefits.
Key features
- Quad-Channel, 4 x 300W output
- Class-D High-efficiency, high power amplifier
- 100v/70v selector
- Only 2U rack height
- AC and DC power operation
- Switch mode power supply
- Priority function activated by voltage-free contact closure
- Remote power ON/OFF control via control input
If you are matching this to an existing installation, work from the DPA300Q part number rather than the description.
-
Download
- DPA300Q — User Manual
Specifications
Technical information
Audio
Energy & performance
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | CIE Group |
|---|---|
| Manufacturer Part Number | DPA300Q |
| Product Series | DPA-SERIES |
| Product Type | Amplifier |
Technical information
| Audio Channels | 4 |
|---|---|
| Classification | Class D |
| Frequency Band | 50.00Hz |
Audio
| Maximum Frequency Response | 20kHz |
|---|---|
| Minimum Frequency Response | 30Hz |
| RMS Output Power | 300W |
| Total Harmonic Distortion (THD) | < 0.1% |
Energy & performance
| Operating Power Consumption | 1200W |
|---|
Physical characteristics
| Depth | 450.00mm |
|---|---|
| Height | 88.00mm |
| Width | 482.00mm |
Power description
| Input Voltage | 220-240V AC |
|---|
Attributes
| Input Voltage | 220-240V AC |
|---|---|
| RMS Output Power | 300W |
