Citronic: 170.862UK, CMA-series Compact Mixer, 2 Mono + 2 Stereo, DSP, Bluetooth, USB, 5Vdc

Product Overview & Key Benefits

The CMA-series Compact Mixers with DSP, USB Play/Record/PC, and Bluetooth are designed for audio professionals and enthusiasts seeking versatility and high-quality sound in a compact format. This mixer is ideal for live performances, studio recordings, or home setups. With features like multiple input channels, Bluetooth connectivity, and a built-in DSP effects engine, it’s perfect for musicians, podcasters, and content creators who require reliable audio mixing capabilities.

Technical Specifications & Product Details

The CMA-series Compact Mixers come with an impressive array of technical specifications that cater to professional audio needs:

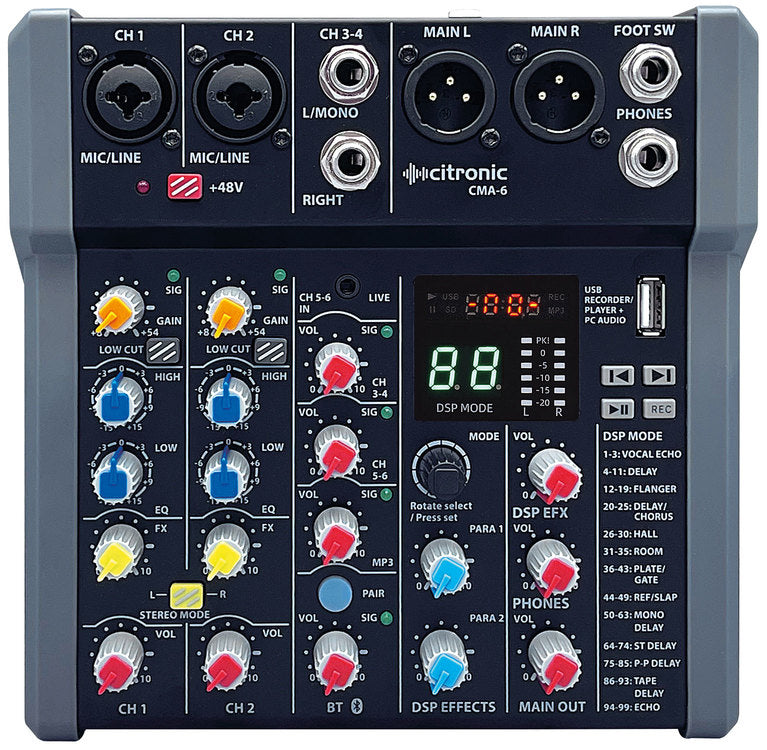

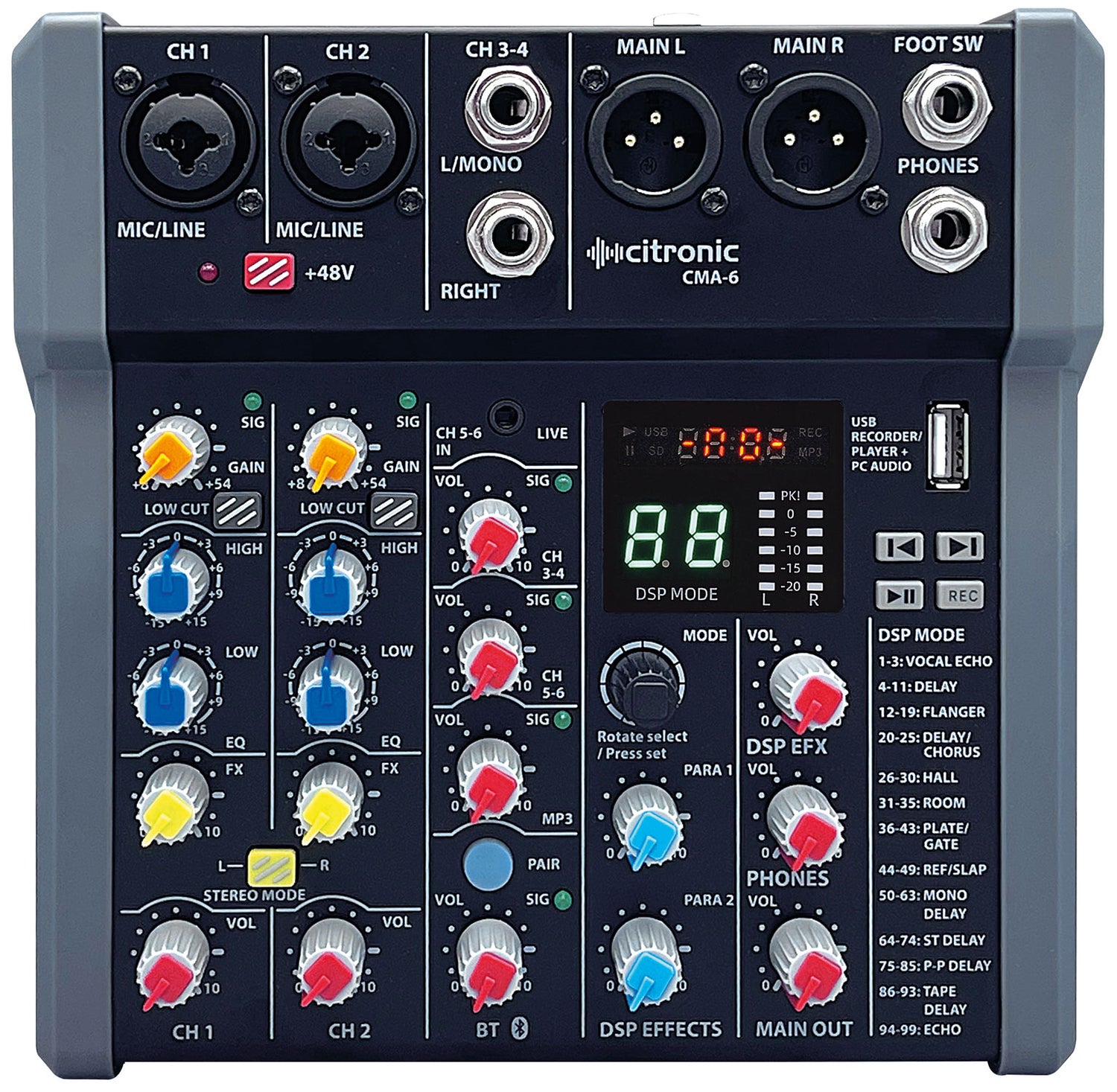

• Inputs: 2 x combo XLR/jack + stereo L+R 6.3mm + stereo 3.5mm
• Outputs: Left + Right balanced XLR, Headphones 6.3mm jack
• CMRR: >75dB (Mic 1kHz)
• Noise: EIN -122dBu (22Hz - 22kHz)
• THD + N: <0.05% @ 1kHz
• EQ: low ±15dB @ 80Hz
• EQ: high ±15dB @ 12kHz
• DSP effects: 99 program DSP (2 parameter controls)
• Dimensions: 183 x 182 x 60mm
• Weight: 0.875kg
• Input sensitivity: XLR -60 to +10dBu, TRS jack -20 to +20dBu
• Frequency response: 20Hz - 22kHz (±1dB)
• Bluetooth version: 5.1 (+BR+EDR+BLE)
• USB version: v1.1 audio (mp3/wav/ape/flac)

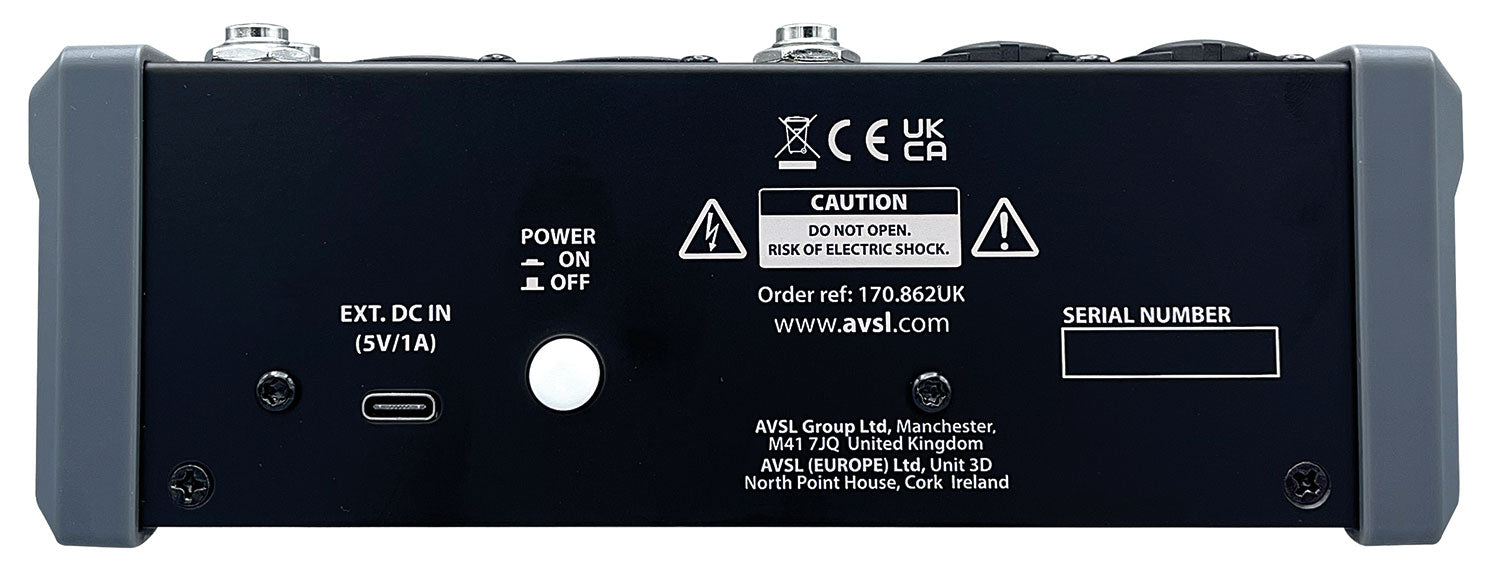

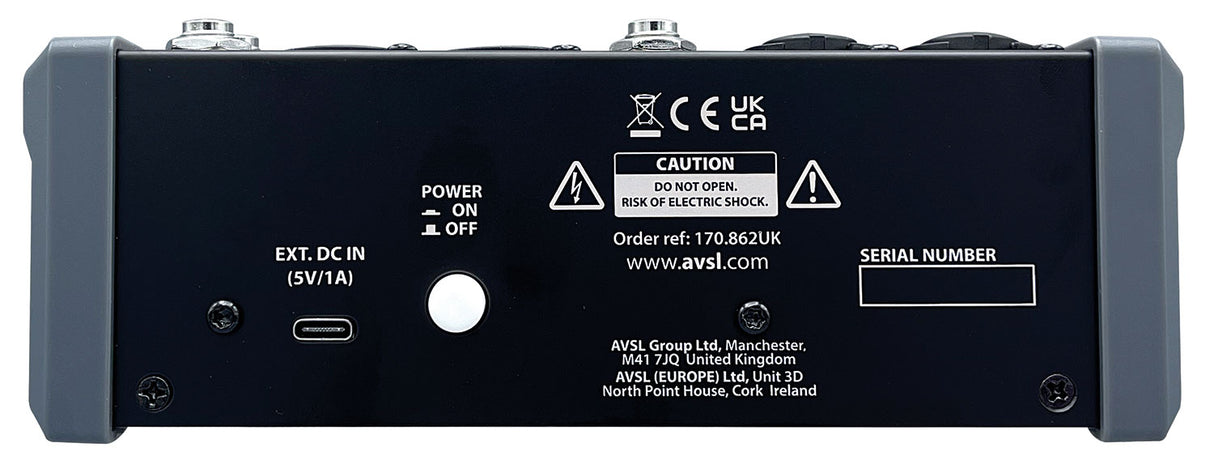

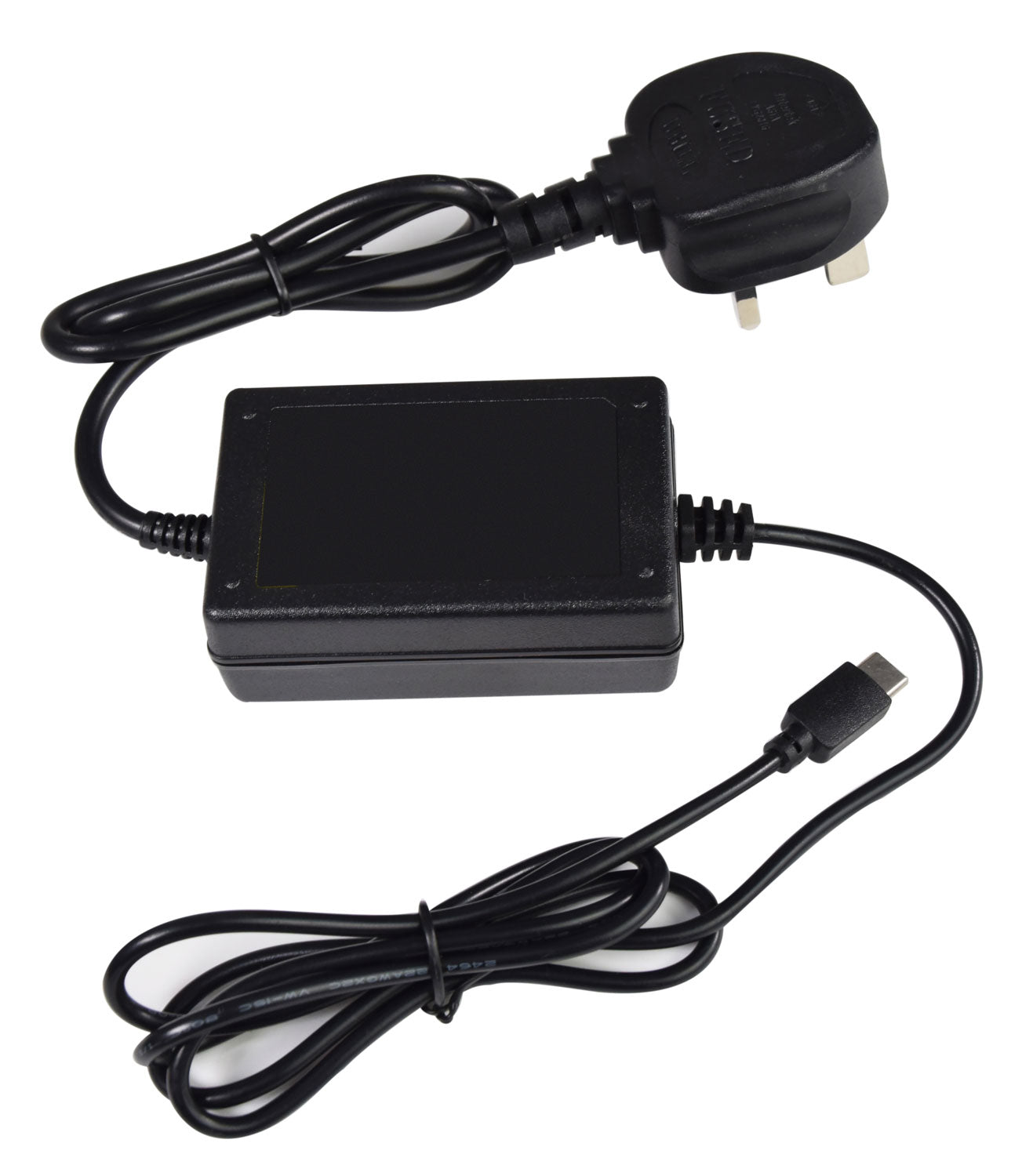

• Power supply: 5Vdc 1A min. (USB-C adaptor included)
• Phantom power: +48V switchable in pairs (XLR inputs only)
• Max. output level: XLR +22dBu, TRS +20dBu
• Crosstalk: stereo >80dB (1kHz fader shutoff)
• Power consumption max.: 5W
• USB Type-A port for playback and recording functions
• Supplied in a padded transit bag for portability

Ideal Uses & Applications

The CMA-series Compact Mixers are perfectly suited for a range of applications including:

• Live Performances:With multiple input channels and effects, they allow performers to mix live audio seamlessly.
• Home Recording:Ideal for podcasters and musicians who need high-quality sound without bulky equipment.
• Commercial Use:Perfect for hospitality settings—bars, restaurants, and event venues can use these mixers for background music and presentations.
• DJing:The ability to connect multiple audio sources makes it an excellent choice for DJs needing quick and flexible setups.
• Broadcasting:The mixer’s outputs and low noise specifications make it suitable for radio or video production.

Energy Efficiency & Cost Savings

This mixer is designed with energy efficiency in mind, consuming a maximum of just 5W of power. This not only contributes to lower energy bills but also supports eco-friendly practices within audio production environments. By using this compact mixer, users can enjoy high-quality audio performances while minimising energy consumption, which can lead to measurable savings over time.

In summary, the CMA-series Compact Mixers combine professional features with portability and user-friendly operation, making them a valuable addition for anyone in need of reliable audio mixing solutions.
