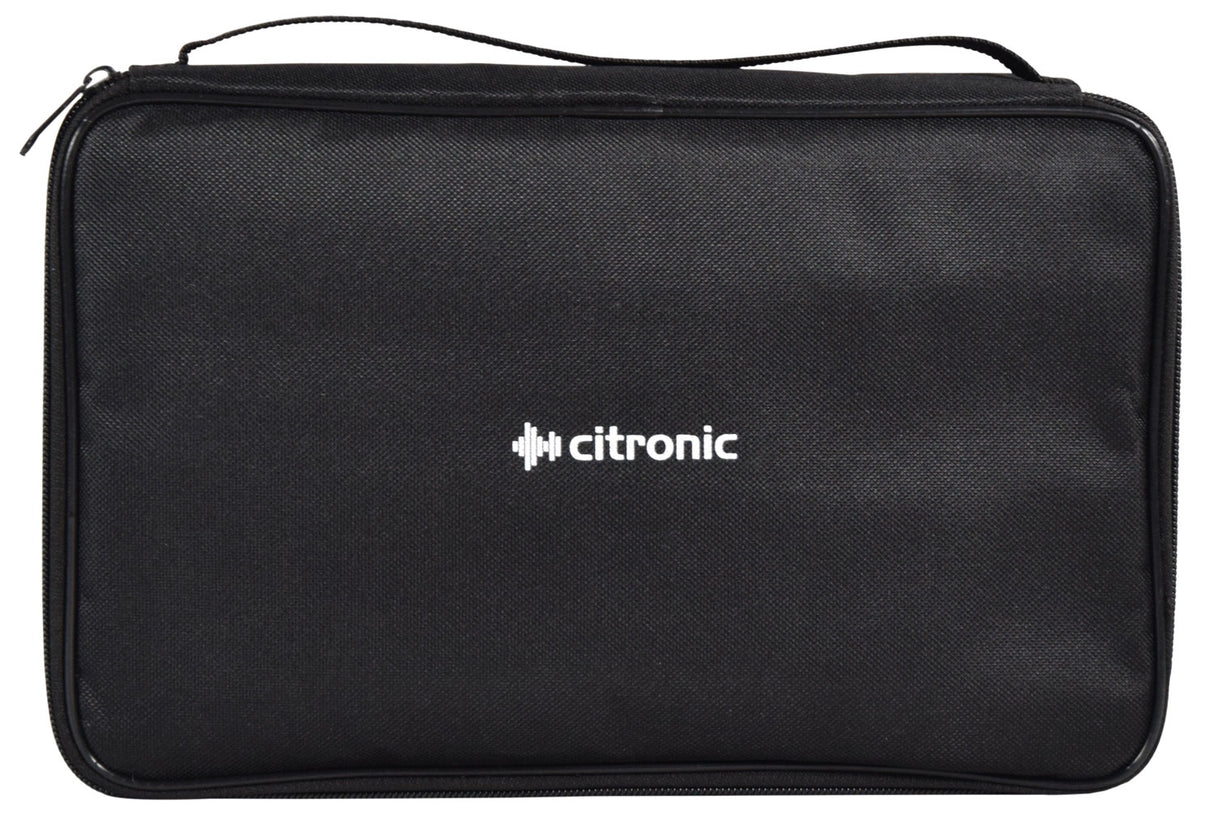

Citronic: 170.866UK, Compact Audio Mixer, 6 Mono + 2 Stereo Channels, USB & Bluetooth, 99 DSP Effects, Padded Bag

Product Overview & Key Benefits

The CMA-series Compact Mixers with DSP, USB Play/Record/PC and Bluetooth are expertly designed for those requiring high-quality audio mixing in a compact and portable format. This mixer is perfect for musicians, DJs, and audio engineers who need a reliable solution for live performances, recording, or sound design. Key benefits of this product include versatile connectivity options, high-performance DSP capabilities, and user-friendly controls that ensure optimal sound quality.

Technical Specifications & Product Details

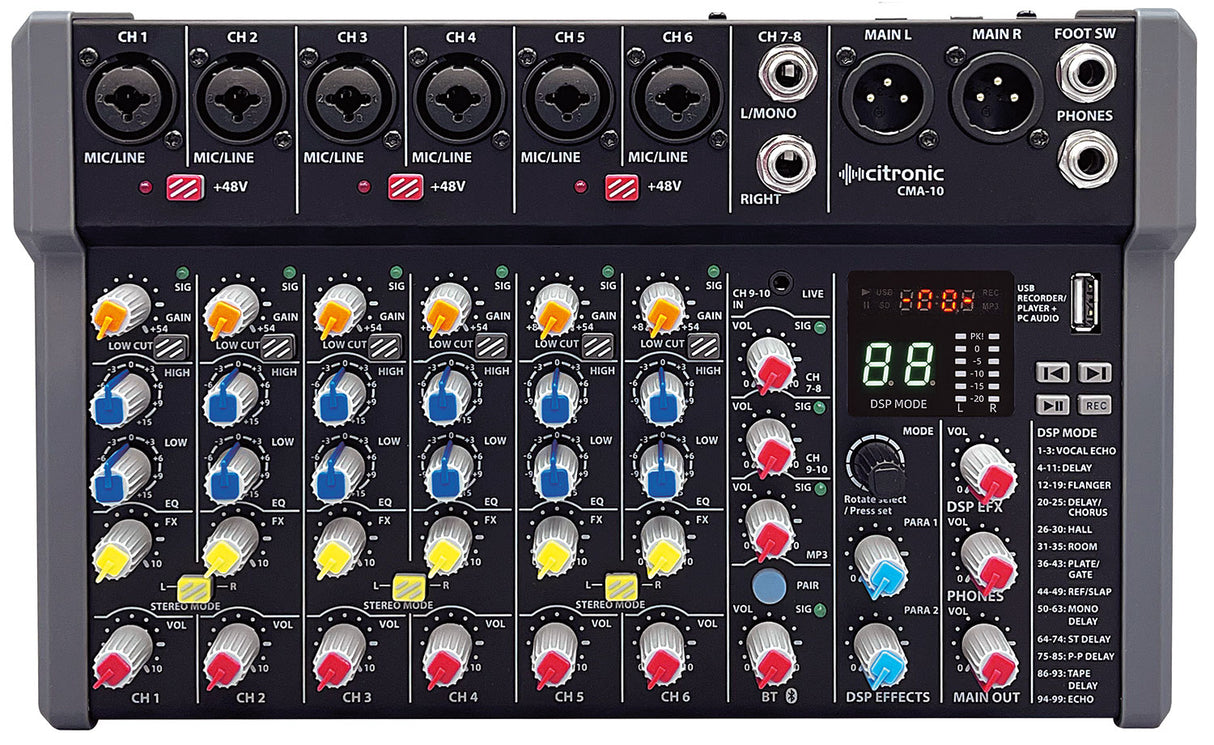

• Variant:6 mono + 2 stereo
• Inputs:6 x combo XLR/jack, stereo L+R 6.3mm, stereo 3.5mm
• Outputs:Left + Right balanced XLR, 6.3mm headphone jack
• Audio Sources:Bluetooth receiver, USB MP3 player/recorder
• DSP Effects:99 programmable presets with 2 parameter controls
• USB Version:v1.1 audio (supports mp3/wav/ape/flac formats)

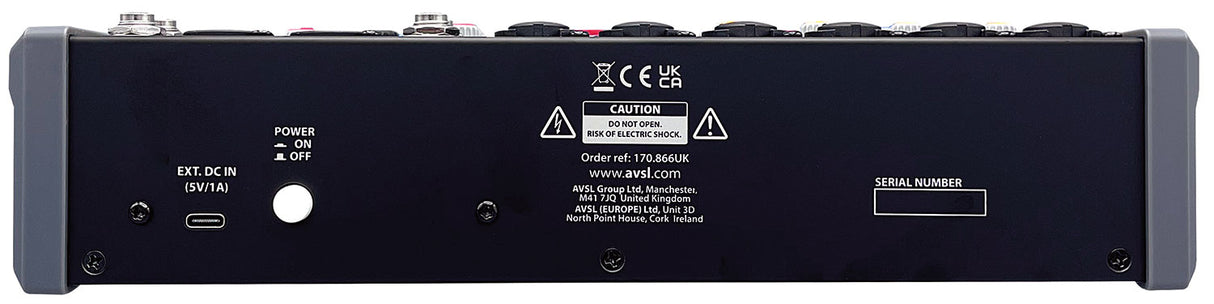

• Power Supply:5Vdc 1A minimum (USB-C adaptor included)
• Weight:1.395 kg
• Dimensions:282 x 183 x 60 mm
• Bluetooth Version:v5.1 (+BR+EDR+BLE)
• Phantom Power:Switchable +48V for XLR inputs
• Frequency Response:20Hz - 22kHz (+/- 1dB)
• Crosstalk:>80dB (1kHz fader shutoff)
• Noise (EIN):-122dBu (22Hz - 22kHz)
• THD + N:<0.05% @ 1kHz
• Max Output Level:XLR +22dBu, TRS +20dBu
• Input Level:Mic +10dBu max. / Line +22dBu max.
• Input Impedance:Balanced XLR 2k Ohm, Balanced TRS jack 10k Ohm

Ideal Uses & Applications

The CMA-series Compact Mixer is ideally suited for a range of applications. It excels in domestic DIY audio setups, making it a favourite among home studio enthusiasts. In commercial settings, this mixer is perfect for hospitality venues where quality sound is paramount, such as hotels, bars, and restaurants. Event planners, musicians, and audio professionals will find this mixer invaluable for live performances, as its lightweight and portable design allows for easy transportation.

Energy Efficiency & Cost Savings

In addition to its outstanding audio performance, the CMA-series Compact Mixers are built with energy efficiency in mind, using a maximum power consumption of just 5W. This not only reduces operational costs but also contributes to environmentally friendly practices. By using this mixer, users can expect to save on energy bills while benefitting from enhanced audio quality, whether in live settings or studio recordings.
