Codelocks 4000 BS GD electronic lock
About this product
Please note: this is a non-returnable item (excluding faulty goods)

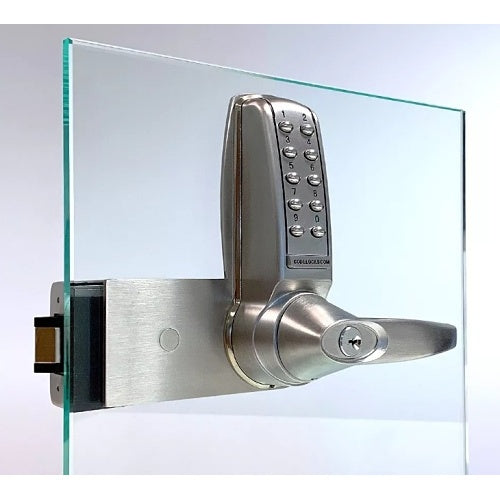

Codelocks 4000 BS GD is an electronic lock.
The CL4000 Glass Door Lock is a medium duty electronic patch door lock offering all the functions of the CL4000. Suitable for inswing doors the lock fits existing Rondo type glass door preparations. As standard the CL4000GD is supplied with a flat strike plate for fitting to solid door frames.
When fitting to a glass door with a Rondo prep glass side panel you will need to buy the Glass Door Strike Box. Medium duty brushed steel latchbolt head with 8mm (5⁄16") follower. Supplied with a flat strike plate for fitting to a solid door frame.
Outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights up the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the door.
The key will open the door for management functions. The key may be used to set the lock into Code Free option so that anyone can open the door without using a code (classroom function tailpiece required). Code Free option can also be programmed via the keypad.
Key features
- Key override as standard
- Up to 100,000 operations (2 x AAA supplied)
- User Codes 4, 5 or 6 digits long
- Stores up to 80 User Codes
- Red LED will flash to indicate low battery
- Allows up to 10 one time User Codes
- Tamper time out and low battery warning
- Locked and unlocked LED indicator option
- Locks will fit doors hung on the left or right
- Suitable for inswing doors only
If you are matching this to an existing installation, work from the 4000 BS GD part number rather than the description.
Specifications
Certifications
Specifications
| Brand Name | Codelocks |
|---|---|
| Manufacturer Part Number | 4000 BS GD |
| Product Type | Electronic Lock |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Out of Scope |
