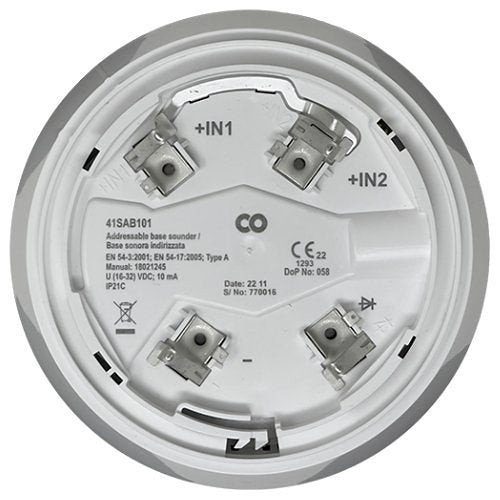

Comelit PAC 41SAB101 addressed sounder base, White
About this product
Comelit PAC 41SAB101 is an addressed sounder base from the Logifire range.
The 41SAB101 LOGIFIRE series addressed sounder base is a base with built-in sounder. A detector can be mounted on it, minimising the space required for installation. It is powered directly from the control panel and is controlled via communication protocol, features 32 different tones and 2 sound levels which can be programmed from the control panel.
Sounder base with a revised design suitable for any type of installation, even the most aesthetically demanding cases. Family feeling with all the sensors in the new Comelit LOGIFIRE series. Mounting on 41RBX020 base or on base with flash EN54-23 41VAD100.
Built-in isolator. Certification according to EN54-3 and EN54-17.
Key features
- IP Protection rating IP21C
- Type of finishing materials ABS
- Installation ceiling mount
- Diameter 121mm
- Supply voltage 16 to 32VCC
- Backwards compatible with ATENA series control panels
If you are matching this to an existing installation, work from the 41SAB101 part number rather than the description.
Specifications
Certifications
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Comelit PAC |
|---|---|
| Manufacturer Part Number | 41SAB101 |
| Product Series | Logifire |
| Product Type | Alarm and Siren |
Certifications
| CE marking | Yes |
|---|---|
| RoHS compliance | Compliant |
| WEEE compliance | Compliant |
Physical characteristics
| Colour | White |
|---|---|
| Height | 38.00mm |
| Material | ABS |
| Weight | 125.00g |
Product information
| Diameter | 121.00mm |
|---|---|
| Mount Type | Ceiling Mount |
Miscellaneous
| Compatibility | 41RBX020, 41VAD100 |
|---|
Attributes
| Compatibility | 41RBX020, 41VAD100 |
|---|---|
| Weight | 125.00g |
