Comelit PAC 41CPE212 fire alarm control panel
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comelit PAC 41CPE212 is a fire alarm control panel.
LOGIFIRE EASY addressable fire panel is supplied as standard with 1 Loop, which can be expanded to 2 using board 41ECL022. Up to 250 addressed devices (detectors, buttons, I / O modules, sirens etc.), divided into a maximum of 48-zones in total, can be connected to each loop. The control panel has a 5A power supply unit with 12V output for battery.
It has a strong metal container (430 x 330 x 150mm) with the same dimensions as all the new Comelit LOGIFIRE series control panels, so as to guarantee optimum modularity and side-by-side pairing of the boxes during installation. All indications and commands are displayed on the front in compliance with the requirements set out by standard EN54-2, by means of LED indications and the alphanumeric LCD display with 4-rows of 40-characters. Fire alarm, Fault, CPU Fault, Delayed Alarm, Exclusions, Test, Faulty / Excluded Siren, Confirm Fire Alarm, Faulty / Excluded Alarm Output, Extinguishing Started, Extinction Fault, Network Present, Alarm Silenced general indications.
Direct commands for Silence buzzer, Silence siren, Reset, Evacuation, Signalling test. 4-Menu navigation keys. Approved to EN 54-2 and EN 54-4, conforms to EN54-13.
Key features
- Expandable to 2-loops using board 41ECL022
- Up to 250-addressed devices per loop
- Maximum of 48-zone
- 5A power supply unit
- 12V output for battery
- Strong metal container
- Alphanumeric LCD display with 4-rows of 40-characters
- Direct commands for Silence buzzer, Silence siren, Reset, Evacuation, Signalling test
- 4-Menu navigation keys
- Approved to EN 54-2 and EN 54-4
If you are matching this to an existing installation, work from the 41CPE212 part number rather than the description.
Specifications
Specifications
| Brand Name | Comelit PAC |
|---|---|
| Manufacturer Part Number | 41CPE212 |

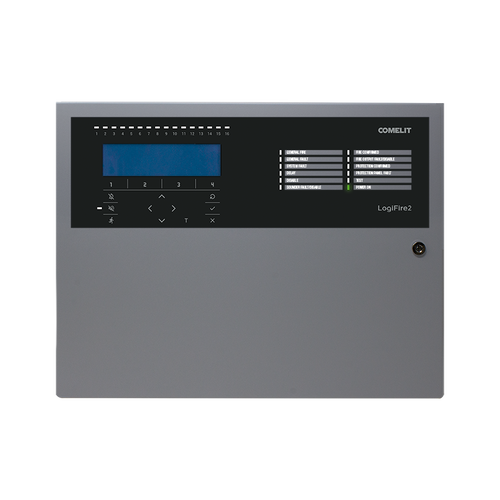

Comelit PAC 41CPE212 fire alarm control panel
