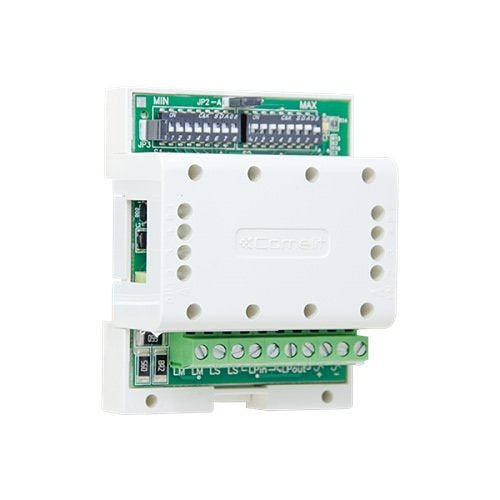

Comelit PAC 1424 intercom system switching device, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comelit PAC 1424 is an intercom system switching device from the Simplebus2 range.
Switching device 1424 can be used to create Simplebus systems of up to 120,000 users.
Key features
- It can also be used to create multi-kit systems up to 500 Comelit Simplebus KITS that can be integrated into a Simplebus system.
- The device also makes it possible to include main and secondary switchboards within a system (which can be called independently) and offers alarm signals to those particular switchboards.
- It offers options to cascade the bus line distribution as an alternative to star distribution, optimising the cabling for the part of the system before the mixers 4888 and 4888C.
- It also has a self-powering function for the LS|LS input, which allows riser management without requiring a dedicated secondary external unit.
- Power supply 12Vac (Art. 1200 may be used) -20Vdc.
- 4 DIN modules.
- Dimensions 60x85x35mm.
If you are matching this to an existing installation, work from the 1424 part number rather than the description.
-
Download
- 1424 — Product Manual
Specifications
Technical information
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Comelit PAC |
|---|---|
| Manufacturer Part Number | 1424 |
| Product Series | Simplebus2 |
| Product Type | Intercom System Switching Device |
Technical information
| Device Supported | Intercom System, Switchboard |
|---|
Certifications
| Certifications & Standards | EMC 2014/30/UE (EN 61000-6-1 - 2007, EN 61000-6-3 - 2007+A1 - 2011) |
|---|---|
| RoHS compliance | Compliant |
| WEEE compliance | Compliant |
Physical characteristics
| Colour | White |
|---|---|
| Depth | 35.00mm |
| Height | 85.00mm |
| Material | Plastic |
| Width | 60.00mm |
Power description
| Input Voltage | 12V AC, 20V DC |
|---|---|
| Power Source | DC Power |
Miscellaneous
| Additional Information | Digital switching device. Simplebus 1 |
|---|
Attributes
| Compatibility | Comelit Simplebus Systems |
|---|---|
| Device Supported | Intercom System, Switchboard |
| Input Voltage | 12V AC, 20V DC |
| Power Source | DC Power |
