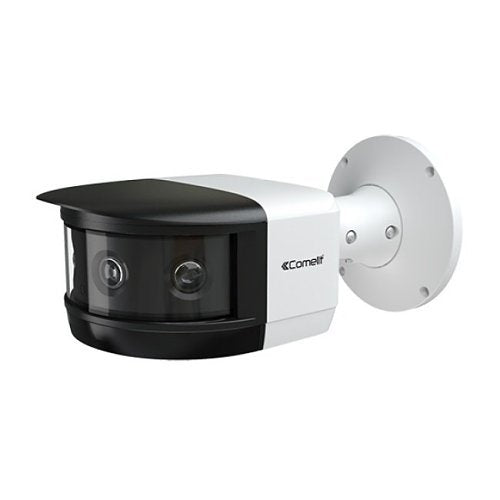

Comelit PAC IPSCAMA08F04A network camera, 8MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comelit PAC IPSCAMA08F04A is a network camera.
Advance series IP bullet panoramic camera. Video analysis functions: Scene change detection, Face detection, Video tampering detection, Line crossing detection (distinction between humans / vehicles), Detection of Entry into / Exit from / Intrusion into an area (distinction between humans / vehicles), On-line human being / vehicle counting. Die-cast aluminium IP67 waterproof enclosure, power supply 12 VDC/PoE.
Key features
- Resolution 8MP at 30fps
- Fixed lenses of 4 x 3.3mm
- Horizontal viewing angle 180°
- IR LEDs with range of 30m
- ONVIF compatible (Profile S and Profile G)
- Compression H.265 / H.264 / MJPEG
- SD slot (max. 128GB)
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Comelit PAC |
|---|---|
| Manufacturer Part Number | IPSCAMA08F04A |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Field of View | Horizontal |
| Lens Type | Fixed |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.30mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Number of IR LEDs | 8 |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|---|
| Number of Sensors | 4 |
Environmental conditions
| Maximum Operating Temperature | 50°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/25 Second |
|---|---|
| Shortest Shutter Speed | 1/100000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.3mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 3.30mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 288.40mm |
| Durability | Vandal Resistant, Waterproof |
| Form Factor | Bullet |
| Height | 96.00mm |
| Weight | 2.10kg |
| Width | 159.70mm |
Power description
| Input Voltage | 12V DC |
|---|
Storage
| Recording Formats | H.264, H.265 (HEVC) |
|---|---|
| Storage Type | SD Card |
Miscellaneous
| Features | 3D Digital Noise Reduction, Back Light Compensation (BLC), Day/Night, Defog, Gain Control, Highlight Compensation (HLC), Noise Detection, Noise Reduction, Privacy Masking, White Balance, Wide Dynamic Range |
|---|
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 2.10kg |
| Impact protection | IK10 |
