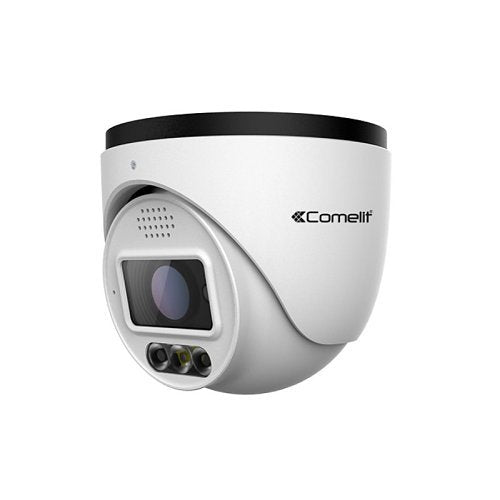

Comelit PAC IPTCAMA05Z02A network camera, 5MP

Free Delivery
£ 330 40
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Comelit PAC IPTCAMA05Z02A is a network camera.

Advance series IP turret camera for perimeter protection. The high frame function (60fps) is only supported by 32/64/128 ch Advance series NVRs. Video analysis functions: Scene change detection, Video tampering detection, Line crossing detection (distinction between humans / vehicles), Detection of Entry into / Exit from / Intrusion into an area (distinction between humans / vehicles).

Audio: built-in microphone and speaker, 1 audio in / 1out. Light and sound alarm (speaker and LED flash for deterrent usage). Alarms: 1in/1out.

Die-cast aluminium IP67 waterproof enclosure, power supply 12 VDC/PoE.

Key features

  • WDR 120dB
  • Resolution 5MP at 20fps
  • IR LEDs with a range of 50m
  • ONVIF compatible (Profile S and Profile G)
  • Motorised lens with autofocus function 2.8-12mm
  • High frame rate function supported (2MP at 60fps)
  • Smart compression H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG

If you are matching this to an existing installation, work from the IPTCAMA05Z02A part number rather than the description.

£ 330 40
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£330.40 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Comelit PAC
Manufacturer Part Number
IPTCAMA05Z02A
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
5MP
Field of View
Horizontal, Vertical
Lens Type
Varifocal
Maximum Frame Rate
30fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Number of IR LEDs
3
Optical Zoom
4.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
50.00m
Certifications
Ingress protection
IP67
Display & graphics
Maximum video resolution
2592 x 1944
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/25 Second
Shortest Shutter Speed
1/100000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8-12mm
Lens Included
Yes
Maximum Focal Length
12.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Vandal Resistant, Waterproof
Form Factor
Turret
Height
100.00mm
Weight
640.00g
Power description
Input Voltage
12V DC
Product information
Diameter
111.50mm
Storage
Storage Type
SD Card
Miscellaneous
Features
Auto Gain Control, Back Light Compensation (BLC), Built-in Microphone, Cross Line Detection, Digital Noise Reduction, Human Detection, Motion Detection, Privacy Masking, Vehicle Detection, White Balance, Wide Dynamic Range
Attributes
Input Voltage
12V DC
Weight
640.00g
Impact protection
IK10

Specifications

Brand Name Comelit PAC
Manufacturer Part Number IPTCAMA05Z02A
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 5MP
Field of View Horizontal, Vertical
Lens Type Varifocal
Maximum Frame Rate 30fps
Minimum Focal Length 2.80mm
Night Vision Yes
Night Vision Type Active Illumination, Near-Infrared (NIR)
Number of IR LEDs 3
Optical Zoom 4.0x
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 50.00m

Certifications

Ingress protection IP67

Display & graphics

Maximum video resolution 2592 x 1944

Environmental conditions

Maximum Operating Temperature 60°C
Minimum Operating Temperature -30°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 1/25 Second
Shortest Shutter Speed 1/100000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 2.8-12mm
Lens Included Yes
Maximum Focal Length 12.00mm

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Durability Vandal Resistant, Waterproof
Form Factor Turret
Height 100.00mm
Weight 640.00g

Power description

Input Voltage 12V DC

Product information

Diameter 111.50mm

Storage

Storage Type SD Card

Miscellaneous

Features Auto Gain Control, Back Light Compensation (BLC), Built-in Microphone, Cross Line Detection, Digital Noise Reduction, Human Detection, Motion Detection, Privacy Masking, Vehicle Detection, White Balance, Wide Dynamic Range

Attributes

Input Voltage 12V DC
Weight 640.00g
Impact protection IK10

Comelit PAC IPTCAMA05Z02A network camera

Comelit PAC IPTCAMA05Z02A network camera, 5MP

Who this is for

For the installer — this is the network camera supplied under Comelit PAC part number IPTCAMA05Z02A. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a network camera made by Comelit PAC. The part number IPTCAMA05Z02A is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this network camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact network camera I have been quoted? Check the manufacturer part number IPTCAMA05Z02A against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against IPTCAMA05Z02A answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
