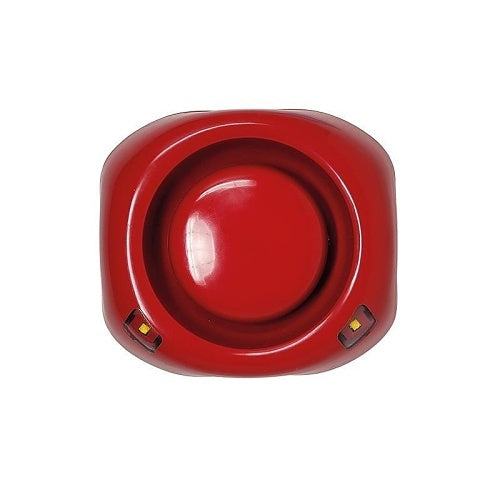

Comelit PAC WCW99 wall-mounted sounder beacon, Red
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comelit PAC WCW99 is a wall-mounted sounder beacon.
High-efficiency audio-visual signaller with low consumption, designed for fire alarm and surface-mounted systems. Has 32 main tones and 32 alternative tones, option of 2 different volume levels and 2 levels of optical coverage. Sound power at high volume 100 dB (A) at 1m.
Absorption 14.5 mA (high volume and coverage), 12.5 mA (low volume and coverage). Optical coverage (W) 4m x 9m with low-consumption white flashing LED. Synchronized flashing lights for connection with several devices.
Power supply 9-60V DC. IP21 Protection rating. Dimensions (H x W x L) 45x109x120mm.
Approved EN 54-3 and EN 54-23.
Key features
- High-efficiency audiovisual signaller with low consumption
- 32 main tones and 32 alternative tones
- Sound power at high volume: 100 dB (A) at 1m
- Low-consumption white flashing LED with 4m x 9m coverage
- Synchronized flashing lights for multiple device connections
- Power supply: 9-60V DC
- IP21 Protection rating
- Dimensions: 45x109x120mm
If you are matching this to an existing installation, work from the WCW99 part number rather than the description.
-
Download
- WCW99 — User Manual
Specifications
Technical information
Environmental conditions
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Comelit PAC |
|---|---|
| Manufacturer Part Number | WCW99 |
| Product Type | Sounder |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Light Colour | White |
Environmental conditions
| Sound Emission | 100dB |
|---|
Physical characteristics
| Colour | Red |
|---|---|
| Depth | 45.00mm |
| Height | 109.00mm |
| Weight | 232.00g |
| Width | 120.00mm |
Power description
| Input Voltage | 9-60V DC |
|---|---|
| Power Source | DC Power |
Product information
| Bulb/Tube Type | LED Bulb |
|---|---|
| Mount Type | Wall Mount |
Miscellaneous
| Indoor or outdoor use | Indoor |
|---|
Attributes
| Input Voltage | 9-60V DC |
|---|---|
| Power Source | DC Power |
| Weight | 232.00g |
Comelit PAC WCW99 wall-mounted sounder beacon, Red
