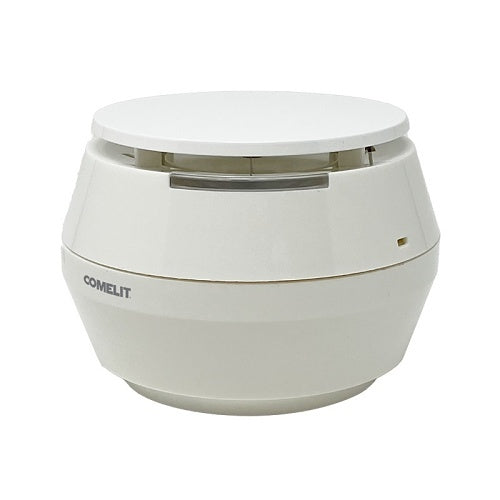

Comelit PAC 45RCS100 wireless heat detector, White
About this product
Comelit PAC 45RCS100 is a wireless heat detector.
Wireless addressable heat detector designed for operation with Comelit wireless expansion modules. The detector has 360° visibility LED indication and a built-in buzzer for additional signalling in the event of a fire alarm (can be excluded) and for searching within the system. To prevent unauthorised disassembly or removal, the detector can be locked on at the base.
Equipped with an anti-tamper feature to indicate opening. 45RCS100 is able to detect the fixed threshold of 58°C in addition to rapid changes in temperature (rate of rise) as set out by standard EN 54-5 for class A1R. Device enrolling is easy and instant.
Communication distance between detector and expander (in open space) over 1000 m. Two-way radio communication with proprietary communication protocol. Batteries (2 x CR123A) with maximum life up to 10 years (depending on usage and settings).
Operating temperature -10°C / +55°C. Dimensions (including base) Ø108x76 mm. Material: ABS.
IP30 protection rating. Available temperature classes A1/R and A2/S. Approved to EN 54-5 and EN 54-25.
Key features
- Built-in buzzer for additional signalling
- Anti-tamper feature for security
- Easy and instant device enrolment
- Communication distance over 1000 m in open space
- Two-way radio communication with proprietary protocol
If you are matching this to an existing installation, work from the 45RCS100 part number rather than the description.
Specifications
Technical information
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Comelit PAC |
|---|---|
| Manufacturer Part Number | 45RCS100 |
| Product Type | Heat Detector |
Technical information
| Connectivity Technology | Wireless |
|---|---|
| Maximum Operating Distance | 1km |
| Wireless Technology | RF |
Physical characteristics
| Colour | White |
|---|---|
| Height | 76.00mm |
| Material | ABS |
| Weight | 210.00g |
| Width | 108.00mm |
Miscellaneous
| Compatibility | Comelit wireless expansion modules |
|---|
Attributes
| Compatibility | Comelit wireless expansion modules |
|---|---|
| Weight | 210.00g |
