Comnet FDC10M1B contact closure transceiver, Surface Mount

Visit Data & Networking
Free Delivery
£ 439 46
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Comnet FDC10M1B is a contact closure transceiver from the FDC10 range.

The Comnet FDC10 Series bi-directional contact closure transceiver provides bi-directional transmission of contact closure over one multimode or single mode optical fiber. The transceiver has a contact input and a 0.5 amp contact output. The bi-directional contact closure module has two relay outputs and one relay input.

One relay output follows the "relay input" at the remote end. When the remote "relay input" is shorted, the local relay output is closed and vice-versa. The second relay output is closed when “carrier” is detected from the remote end, this indicates that the optical fiber is connected and that the remote end has power and is operating.

Key features

  • Designed to meet full compliance with the environmental requirements of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
  • Automatic Electronic Current Limiting
  • 30V DC 0.5 amp relay output, normally open
  • Relay contact for Carrier Detect (normally closed with carrier present)
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events

If you are matching this to an existing installation, work from the FDC10M1B part number rather than the description.

£ 439 46
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£439.46 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Comnet
Manufacturer Part Number
FDC10M1B
Product Series
FDC10
Product Type
Transceiver/Media Converter
Technical information
Media Type Supported
Optical Fiber
Power Consumption
2.0000W
Interfaces/ports
Network (RJ-45)
No
Number of Ports
1
Number of ST Ports
1
Media & performance
Fibre Optic Wavelength
1310nm
Physical characteristics
Depth
25.40mm
Height
94.00mm
Width
101.60mm
Power description
Plug/Connector Type
Terminal Block
Power Source
AC Power
Product information
Mount Type
Surface Mount
Attributes
Environmental status
Yes
Power Source
AC Power
Specifications
Technical information
Interfaces/ports
Media & performance
Physical characteristics
Power description
Product information
Attributes

Specifications

Brand Name Comnet
Manufacturer Part Number FDC10M1B
Product Series FDC10
Product Type Transceiver/Media Converter

Technical information

Media Type Supported Optical Fiber
Power Consumption 2.0000W

Interfaces/ports

Network (RJ-45) No
Number of Ports 1
Number of ST Ports 1

Media & performance

Fibre Optic Wavelength 1310nm

Physical characteristics

Depth 25.40mm
Height 94.00mm
Width 101.60mm

Power description

Plug/Connector Type Terminal Block
Power Source AC Power

Product information

Mount Type Surface Mount

Attributes

Environmental status Yes
Power Source AC Power

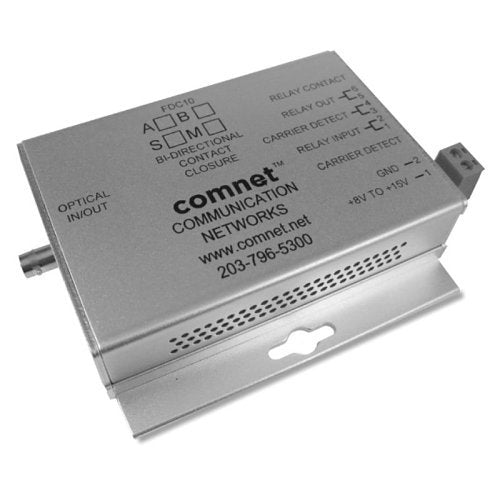

Comnet FDC10M1B contact closure transceiver

Comnet FDC10M1B contact closure transceiver, Surface Mount

Who this is for

For the installer — this is the contact closure transceiver supplied under Comnet part number FDC10M1B. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a contact closure transceiver made by Comnet. The part number FDC10M1B is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this contact closure transceiver is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact contact closure transceiver I have been quoted? Check the manufacturer part number FDC10M1B against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against FDC10M1B answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
