Comnet FDC80TM1 contact closure transmitter, Rack Mount

Visit Data & Networking
Free Delivery
£ 623 82
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

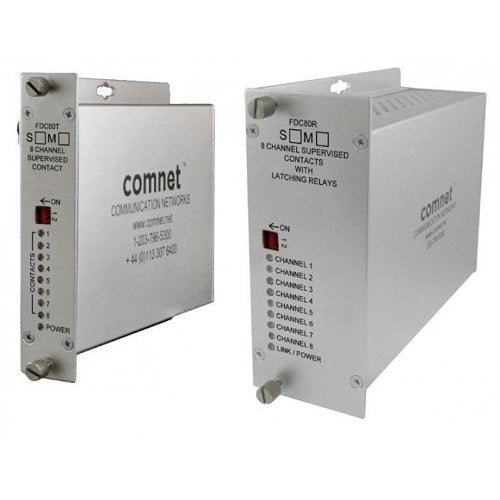

Comnet FDC80TM1 is a contact closure transmitter from the FDC80 range.

The Comnet FDC80 Series contact closure transmitter and receiver units provide transmission of up to eight independent supervised or unsupervised dry switch or relay contact closures over a single optical fiber, or any two-wire RS-485 copper circuit. Microprocessor-based logic transmits the contact closure information in packets that are ordered and encoded, ensuring extremely robust and reliable transmission. Packets that are garbled, or packets out of sequence with transmission bit errors will not cause random changes of state in the FDC80R receiver unit relays.

The supervising function in the FDC80T transmitter allows for the detection of short and open circuit conditions, and normally open or normally closed contact inputs are supported. System faults are displayed via LED status indicators, and user-programmable summary fault alarm contacts are triggered in the FDC80R receiver unit. The FDC80R receiver is offered in both latching and non-latching relay configurations.

External series and shunt resistors are included for each of the 8 contact input channels, for contact supervision.

Key features

  • Microprocessor-based logic and latching relays in receiver unit eliminate random contact closure status in the event of loss of link or loss of prime operating power.
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use.
  • Standard ComFit models are hot-swappable.
  • Interchangeable between stand-alone or rack mount use – ComFit
  • Hot-swappable rack modules
  • Automatic resettable solid-state current limiters
  • Transmits up to eight independent supervised or unsupervised dry switch or relay contacts over one optical fiber, or via a 2-wire RS-485 point-to-point copper circuit

If you are matching this to an existing installation, work from the FDC80TM1 part number rather than the description.

£ 623 82
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£623.82 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Comnet
Manufacturer Part Number
FDC80TM1
Product Series
FDC80
Product Type
Video Extender Transmitter
Technical information
Connectivity Technology
Wired
Maximum Operating Distance
16km
Media Type Supported
Optical Fiber
Power Consumption
3.0000W
Interfaces/ports
Network (RJ-45)
Yes
Physical characteristics
Depth
154.94mm
Height
28.00mm
Width
135.00mm
Power description
Input Voltage
8-15V DC
Product information
Mount Type
Rack Mount
Miscellaneous
Package Contents
50/60 Hz 9 Volt DC Plug-in Power Supply 90-264 VAC
Attributes
Input Voltage
8-15V DC
Package Contents
50/60 Hz 9 Volt DC Plug-in Power Supply 90-264 VAC
Specifications
Technical information
Interfaces/ports
Physical characteristics
Power description
Product information
Miscellaneous
Attributes

Specifications

Brand Name Comnet
Manufacturer Part Number FDC80TM1
Product Series FDC80
Product Type Video Extender Transmitter

Technical information

Connectivity Technology Wired
Maximum Operating Distance 16km
Media Type Supported Optical Fiber
Power Consumption 3.0000W

Interfaces/ports

Network (RJ-45) Yes

Physical characteristics

Depth 154.94mm
Height 28.00mm
Width 135.00mm

Power description

Input Voltage 8-15V DC

Product information

Mount Type Rack Mount

Miscellaneous

Package Contents 50/60 Hz 9 Volt DC Plug-in Power Supply 90-264 VAC

Attributes

Input Voltage 8-15V DC
Package Contents 50/60 Hz 9 Volt DC Plug-in Power Supply 90-264 VAC

Comnet FDC80TM1 contact closure transmitter

Comnet FDC80TM1 contact closure transmitter, Rack Mount

Who this is for

For the installer — this is the contact closure transmitter supplied under Comnet part number FDC80TM1. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a contact closure transmitter made by Comnet. The part number FDC80TM1 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this contact closure transmitter is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact contact closure transmitter I have been quoted? Check the manufacturer part number FDC80TM1 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against FDC80TM1 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
