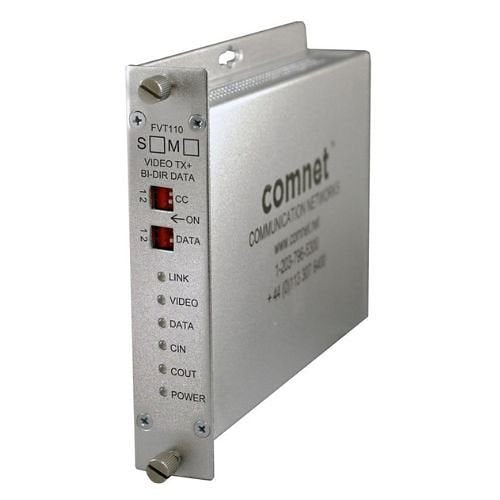

Comnet FVT110S1 data transceiver, Rail Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet FVT110S1 is a data transceiver from the FVT110(M,S)1/BO range.
The Comnet FVT/FVR110 series is a video transmitter / receiver and data transceiver that supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single mode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. It also supports "up-the-coax" data transmission from all major manufacturers, utilizing time-base correction these units can achieve distances of 48km.
The FVT/FVR110 supports Panasonic Proteus, Pelco Coaxitron and Bosch Bilinx Up-the-Coax systems. The FVT110 also transmits a single bi-directional contact closure signal. Packaged in the exclusive Comnet ComFit housing, the full-size units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of Comnet model DINBKT1 adaptor plate.
Key features
- Distances up to 48km
- Automatic resettable fuses on all power lines
- Status indicating LEDs provide rapid indication of critical operating parameters
- 1 Full Duplex Data channel
- 1 Full Duplex Contact Closure
- Time-Based Corrected Up-the-Coax Data
- ComFit standard form factor is interchangeable between stand-alone or rack mount use
- Compatible with NTSC, PAL, or SECAM Video Standards
- 10-Bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard
- Standard ComFit models are hot-swappable
If you are matching this to an existing installation, work from the FVT110S1 part number rather than the description.
-
Download
- FVT110S1 — Product Manual
Specifications
Technical information
Interfaces/ports
Media & performance
Physical characteristics
Product information
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | FVT110S1 |
| Product Series | FVT110(M,S)1/BO |
| Product Type | Transceiver/Media Converter |
Technical information
| Fibre Optic Cable Standard | 9/125 μm |
|---|---|
| Fibre Optic Mode | Single-mode |
| Media Type Supported | Fiber Optic |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of ST Ports | 1 |
Media & performance
| Fibre Optic Wavelength | 1310nm |
|---|
Physical characteristics
| Colour | Green |
|---|---|
| Form Factor | Rail Mount |
Product information
| Mount Type | DIN Rail Mount |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Fibre Optic Cable Standard | 9/125 μm |
