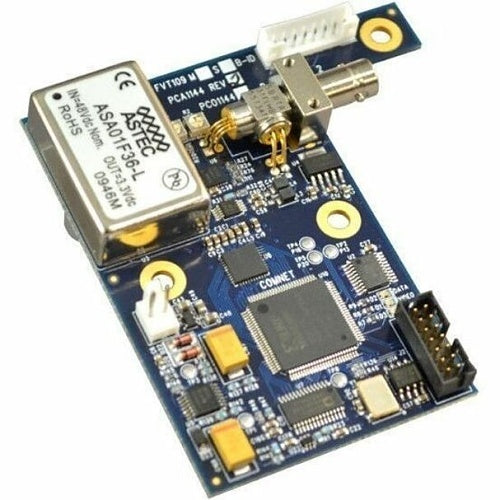

Comnet FVT110S1/BO data transceiver
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet FVT110S1/BO is a data transceiver.
The Comnet FVT110(M,S)1/BO is a video transmitter and data transceiver that, when paired with the FVR110(M,S)1, supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single mode optical fiber. The module supports RS-422 data interfaces and most data protocols. It is for use in Bosch Bilinx dome cameras and supports "up-the-coax" data transmission, utilizing time-based correction these units can achieve distances of 48km.
The FVT110(M,S)1/BO is designed to plug directly into the Bosch dome, and connects with power, video input, and two way data via the Bosch electrical connector.
Key features
- Distances up to 48 km
- Automatic resettable fuses on all power lines
- Status indicating LEDs provide rapid indication of critical operating parameters
- Supports Bosch Bilinx and Bosch Bi-phase telemetry systems
- One Data channel
- Time-Base Corrected Up-the-Coax Data
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- Compatible with NTSC and PAL Video Standards
- 10-Bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard
- Designed to meet full compliance with the environmental requirements of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
If you are matching this to an existing installation, work from the FVT110S1/BO part number rather than the description.
Specifications
General information
Technical information
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | FVT110S1/BO |
| Product Type | Video Extender Transmitter |
General information
| Application/Usage | IP Camera |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Maximum Operating Distance | 48km |
| Media Type Supported | Optical Fiber |
| Number of Input Devices Supported | 1 |
Attributes
| Environmental status | Yes |
|---|
