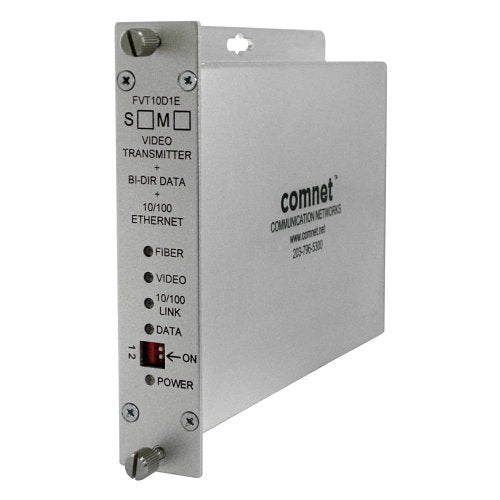

Comnet FVT10D1EM digitally-encoded video transmitter, Rack, Rail Mount

Free Delivery
£ 940 57
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Comnet FVT10D1EM is a digitally-encoded video transmitter from the FVT/FVR10D1E(M,S) range.

The Comnet FVT/FVR10D1E series video transmitter/receiver and data transceiver supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digital video with one bi-directional data channel plus one 10/100 Mbps fast Ethernet port. The modules are universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. It also supports "up-the-coax" data transmission from most major manufacturers.

Packaged in the exclusive Comnet ComFit housing, the FVT/ FVR10D1E units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of Comnet model DINBKT1 adaptor plate.

Key features

  • IEEE 802.3 Compliant
  • Automatic resettable fuses on all power lines
  • Status indicating LEDs provide rapid indication of critical operating parameters
  • One bi-directional data channel
  • One 10/100 BASE-T/TX fast Ethernet port
  • Circuit boards are conformally coated to extend humidity tolerance to condensation conditions
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use
  • Compatible with NTSC, PAL, or SECAM Video Standards
  • Standard ComFit models are hot-swappable
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

If you are matching this to an existing installation, work from the FVT10D1EM part number rather than the description.

£ 940 57
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£940.57 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Comnet
Manufacturer Part Number
FVT10D1EM
Product Series
FVT/FVR10D1E(M,S)
Product Type
Transceiver/Media Converter
General information
Packaged Quantity
1
Technical information
Fibre Optic Mode
Multimode
Media Type Supported
Fiber Optic
Interfaces/ports
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Number of ST Ports
1
Media & performance
Network Technology
100Base-TX, 10Base-T
Network & communication
Ethernet Technology
100 Mbps (Fast Ethernet)
Physical characteristics
Depth
154.90mm
Form Factor
Rack Mount, Rail Mount
Height
27.90mm
Width
134.60mm
Power description
Power Source
DC Power
Product information
Mount Type
DIN Rail Mount, Rack Mount
Miscellaneous
Environmental status
Yes
Package Contents
Video Transmitter/Data Transceiver DC Plug-in Power Supply
Attributes
Package Contents
Video Transmitter/Data Transceiver DC Plug-in Power Supply
Power Source
DC Power

Specifications

Brand Name Comnet
Manufacturer Part Number FVT10D1EM
Product Series FVT/FVR10D1E(M,S)
Product Type Transceiver/Media Converter

General information

Packaged Quantity 1

Technical information

Fibre Optic Mode Multimode
Media Type Supported Fiber Optic

Interfaces/ports

Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
Number of ST Ports 1

Media & performance

Network Technology 100Base-TX, 10Base-T

Network & communication

Ethernet Technology 100 Mbps (Fast Ethernet)

Physical characteristics

Depth 154.90mm
Form Factor Rack Mount, Rail Mount
Height 27.90mm
Width 134.60mm

Power description

Power Source DC Power

Product information

Mount Type DIN Rail Mount, Rack Mount

Miscellaneous

Environmental status Yes
Package Contents Video Transmitter/Data Transceiver DC Plug-in Power Supply

Attributes

Package Contents Video Transmitter/Data Transceiver DC Plug-in Power Supply
Power Source DC Power

Comnet FVT10D1EM digitally-encoded video transmitter

Comnet FVT10D1EM digitally-encoded video transmitter, Rack, Rail Mount

Who this is for

For the installer — this is the digitally-encoded video transmitter supplied under Comnet part number FVT10D1EM. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a digitally-encoded video transmitter made by Comnet. The part number FVT10D1EM is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this digitally-encoded video transmitter is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact digitally-encoded video transmitter I have been quoted? Check the manufacturer part number FVT10D1EM against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against FVT10D1EM answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
