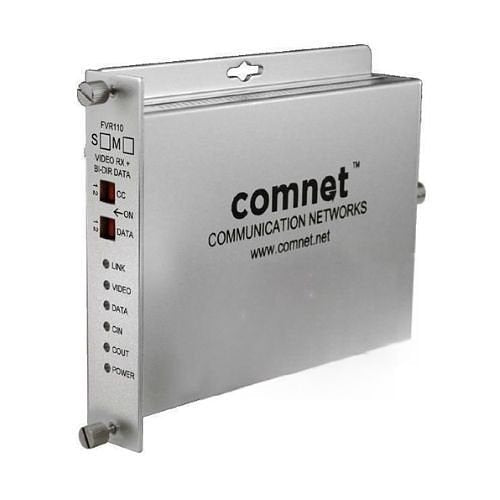

Comnet FVR110S1 encoded video receiver, Rack Mount

Free Delivery
£ 1,132 44
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Comnet FVR110S1 is an encoded video receiver from the FVT/FVR110(M,S)1[/M] range.

The Comnet FVT/FVR110 series is a video transmitter / receiver and data transceiver that supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single mode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. It also supports "up-the-coax" data transmission from all major manufacturers, utilizing time-base correction these units can achieve distances of 48km.

The FVT/FVR110 supports Panasonic Proteus, Pelco Coaxitron and Bosch Bilinx Up-the-Coax systems. The FVT110 also transmits a single bi-directional contact closure signal. Packaged in the exclusive Comnet ComFit housing, the full-size units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of Comnet model DINBKT1 adaptor plate.

Key features

  • Distances up to 48km
  • Automatic resettable fuses on all power lines
  • Status indicating LEDs provide rapid indication of critical operating parameters
  • 1 Full Duplex Data channel
  • 1 Full Duplex Contact Closure
  • Time-Based Corrected Up-the-Coax Data
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use
  • Compatible with NTSC, PAL, or SECAM Video Standards
  • 10-Bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard
  • Standard ComFit models are hot-swappable
£ 1,132 44
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,132.44 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Comnet
Manufacturer Part Number
FVR110S1
Product Series
FVT/FVR110(M,S)1[/M]
Product Type
Video Extender Receiver
General information
Packaged Quantity
1
Technical information
Connectivity Technology
Wired
Media Type Supported
Coaxial, Fiber Optic
Power Consumption
5.2500W
Interfaces/ports
Network (RJ-45)
Yes
Number of ST Ports
1
Physical characteristics
Thickness
28.00mm
Width
155.00mm
Power description
Plug/Connector Type
BNC, Terminal Block
Product information
Mount Type
Rack Mount
Miscellaneous
Environmental status
Yes
Package Contents
50/60 Hz 90-264 VAC DC Plug-in Power Supply
Attributes
Package Contents
50/60 Hz 90-264 VAC DC Plug-in Power Supply

Specifications

Brand Name Comnet
Manufacturer Part Number FVR110S1
Product Series FVT/FVR110(M,S)1[/M]
Product Type Video Extender Receiver

General information

Packaged Quantity 1

Technical information

Connectivity Technology Wired
Media Type Supported Coaxial, Fiber Optic
Power Consumption 5.2500W

Interfaces/ports

Network (RJ-45) Yes
Number of ST Ports 1

Physical characteristics

Thickness 28.00mm
Width 155.00mm

Power description

Plug/Connector Type BNC, Terminal Block

Product information

Mount Type Rack Mount

Miscellaneous

Environmental status Yes
Package Contents 50/60 Hz 90-264 VAC DC Plug-in Power Supply

Attributes

Package Contents 50/60 Hz 90-264 VAC DC Plug-in Power Supply

Comnet FVR110S1 encoded video receiver

Comnet FVR110S1 encoded video receiver, Rack Mount

Who this is for

For the installer — this is the encoded video receiver supplied under Comnet part number FVR110S1. Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is an encoded video receiver made by Comnet. The part number FVR110S1 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this encoded video receiver is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact encoded video receiver I have been quoted? Check the manufacturer part number FVR110S1 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against FVR110S1 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
