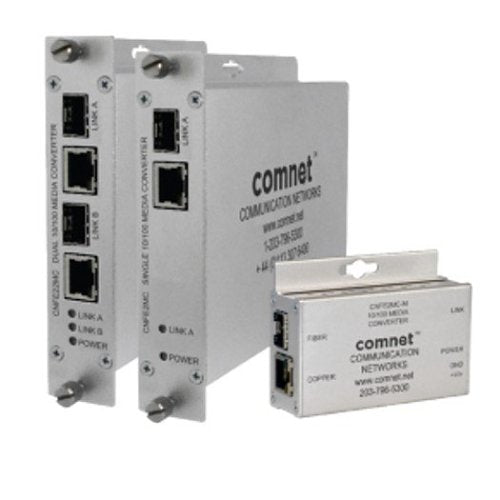

Comnet CNFE2MCAC/M ethernet media converter, DIN Rail, Rack, Wall Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet CNFE2MCAC/M is an ethernet media converter from the CNFE2MC range.
The Comnet™ Ethernet media converters are designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP options. The CNFE2MC[AC][/M] transmits and receives a single channel of Ethernet data and the CNFE22MC transmits and receives two independent channels in one unit. Both are environmentally hardened to operate in extreme temperatures.
Packaged in the exclusive Comnet ComFit housing, the CNFE2MC and CNFE22MC units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of Comnet model DINBKT1 adaptor plate. The small-size CNFE2MC/M is available for either AC or DC power.
Key features
- 10/100 Mbps Ethernet - 10/100 BASE-T/TX electrical port - 100 BASE-FX optical port
- Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
- Optical port supports 100 Mbps full duplex data
- Automatic MDI/MDI-X crossover
- Distances up to 80 km with optional SFPs
- No in-field optical adjustments required
- CNFE2MC and CNFE22MC are hot-swappable rack modules
- CNFE2MC and CNFE22MC are interchangeable between stand-alone or rack mount use – ComFit
- LED indicators provided for confirming equipment operating status
- IEEE 802.3 compliant
-
Download
- CNFE2MCAC/M — User Manual
Specifications
Technical information
I/o expansions
Interfaces/ports
Media & performance
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | CNFE2MCAC/M |
| Product Series | CNFE2MC |
| Product Type | Transceiver/Media Converter |
Technical information
| Media Type Supported | Optical Fiber, Twisted Pair |
|---|---|
| Power Consumption | 3.0000W |
I/o expansions
| Expansion Slot Type | SFP |
|---|---|
| Number of SFP Slots | 1 |
| Number of Total Expansion Slots | 1 |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of Network (RJ-45) Ports | 1 |
| Number of Ports | 1 |
Media & performance
| Network Technology | 100Base-FX, 100Base-TX, 10Base-T |
|---|
Network & communication
| Ethernet Technology | 10 Mbps (Ethernet) |
|---|
Physical characteristics
| Depth | 154.90mm |
|---|---|
| Height | 27.90mm |
| Width | 134.60mm |
Power description
| Power Source | AC Power |
|---|
Product information
| Mount Type | DIN Rail Mount, Rack Mount, Wall Mount |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Package Contents | 10/100 Mbps Ethernet Electrical to Optical Media Converter DC Plug-in Power Supply, 90-264 VAC, 50-60 Hz |
Attributes
| Package Contents | 10/100 Mbps Ethernet Electrical to Optical Media Converter DC Plug-in Power Supply, 90-264 VAC, 50-60 Hz |
|---|---|
| Power Source | AC Power |
