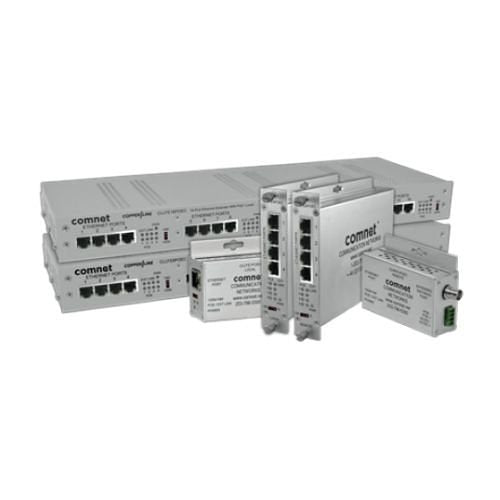

Comnet CLLFE8POEC ethernet-over-coax extender

Please note: this is a non-returnable item (excluding faulty goods)

Comnet CLLFE8POEC is an ethernet-over-coax extender from the CL(L,R)FE(X)POE(C,U) range.

The Comnet CopperLine Ethernet over copper CL(L,R)FE(X)POE(C,U) Series supports up to sixteen channels of 10/100Mbps Ethernet with PoE+ Power Injection and Pass-through PoE+ over twisted pair cable (CAT-5, UTP) or over coax. With the ability to connect directly to a PoE+ switch, or the ability to generate PoE+ power with a 48 to 56V input (Power Supply for PoE applications is sold separately) to either the Local or Remote ends, these units provide the ultimate flexibility for extending a powered device (PD) over long distance copper. A complete set includes both a Local and Remote module.

Remote units are available in small package sizes that include one or four channels, and Local modules are available in the same packages as well as a 1RU rack for larger channel counts.

Key features

• Full 10/100 Mbps Bandwidth
• Supports Multicast, Unicast and Jumbo Frame
• Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
• Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
• User-selectable data rate for maximum bandwidth and transmission distance utilization
• Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
• Transmits individual Ethernet data channels with PoE+ Power Injection or Pass-through PoE+ over standard UTP or Coaxial cable
• Status indicating LEDs provide rapid indication of critical operating parameters
• Extended Pass-through PoE meets the IEEE 802.3at standard for Power over Ethernet
• ComFit standard form factor is interchangeable between stand-alone or rack mount use
