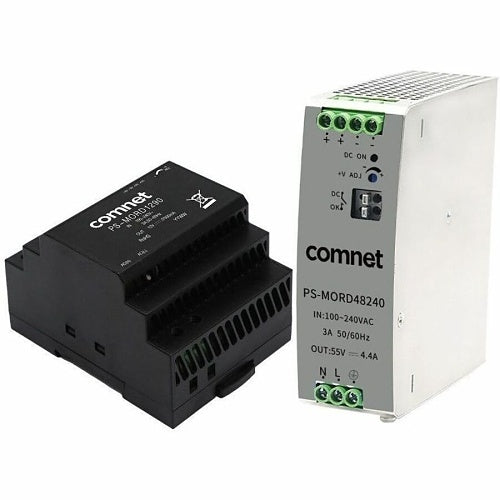

Comnet PS-MORD24100 hardened power supply, DIN Rail Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet PS-MORD24100 is a hardened power supply from the PS-MORD range.
The Comnet™ PS-MORD Series of industrial grade power supplies includes a complete range of high quality, low noise switching mode power supplies ideally suited for use with Comnet devices that require 12, 24, or 48 to 55 VDC for primary operating power. Purpose Built Professional Security
A summary fault relay is built into the 48 V DC models. These rugged units are mountable to standard 35 mm DIN rail - DIN 3 or TS-35 DIN rail of either profile - standard top hat, 7.5 mm depth (TS-35 x 7.5) or the high hat, 15 mm depth (TS-35 x 15). Each power supply is designed with output short circuit protection, over current protection, and overvoltage protection.
The wide ambient operating temperature range permits installation in most out of plant and unconditioned environments, such as those found in intelligent transportation systems or factory automation/industrial control applications. Unconditional line and load protection is provided.
Key features
- 100W DIN Rail Hardened Power Supply
- Supports 24V DC output
- Low noise switching mode power supply
- Ideal for Comnet devices requiring 12, 24, or 48-55 VDC
- Mountable to standard 35 mm DIN rail
- Includes output short circuit, over current, and overvoltage protection
- Wide ambient operating temperature range
- Suitable for intelligent transportation systems and factory automation
If you are matching this to an existing installation, work from the PS-MORD24100 part number rather than the description.
Specifications
Technical information
Physical characteristics
Power description
Product information
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | PS-MORD24100 |
| Product Series | PS-MORD |
| Product Type | Power Supply |
Technical information
| Output Voltage | 24V DC |
|---|
Physical characteristics
| Depth | 58.40mm |
|---|---|
| Height | 94.00mm |
| Weight | 272.20g |
| Width | 71.10mm |
Power description
| Output Current | 24.0000A |
|---|---|
| Output Power | 100W |
Product information
| Mount Type | DIN Rail Mount |
|---|
Attributes
| Output Current | 24.0000A |
|---|---|
| Output Voltage | 24V DC |
| Weight | 272.20g |
