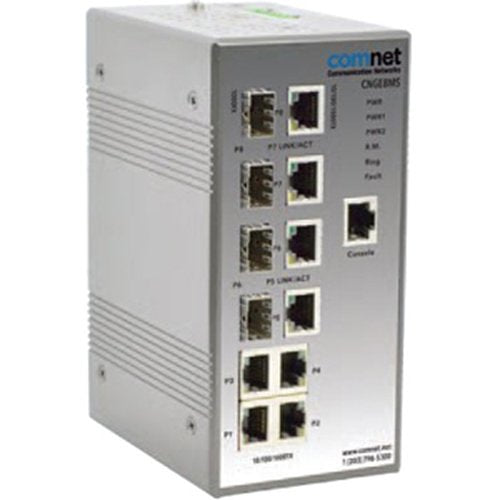

Comnet CNGE8MS managed ethernet switch, Rail, Wall Mount
Free Delivery
£
1,208
54
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet CNGE8MS is a managed ethernet switch.
The Comnet™ CNGE8MS Managed Redundant Ring Ethernet Switch provides robust transmission of four (4) 10/100/1000BASE-T(X) and four (4) gigabit combo ports. The four combo ports are 10/100/1000Mbps configurable for either CAT5-e copper, or multimode or single-mode optical fiber by the use of optional Comnet SFPs. The exclusive Comnet ComRing (C-Ring) protects mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.
Open-Vision, a powerful, easy-to-use Windows-based utility, allows the CNGE8MS to be centrally managed. Redundant DC inputs are included for uninterrupted operation in the event of a loss of operating power or a power supply failure. Diverse media selection allows for easy implementation of point-to-point, linear add-drop, drop-and-repeat, star, or true self-healing ring and mesh network system architectures.
The electrical ports support the 10/100/1000Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation. These network- managed layer 2 switches are optically (100/1000BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet device. Unlike most Ethernet switches, these environmentally hardened units are designed for direct deployment in difficult out-of-plant or roadside operating environments.
These units are DIN-Rail or wall-mountable.
Key features
- 16 Gbps Switching bandwidth: 4 × Combo Gigabit Ports - 4 × 10/100/1000T(X) Ports
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic & Port Trunking for ease of bandwidth management
- STP/RSTP/MSTP supported
- Compatible and fully functional when used in a Moxa® Turbo ring topology
- Operating Temperature: -40˚ C to +75˚ C. Functional to +85˚ C.
- Windows utility, eConsole, supports centralized management, and is web-based configurable, or by Telnet and console (CLI) ports
- Supports LLDP (Link Layer Discovery Protocol)
- Event notification through Syslog, E-mail, SNMP trap, and Relay Output
- Port lock to prevent access from unauthorized MAC address
- SNMP v1/v2c/v3 for secure network management
If you are matching this to an existing installation, work from the CNGE8MS part number rather than the description.
-
Download
- CNGE8MS — User Manual
£
1,208
54
Price
Technical Details
Specifications
Brand Name
Comnet
Manufacturer Part Number
CNGE8MS
Product Type
Ethernet Switch
Technical information
Media Type Supported
Twisted Pair
Power Consumption
25.0000W
I/o expansions
Expansion Slot Type
SFP
Number of SFP Slots
2
Number of Total Expansion Slots
2
Shared SFP Slot
Yes
Interfaces/ports
Modular
Yes
Network (RJ-45)
Yes
Total Number of Network Ports
8
Management & protocols
Manageable
Yes
Media & performance
Network Technology
1000Base-T, 100Base-TX, 10Base-T
Network & communication
Ethernet Technology
1 Gbps (Gigabit Ethernet)
Layer Supported
2
Networking Standards
IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Physical characteristics
Depth
74.40mm
Form Factor
Rail Mount, Wall Mount
Height
84.00mm
Material
Aluminum
Width
120.00mm
Power description
Input Voltage
24V DC
PoE (RJ-45) Port
No
Power Source
AC Power
Redundant Power Supply
Yes
Product information
Mount Type
DIN Rail Mount, Wall Mount
Miscellaneous
Environmental status
Yes
Features
?o Provides SSH/SSL protocol for enhanced network security, ?o VLAN (802.1Q) with VLAN Tagging and GVRP Supported, 8 10/100/1000T(X) Ports, 9k Jumbo frames supported, Designed to meet full compliance with the environmental requirements, DHCP / Client support, Event notification through Syslog, RMON, SNMP trap, and Relay Output, Fastest Redundant Ethernet Ring: ComNet X-Ring Pro, IGMP v1/v2 (IGMP snooping support) for filtering multicast traffic & Port Trunking for ease of bandwidth management, IGMP/MLP Snooping, Multicast Filtering, IPV6 internet protocol (latest version), Port Configuration, Status, Statistics, Monitoring & Security, Port lock to prevent access from unauthorized MAC address, Port Trunk Support, Q-in-Q, Quality of Service (802.1p) for real-time traffic, SMTP Client, SNMP v1/v2c/v3 for secure network management, STP/RSTP/MSTP supported, Supports LLDP (Link Layer Discovery Protocol), TCP Modbus, Web-based and Telnet configuration with support for network monitoring through ComNet eVision utility
Attributes
Features
?o Provides SSH/SSL protocol for enhanced network security, ?o VLAN (802.1Q) with VLAN Tagging and GVRP Supported, 8 10/100/1000T(X) Ports, 9k Jumbo frames supported, Designed to meet full compliance with the environmental requirements, DHCP / Client support, Event notification through Syslog, RMON, SNMP trap, and Relay Output, Fastest Redundant Ethernet Ring: ComNet X-Ring Pro, IGMP v1/v2 (IGMP snooping support) for filtering multicast traffic & Port Trunking for ease of bandwidth management, IGMP/MLP Snooping, Multicast Filtering, IPV6 internet protocol (latest version), Port Configuration, Status, Statistics, Monitoring & Security, Port lock to prevent access from unauthorized MAC address, Port Trunk Support, Q-in-Q, Quality of Service (802.1p) for real-time traffic, SMTP Client, SNMP v1/v2c/v3 for secure network management, STP/RSTP/MSTP supported, Supports LLDP (Link Layer Discovery Protocol), TCP Modbus, Web-based and Telnet configuration with support for network monitoring through ComNet eVision utility
Input Voltage
24V DC
Package Contents
8-Port Managed Gigabit Switch; ComRing Tool CD
Power Source
AC Power
Number of SFP Slots
2
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | CNGE8MS |
| Product Type | Ethernet Switch |
Technical information
| Media Type Supported | Twisted Pair |
|---|---|
| Power Consumption | 25.0000W |
I/o expansions
| Expansion Slot Type | SFP |
|---|---|
| Number of SFP Slots | 2 |
| Number of Total Expansion Slots | 2 |
| Shared SFP Slot | Yes |
Interfaces/ports
| Modular | Yes |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
Management & protocols
| Manageable | Yes |
|---|
Media & performance
| Network Technology | 1000Base-T, 100Base-TX, 10Base-T |
|---|
Network & communication
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
|---|---|
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
Physical characteristics
| Depth | 74.40mm |
|---|---|
| Form Factor | Rail Mount, Wall Mount |
| Height | 84.00mm |
| Material | Aluminum |
| Width | 120.00mm |
Power description
| Input Voltage | 24V DC |
|---|---|
| PoE (RJ-45) Port | No |
| Power Source | AC Power |
| Redundant Power Supply | Yes |
Product information
| Mount Type | DIN Rail Mount, Wall Mount |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | ?o Provides SSH/SSL protocol for enhanced network security, ?o VLAN (802.1Q) with VLAN Tagging and GVRP Supported, 8 10/100/1000T(X) Ports, 9k Jumbo frames supported, Designed to meet full compliance with the environmental requirements, DHCP / Client support, Event notification through Syslog, RMON, SNMP trap, and Relay Output, Fastest Redundant Ethernet Ring: ComNet X-Ring Pro, IGMP v1/v2 (IGMP snooping support) for filtering multicast traffic & Port Trunking for ease of bandwidth management, IGMP/MLP Snooping, Multicast Filtering, IPV6 internet protocol (latest version), Port Configuration, Status, Statistics, Monitoring & Security, Port lock to prevent access from unauthorized MAC address, Port Trunk Support, Q-in-Q, Quality of Service (802.1p) for real-time traffic, SMTP Client, SNMP v1/v2c/v3 for secure network management, STP/RSTP/MSTP supported, Supports LLDP (Link Layer Discovery Protocol), TCP Modbus, Web-based and Telnet configuration with support for network monitoring through ComNet eVision utility |
Attributes
| Features | ?o Provides SSH/SSL protocol for enhanced network security, ?o VLAN (802.1Q) with VLAN Tagging and GVRP Supported, 8 10/100/1000T(X) Ports, 9k Jumbo frames supported, Designed to meet full compliance with the environmental requirements, DHCP / Client support, Event notification through Syslog, RMON, SNMP trap, and Relay Output, Fastest Redundant Ethernet Ring: ComNet X-Ring Pro, IGMP v1/v2 (IGMP snooping support) for filtering multicast traffic & Port Trunking for ease of bandwidth management, IGMP/MLP Snooping, Multicast Filtering, IPV6 internet protocol (latest version), Port Configuration, Status, Statistics, Monitoring & Security, Port lock to prevent access from unauthorized MAC address, Port Trunk Support, Q-in-Q, Quality of Service (802.1p) for real-time traffic, SMTP Client, SNMP v1/v2c/v3 for secure network management, STP/RSTP/MSTP supported, Supports LLDP (Link Layer Discovery Protocol), TCP Modbus, Web-based and Telnet configuration with support for network monitoring through ComNet eVision utility |
|---|---|
| Input Voltage | 24V DC |
| Package Contents | 8-Port Managed Gigabit Switch; ComRing Tool CD |
| Power Source | AC Power |
| Number of SFP Slots | 2 |
