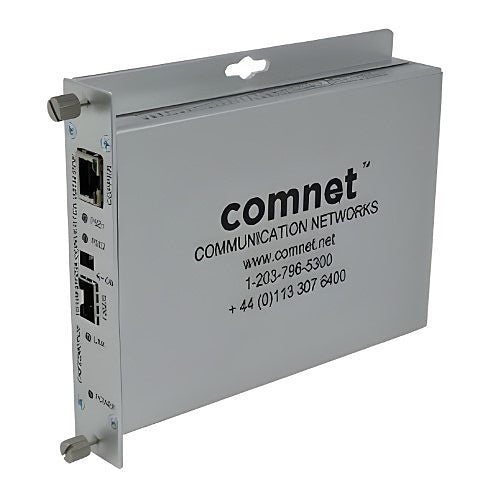

Comnet CNFE2MCPOE media converter, Desktop Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet CNFE2MCPOE is a media converter.
The Comnet CNFE2MCPOE[2,/M] Ethernet media converter is designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP* modules. These models require the ordering of sold-separately interchangeable SFP modules for fiber type, distance and connectors. The CNFE2MCPOE[2,M] transmits and receives a single channel of Ethernet data.
It also supports IEEE 802.3at as Power Sourcing Equipment (PSE) with up to 30 Watts @ 48VDC. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate.
It is environmentally hardened to operate in extreme conditions.
Key features
- 10/100 Mbps Ethernet
- 10/100 BASE-T/TX electrical port
- 100 BASE-FX optical port
- Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
- IEEE802.3at Class 1 – 4 Power over Ethernet (POE) 30W@48VDC
- Optical port supports 100 Mbps full duplex data
- Automatic MDI/MDI-X crossover
- Distances up to 80 km with optional SFPs
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Uses interchangeable SFP for fiber type, distance and connector (Ordered separately)
Specifications
General information
Technical information
I/o expansions
Interfaces/ports
Media & performance
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | CNFE2MCPOE |
| Product Type | Transceiver/Media Converter |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Fibre Optic Mode | Multimode |
|---|---|
| Maximum Distance | 80.00km |
| Media Type Supported | Optical Fiber, Twisted Pair |
I/o expansions
| Expansion Slot Type | SFP |
|---|---|
| Number of SFP Slots | 1 |
| Number of Total Expansion Slots | 1 |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of Network (RJ-45) Ports | 1 |
| Number of PoE (RJ-45) Ports | 1 |
| Number of Ports | 1 |
Media & performance
| Network Technology | 100Base-FX, 100Base-TX, 10Base-T |
|---|
Network & communication
| Ethernet Technology | 100 Mbps (Fast Ethernet) |
|---|
Physical characteristics
| Depth | 27.90mm |
|---|---|
| Height | 154.90mm |
| Width | 134.60mm |
Power description
| Plug/Connector Type | Terminal Block |
|---|---|
| Power Source | PoE (Power over Ethernet) |
Product information
| Mount Type | Desktop Mount |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Package Contents | ComFit 10/100 Mbps Ethernet Media Converter with PoE |
Attributes
| Power Source | PoE (Power over Ethernet) |
|---|---|
| Number of PoE (RJ-45) Ports | 1 |
