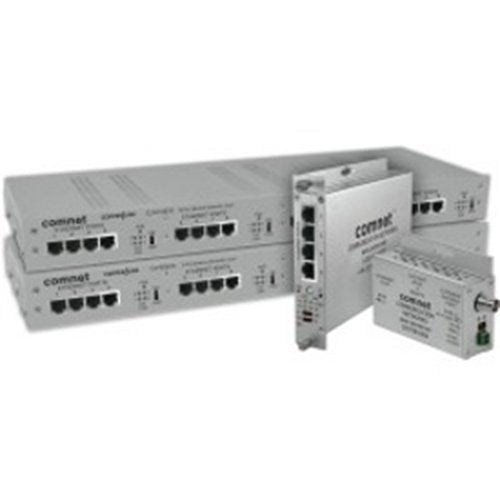

Comnet CLFE16EOC network extender, Rack Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet CLFE16EOC is a network extender from the CLFE range.
The Comnet CopperLine® Ethernet over copper line supports up to sixteen channels of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable (CAT-5, UTP), or over coaxial cable. The single channel units may be powered by a PoE switch or the included power supply. Four, eight, and sixteen channel units operate from local power.
These units provide the ultimate flexibility for extending a powered device (PD) over long distance copper. DIP switches are provided for user-selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.
Key features
- Full 10/100 Mbps Bandwidth
- Supports Multicast, Unicast and Jumbo Frame
- Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
- User-selectable data rate for maximum bandwidth and transmission distance utilization.
- Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
- Designed and manufactured in the USA
- Transmits individual Ethernet data channels with Passthrough PoE over standard UTP or Coaxial cable
- Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable
- Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
- Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
-
Download
- CLFE16EOC — Product Manual
Specifications
General information
Technical information
Environmental conditions
Interfaces/ports
Media & performance
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | CLFE16EOC |
| Product Series | CLFE |
| Product Type | Network Extender |
General information
| Maximum Transfer Distance | 1000m |
|---|
Technical information
| Maximum Data Transfer Rate | 12.5Mbps |
|---|
Environmental conditions
| Operating Relative Humidity (H-H) | 90% |
|---|---|
| Operating Temperature (T-T) | -40-75°C |
| Storage Temperature (T-T) | -40-80°C |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of Network (RJ-45) Ports | 16 |
Media & performance
| Data Transfer Rate | 100Mbps |
|---|
Network & communication
| Networking Standards | IEEE 802.3af |
|---|
Physical characteristics
| Depth | 154.00mm |
|---|---|
| Height | 44.40m |
| Width | 482.00mm |
Power description
| Input Voltage | 15V DC |
|---|---|
| Power over Ethernet (PoE) | Yes |
Product information
| Length | 154.00mm |
|---|---|
| Mount Type | Rack Mount |
Miscellaneous
| Environmental certification | CE, cULus |
|---|---|
| Environmental status | Yes |
| Package Contents | 2 x Surface Mount 2 x Wall Mouting Bracket 3 x Screw |
Attributes
| Input Voltage | 15V DC |
|---|---|
| Package Contents | 2 x Surface Mount 2 x Wall Mouting Bracket 3 x Screw |
| Operating Relative Humidity (H-H) | 90% |
