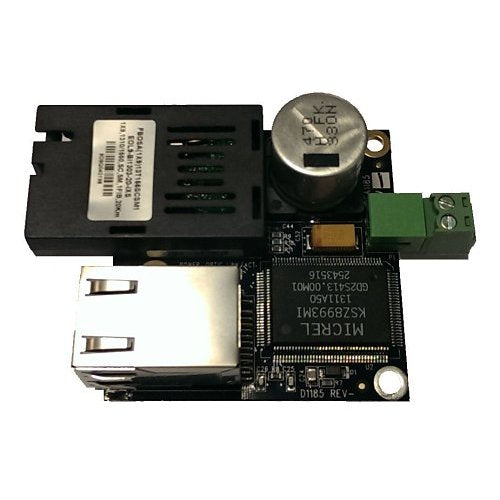

Comnet CNFE1S1A/4 transceiver/media converter, DIN Rail, Rack, Wall Mount

Free Delivery
£ 503 24
(Incl. VAT) RRP: £603.89
Save £100.65

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Comnet CNFE1S1A/4 is a transceiver/media converter from the CNFE1 range.

The Comnet Ethernet internal mounted media converters are designed to transmit and receive 10/100Mbps data over multimode or single mode optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate.

These media converters are environmentally hardened to operate in extreme temperatures. LED indicators are provided for rapidly ascertaining equipment operating status. The CNFE1/X do not have a metal enclosure and are designed to be incorporated within a device.

Key features

  • 10/100 Mbps Ethernet; 10/100 BASE-T/TX electrical port; 100 BASE-FX optical port
  • IEEE 802.3 Compliant
  • Optical port supports 100 Mbps full duplex data
  • Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data on electrical port(s)
  • ST or SC optical connectors
  • 1 Or 2 fiber design
  • Status indicating LEDs provide rapid indication of critical operating parameters
  • Distances up to 3km Multimode 20km Single Mode
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

If you are matching this to an existing installation, work from the CNFE1S1A/4 part number rather than the description.

£ 503 24
RRP: £603.89 Save £100.65
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£503.24 Incl. VAT £603.89
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Comnet
Manufacturer Part Number
CNFE1S1A/4
Product Series
CNFE1
Product Type
Transceiver/Media Converter
Technical information
Media Type Supported
Optical Fiber, Twisted Pair
Interfaces/ports
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Number of Ports
1
Number of SC Ports
1
Media & performance
Fibre Optic Wavelength
1310nm
Network Technology
100Base-FX, 100Base-TX, 10Base-T
Network & communication
Ethernet Technology
10 Mbps (Ethernet)
Physical characteristics
Depth
48.30mm
Height
27.90mm
Width
48.30mm
Power description
Plug/Connector Type
ST
Power Source
AC Power, DC Power
Product information
Mount Type
DIN Rail Mount, Rack Mount, Wall Mount
Attributes
Power Source
AC Power, DC Power

Specifications

Brand Name Comnet
Manufacturer Part Number CNFE1S1A/4
Product Series CNFE1
Product Type Transceiver/Media Converter

Technical information

Media Type Supported Optical Fiber, Twisted Pair

Interfaces/ports

Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
Number of Ports 1
Number of SC Ports 1

Media & performance

Fibre Optic Wavelength 1310nm
Network Technology 100Base-FX, 100Base-TX, 10Base-T

Network & communication

Ethernet Technology 10 Mbps (Ethernet)

Physical characteristics

Depth 48.30mm
Height 27.90mm
Width 48.30mm

Power description

Plug/Connector Type ST
Power Source AC Power, DC Power

Product information

Mount Type DIN Rail Mount, Rack Mount, Wall Mount

Attributes

Power Source AC Power, DC Power

Comnet CNFE1S1A/4 transceiver/media converter

Comnet CNFE1S1A/4 transceiver/media converter, DIN Rail, Rack, Wall Mount

Who this is for

For the installer — this is the transceiver/media converter supplied under Comnet part number CNFE1S1A/4. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a transceiver/media converter made by Comnet. The part number CNFE1S1A/4 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this transceiver/media converter is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact transceiver/media converter I have been quoted? Check the manufacturer part number CNFE1S1A/4 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Not on this listing. The documents available for it named only the wider family or a different item, and a near-miss document is a wrong document.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against CNFE1S1A/4 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
